28
CDX-GT35UW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

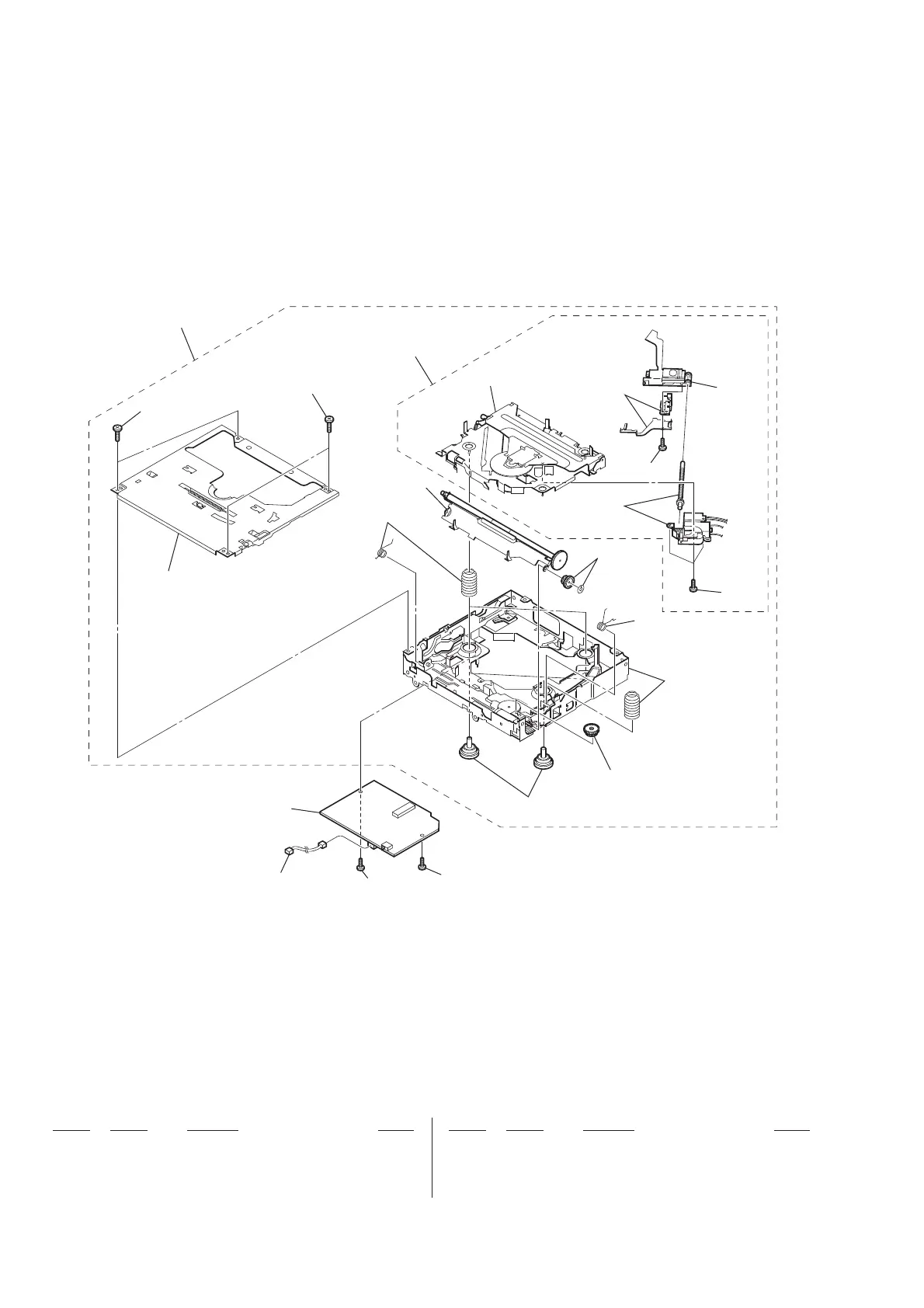

5-3. CD MECHANISM SECTION
(MG-101Y-188//Q)
101 A-1289-450-A MECHANICAL BLOCK ASSY (08)
102 A-1284-705-A DAXEV08//Q
0 103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
104 2-626-869-31 SCREW (M2X3), SERRATION
105 3-686-458-21 SCREW (P1.4), TAPPING
106 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
107 A-1555-002-A SERVO BOARD, COMPLETE
108 2-134-636-71 SCREW (M1.7X2.5)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
101
108
108
102
103
105
104
107
106
not supplied
106
