Ref. No. Part No. Description Remark
34
CDX-GT35UW
R832 1-216-833-11 METAL CHIP 10K 5% 1/10W
R833 1-216-864-11 SHORT CHIP 0
< SWITCH >
S401 1-786-826-11 SWITCH, TACTILE (RESET)
< SURGE ABSORBER >
VR1 1-805-043-11 ABSORBER, CHIP SURGE
< VIBRATOR >
X1 1-814-302-11 QUARTZ CRYSTAL UNIT (4MHz)
X401 1-814-207-21 VIBRATOR, CERAMIC (7.92MHz)
X402 1-813-202-11 VIBRATOR, CRYSTAL (32.768kHz)
*************************************************************
A-1555-002-A SERVO BOARD, COMPLETE
**********************
*************************************************************
MISCELLANEOUS
**************
6 1-833-974-11 CONNECTION CORD FOR AUTOMOBILE
(POWER)
0 103 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
FU601 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
*************************************************************
ACCESSORIES
************
1-479-077-14 REMOTE COMMANDER (RM-X151)
2-548-729-01 LID, BATTERY CASE (for RM-X151)
4-156-428-41 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
4-156-429-51 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH)
*************************************************************

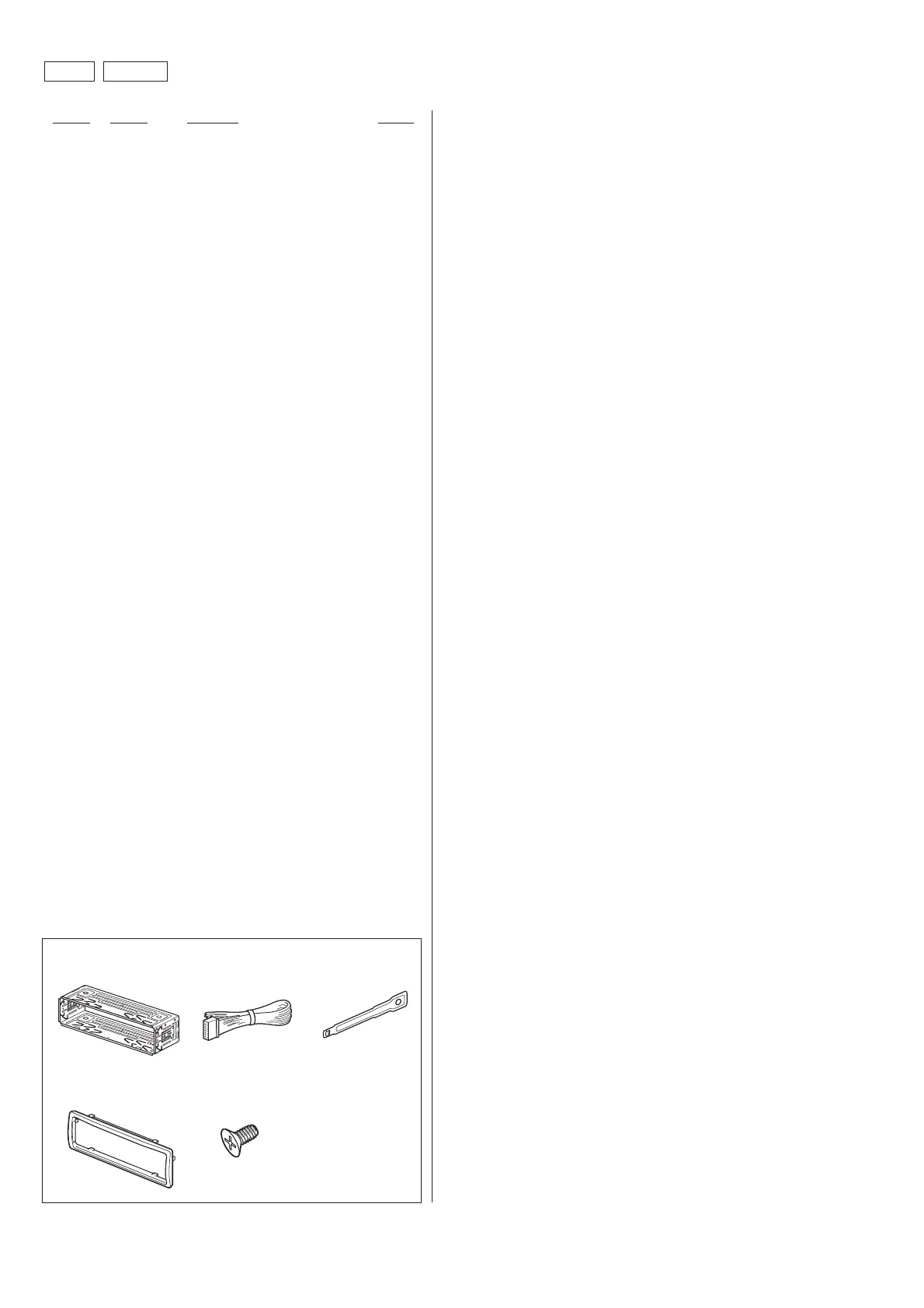

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
151 X-2548-065-1 FRAME ASSY, FITTING
152 1-833-974-11 CONNECTION CORD FOR AUTOMOBILE
(POWER)
153 3-876-675-01 KEY (FRAME)
154 3-873-543-02 COLLAR
155 3-934-325-01 SCREW, +K (5X8) TAPPING
153152
154
151
155
u2
u 4
MAIN SERVO
