CDX-GT61UMS/GT560UE/GT560UI/GT560US/GT564UI/GT610UG/GT610US/GT616UG
14

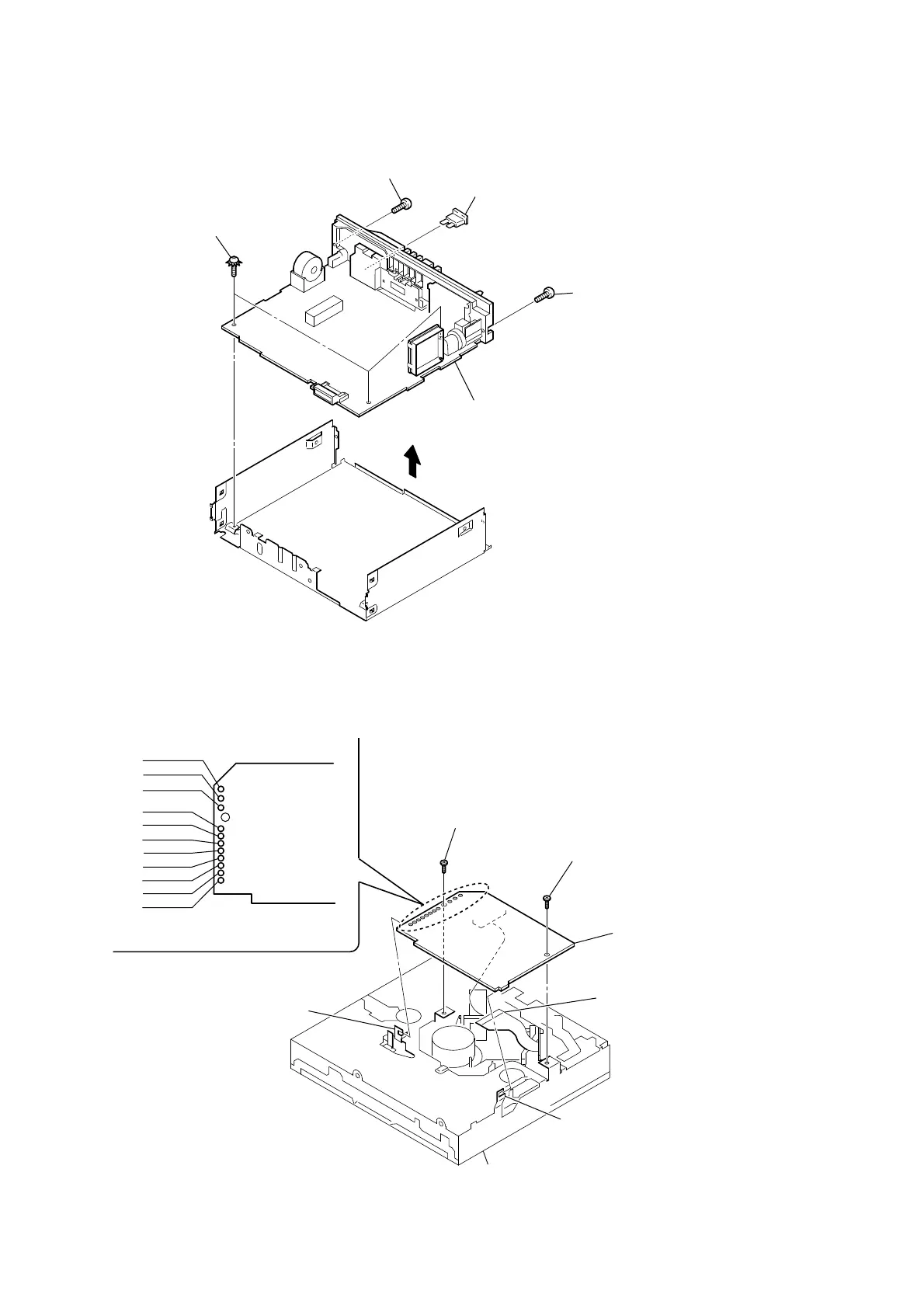

3-5. MAIN BOARD
3-6. SERVO BOARD
4
2 three ground point screws
(PTT2.6 u 6)
5 MAIN board
3 screw
(PTT2.6 u 8)
3 screw
(PTT2.6 u 8)
1 fuse (blade type) (auto fuse) (10A/32V)
(FU301)
6 SERVO board
3 claw
4 claw
SERVO board
2 toothed lock screw
(M1.7 u 2.5)
2 toothed lock screw
(M1.7 u 2.5)
1 Remove the eleven solders.
GRY
YEL
BLU
ORG
RED
BLK
RED
WHT
BLK
RED
WHT
5 optical pick-up (16 core)
(CN101)
CD mechanism deck
– bottom side view –
