41
CDX-GT61UMS/GT560UE/GT560UI/GT560US/GT564UI/GT610UG/GT610US/GT616UG

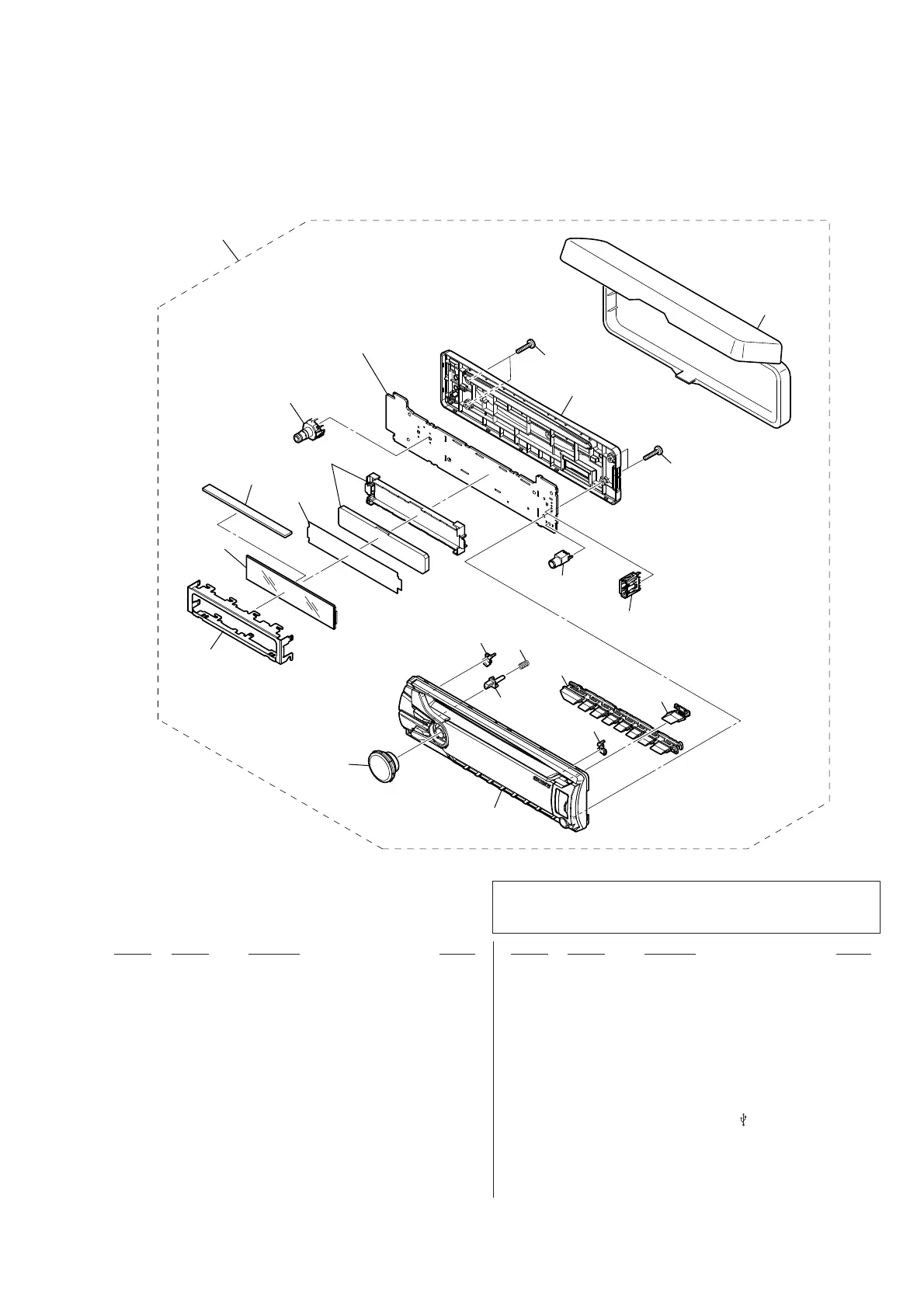

5-2. FRONT PANEL SECTION
51 4-278-076-01 BUTTON (PRESET) (PTY, 1, 2, 3, 4, 5, 6, DSPL)
52 X-2581-844-1 KNOB (VOL) (SV) ASSY
53 4-278-075-01 BUTTON (RELEASE)
54 2-639-881-01 SPRING (RELEASE)
55 1-780-789-12 CONDUCTIVE BOARD, CONNECTION
56 4-278-080-11 ILLUMINATOR (LCD)
57 4-278-217-01 PANEL, BACK
58 3-250-543-21 SCREW (+B P-TITE M2)
59 X-2187-544-4 CASE ASSY
60 A-1831-142-A PANEL OVERALL ASSY, FRONT (GT560UI: RU)
60 A-1831-143-A PANEL OVERALL ASSY, FRONT (GT560US)
60 A-1831-144-A PANEL OVERALL ASSY, FRONT (GT560UE)
60 A-1831-145-A PANEL OVERALL ASSY, FRONT
(GT610UG: E, EA, MX)
60 A-1831-146-A PANEL OVERALL ASSY, FRONT (GT610US)
60 A-1831-147-A PANEL OVERALL ASSY, FRONT (GT616UG)
60 A-1831-148-A PANEL OVERALL ASSY, FRONT (GT61UMS)
60 A-1831-149-A PANEL OVERALL ASSY, FRONT (GT610UG: AR)
60 A-1831-150-A PANEL OVERALL ASSY, FRONT (GT564UI)
60 A-1834-132-A PANEL OVERALL ASSY, FRONT
(GT560UI: AEP, UK)
61 4-278-077-01 BUTTON (EJECT) (Z)
CN902 1-822-798-11 USB CONNECTOR ( )
J901 1-842-936-11 JACK (SMALL TYPE) (DIA. 3.5) (AUX)
LCD901 1-811-435-11 DISPLAY PANEL, LIQUID CRYSTAL
RE901 1-487-023-22 ROTARY ENCODER
(PUSH ENTER/SELECT (VOLUME))
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: Refer to the servicing notes “NOTE FOR REPLACEMENT OF
THE USB CONNECTOR (CN902) AND THE AUX JACK (J901)”
(See page 5), if replacing the Ref. No. CN902 and the Ref. No. J901.
LCD901
J901
CN902
RE901
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(KEY board)
51
61
52
54
55
56
57
58
60
53
59
58
To Next Page
