CDX-R3300/R3300S
SECTION 4
EXPLODED VIEWS
Ref. No. Part No. Description Remark

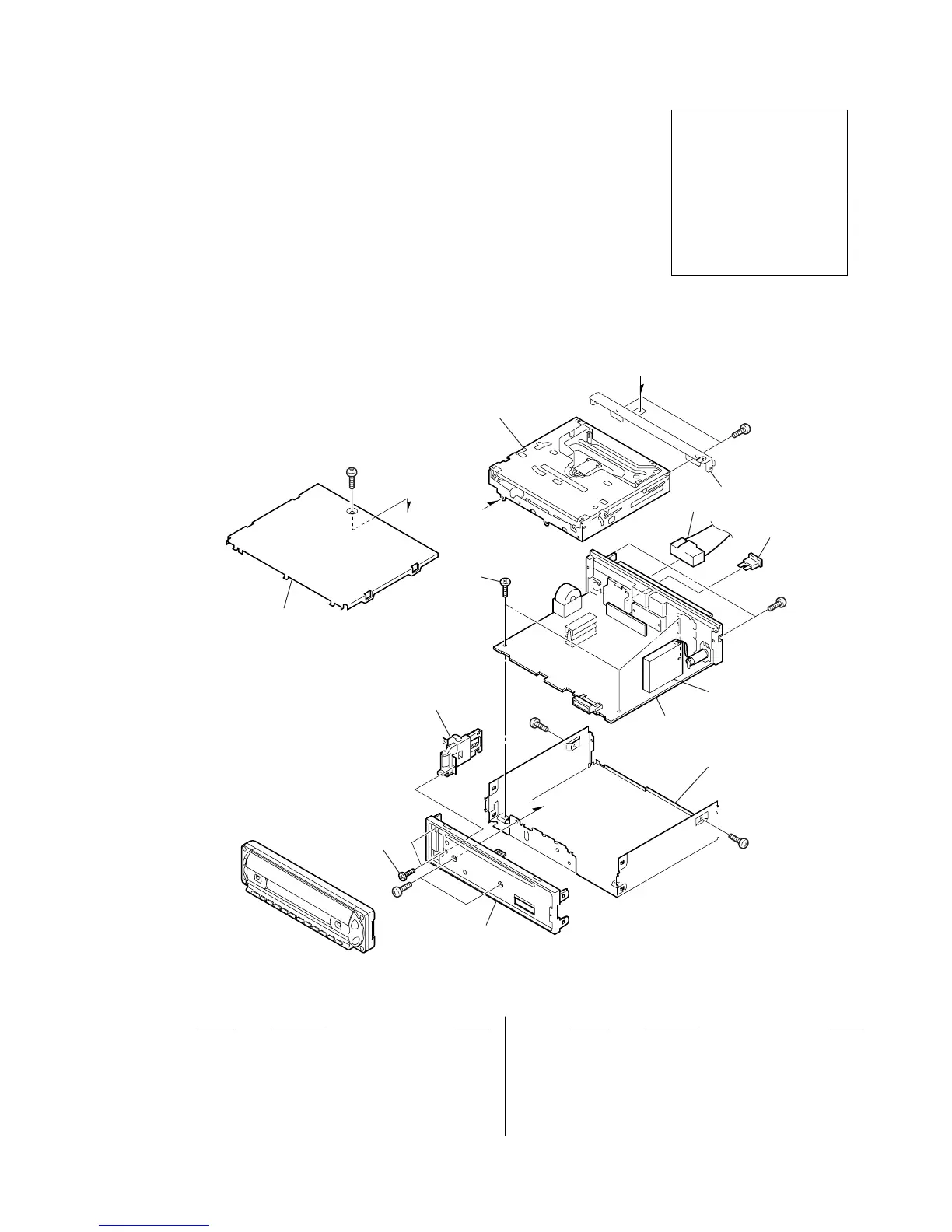

4-1. MAIN SECTION
Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
•Abbreviation
CND : Canadian model
RR
1 X-3384-407-1 PANEL (1) ASSY, SUB
23-231-472-01 SCREW (+B 2X4)
3 X-3382-588-1 LOCK ASSY (S)
* 43-246-006-31 COVER
53-922-535-11 SCREW (+BTT)
61-776-206-21 CORD (WITH CONNECTOR) (POWER)
7 A-3283-493-A MAIN BOARD, COMPLETE (US,CND)
7 A-3283-494-A MAIN BOARD, COMPLETE (E)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX601 A-3220-962-A TUNER UNIT (TUX-032)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
F901
not supplied
not supplied
#1
#1
#1
#
