34
CDX-R3300/R3300S

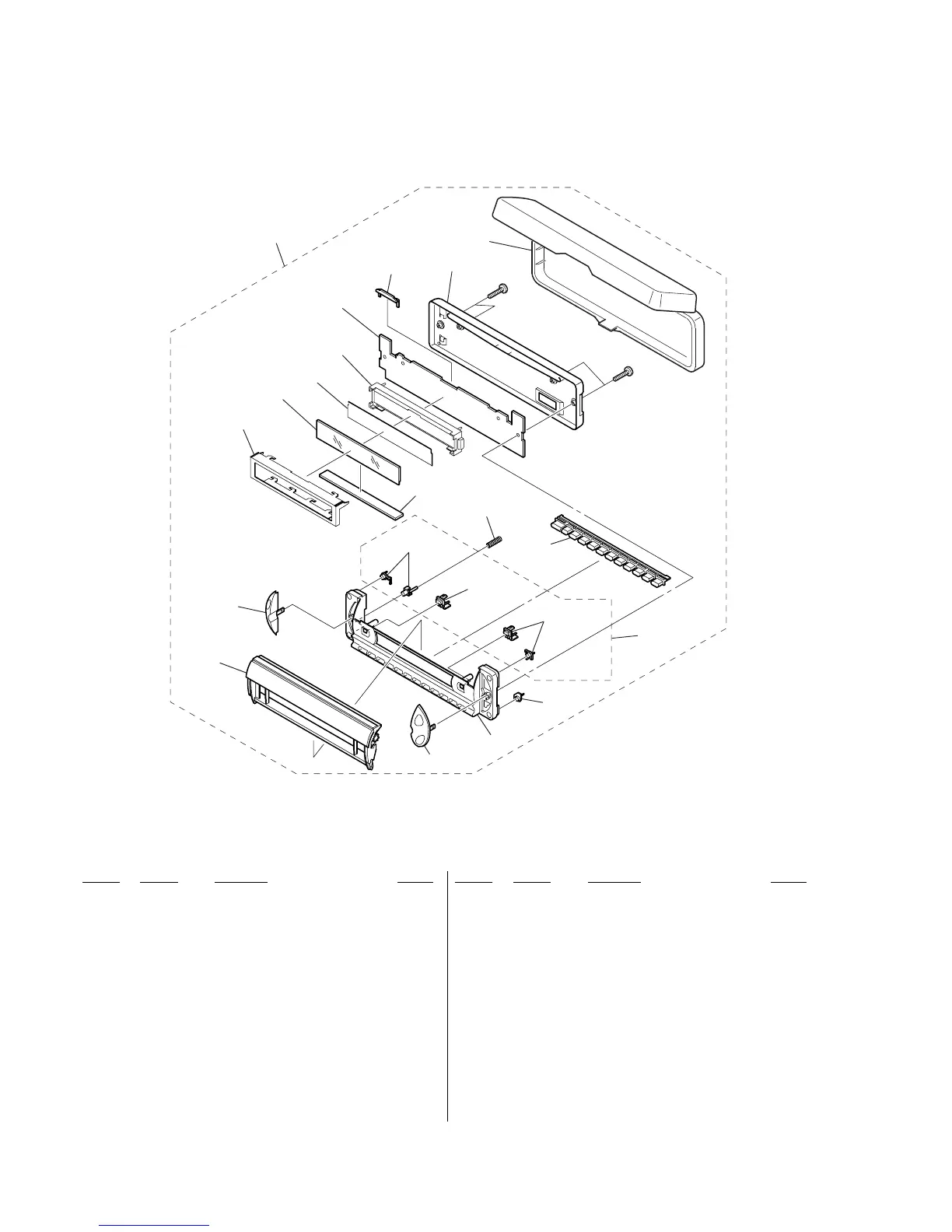

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 X-3384-620-1 PANEL (BASE) ASSY, FRONT (R3300:US,CND)
51 X-3384-629-1 PANEL (BASE) ASSY, FRONT (R3300:E)
51 X-3384-690-1 PANEL (BASE) ASSY, FRONT (R3300S)
52 3-258-879-01 FILTER (IR)
53 3-258-874-01 BUTTON (SEEK) (R3300:E)
53 3-258-874-11 BUTTON (SEEK) (R3300:US,CND/R3300S)
54 X-3384-070-1 RETRACTABLE ASSY (R3300:E)
54 X-3384-621-1 RETRACTABLE ASSY (R3300:US,CND/R3300S)
55 3-258-873-01 BUTTON (+,–) (R3300:E)
55 3-258-873-11 BUTTON (+,–) (R3300:US,CND/R3300S)
56 3-246-211-01 SPRING (RELEASE)
57 3-258-884-01 SHEET (ILLUMINATOR)
58 3-258-880-01 PLATE (CD), LIGHT GUIDE
59 3-258-869-01 PANEL, FRONT BACK
60 X-3378-390-3 CASE ASSY (for FRONT PANEL)
61 A-3372-732-A PANEL COMPLETE ASSY, FRONT
(R3300:US,CND)
61 A-3372-737-A PANEL COMPLETE ASSY, FRONT (R3300S)
61 A-3372-741-A PANEL COMPLETE ASSY, FRONT (R3300:E)
62 3-258-875-01 BUTTON (PRESET) (R3300:US,CND)
62 3-258-875-11 BUTTON (PRESET) (R3300S)
62 3-258-875-21 BUTTON (PRESET) (R3300:E)
63 X-3384-457-1 BUTTON ASSY (S) (E)
63 X-3384-618-1 BUTTON ASSY (S) (US,CND)
64 1-780-120-11 CONDUCTIVE BOARD, CONNECTION
LCD501 1-805-451-11 DISPLAY PANEL, LIQUID CRYSTAL
#3 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
LCD501
not supplied
not supplied
not supplied
not supplied
not
supplied
#3
#3
51
52
53
54
55
56
57
58
59
60
61
62
63
64
not supplied
(DISPLAY board)
To Next Page
