Sony CFD-G500 - 6-10. Printed Wiring Board - Main Section

2626
CFD-G500/G500L

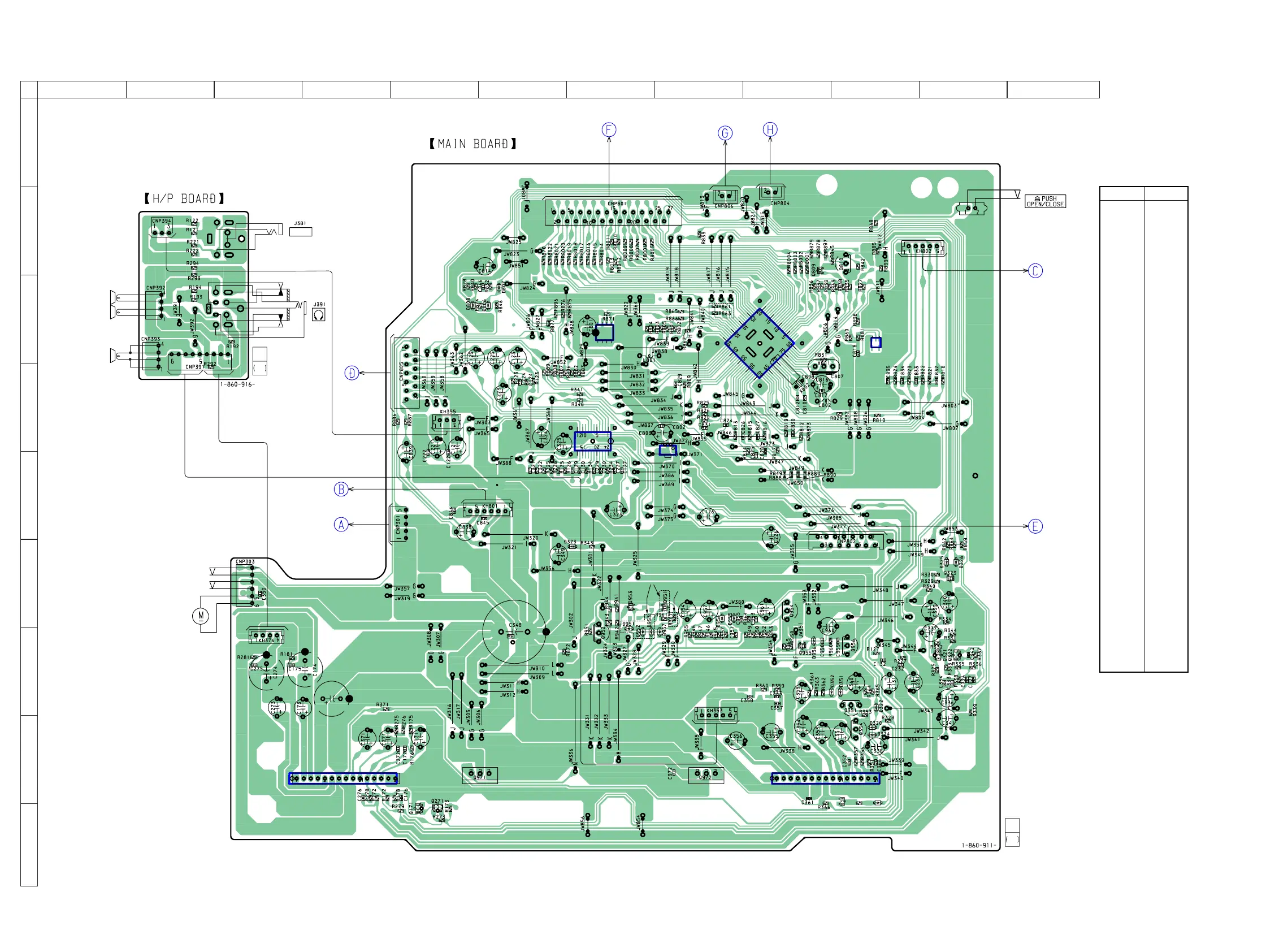

6-10. PRINTED WIRING BOARD — MAIN SECTION —
• Refer to page 15 for Circuit Boards Location.
IC351IC371
IC321
IC803
IC805
IC801
IC802
CONTROL 2
BOARD
CNP403
LCD
BOARD
CN801
CONTROL 1
BOARD
CN401
S801
TUNER
BOARD
CNP1
CD
BOARD
CNP702
CAPSTAN/REEL
MOTOR
M971
S971
PLAY
S972
MOTOR
PRE
BOARD
CN303
TUNER
BOARD
CNP1
POWER
BOARD
KH903
SP191
(L-CH)
SP192
(R-CH)
SPEAKER
SP393
(WOOFER)
LINE IN
8
5
4
1
12
A
B
C
D
E
F
G
H
I
3456789101112
CNJ851
AEP,UK,CET
EXCEPT US,E
US,E
13
12
12
Q352
R326
D321
C346
12
12
• Semiconductor
Location
Ref. No. Location
D320 H-10
D321 I-10
D322 H-10
D323 F-7
D324 H-10
D325 F-11
D326 F-11
D351 G-10
D352 G-10
D806 C-6
D807 C-6
D808 C-5
D951 G-7
D952 G-7
D953 G-7
D954 F-8
D955 F-8
D956 F-9
D957 G-8
IC321 D-7
IC351 H-9
IC371 H-9
IC801 C-9
IC802 D-8
IC803 C-7
IC805 C-10
Q171 I-5
Q271 I-5
Q321 G-11
Q322 G-11
Q323 F-11
Q351 G-10
Q352 I-10
Q354 H-10
Q809 B-9
Q810 B-10
Q951 F-8
Q952 G-7
Q953 F-7
Q954 F-9
Q955 G-9
Q956 G-10
Q971 H-6
Q972 H-8
(Page 29)
(Page 29)
(Page 29)
(Page 20)
(Page 22)
(Page 18)
(Page 24)
(Page 30)
(Page 20)(Page 22)
