Sony CFD-G500 - Section 7 Exploded Views; 7-1. Overall Section

36
CFD-G500/G500L
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS:Australian model
CND : Canadian model
SP : Singapore model
CET : East European and Russian models
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-264-875-01 LID, BATTERY
2 3-264-873-01 HANDLE
3 3-254-143-01 SCREW (B3), (+) BV TAPPING
4 3-254-145-11 SCREW (B3), (+) BV TAPPING
SP191 1-544-790-11 SPEAKER (10cm)
SP291 1-544-790-11 SPEAKER (10cm)
SP393 1-825-767-11 SPEAKER (10cm)(WOOFER)

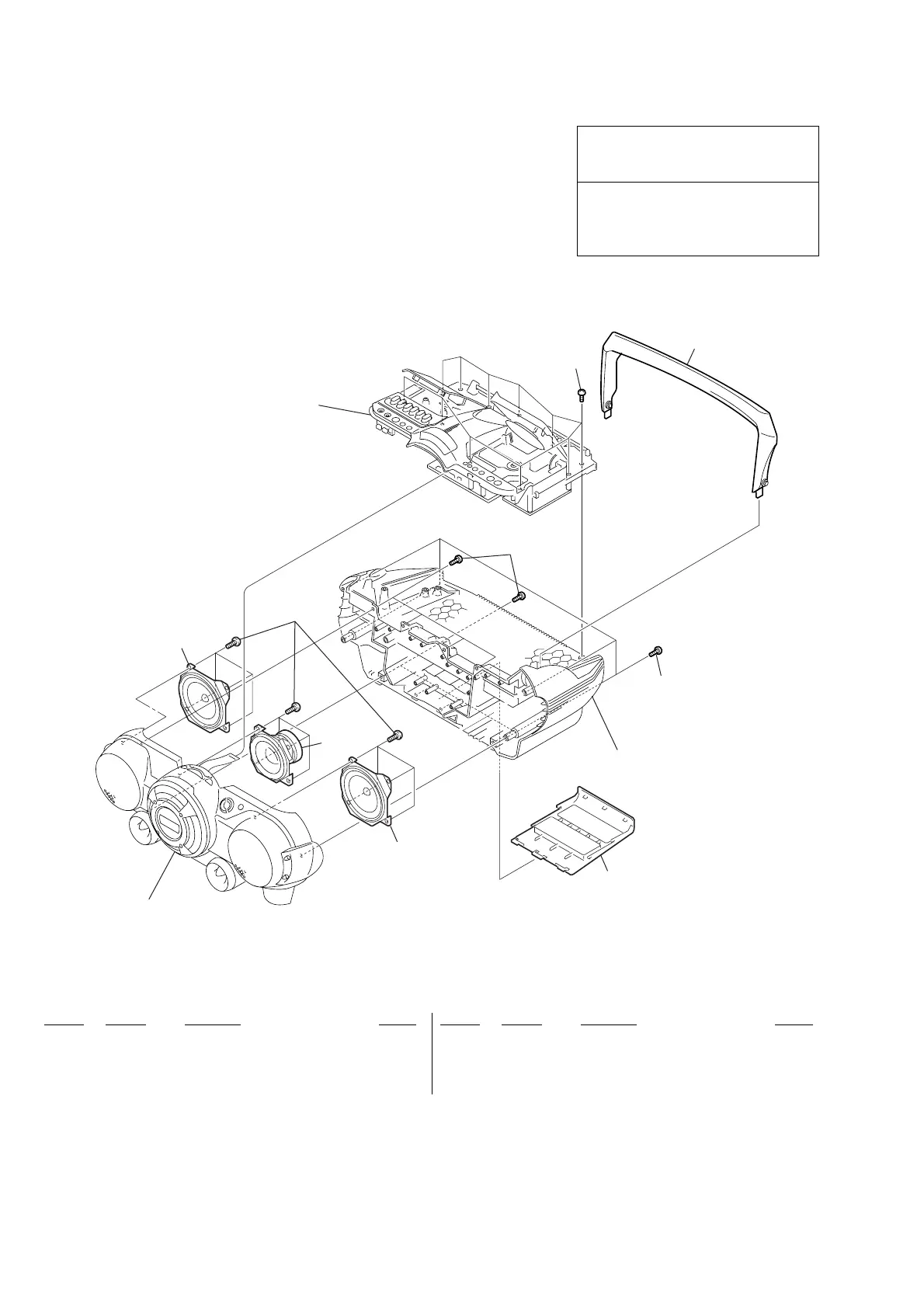

7-1. OVERALL SECTION
1
2
4
4
4
3
cabinet (upper) section
cabinet (front) section
cabinet (rear) section
SP191
SP393
SP291
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
