39
CFD-S03CP/S03CPL
SECTION 7
EXPLODED VIEWS
12-654-054-01 LID, BATTERY (GRAY)...(GRAY,SILVER)
(CND,E41,E92,AUS,KR,MX,SP,AR,TH,TW,CET)
12-654-054-11 LID, BATTERY (LIGHT GRAY)...(SILVER)
(AEP,UK,CET,IT)
23-252-833-01 SCREW (M3), (+) P
33-252-827-01 SCREW (B2.6), (+) BV TAPPING
4 A-1157-013-A BATTERY-1 BOARD, COMPLETE
53-229-975-01 SPRING, BATTERY (–)
63-252-540-01 SPRING (+.–), BATTERY
72-654-073-01 TERMINAL, ANTENNA
8 A-1157-012-A BATTERY-2 BOARD, COMPLETE
9 A-1157-015-A POWER BOARD, COMPLETE (E92,MX)
9 A-1157-362-A POWER BOARD, COMPLETE
(EXCEPT CND,E92,MX,TW)
9 A-1157-370-A POWER BOARD, COMPLETE (CND)
9 A-1157-380-A POWER BOARD, COMPLETE (TW)
10 2-654-040-02 CABINET (REAR) (GRAY)...(GRAY,SILVER)
(CND,E41,E92,AUS,KR,MX,SP,AR,TH,TW,CET)
10 2-654-040-32 CABINET (REAR) (LIGHT GRAY)...(SILVER)
(AEP,UK,CET,IT)
11 3-831-441-99 SHEET (1)
ANT2 1-754-376-11 ANTENNA, TELESCOPIC (FM)
0F902 1-533-468-12 FUSE, GLASS TUBE (DIA. 5) (T2AL/250V)
0T901 1-443-861-11 TRANSFORMER, POWER
(EXCEPT CND,E92,MX,TW)
0T901 1-443-871-11 TRANSFORMER, POWER (CND,E92,MX,TW)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
•Abbreviation
CND : Canadian model
CET : East European & Russian model
E41 : AC 230V area in E model
E92 : AC 120V area in E model
AUS: Australian model
KR : Korea model
MX : Mexican model
SP : Singapore model
IT : Italian model
AR : Argentina model
TH : Thai model
TW : Taiwan model

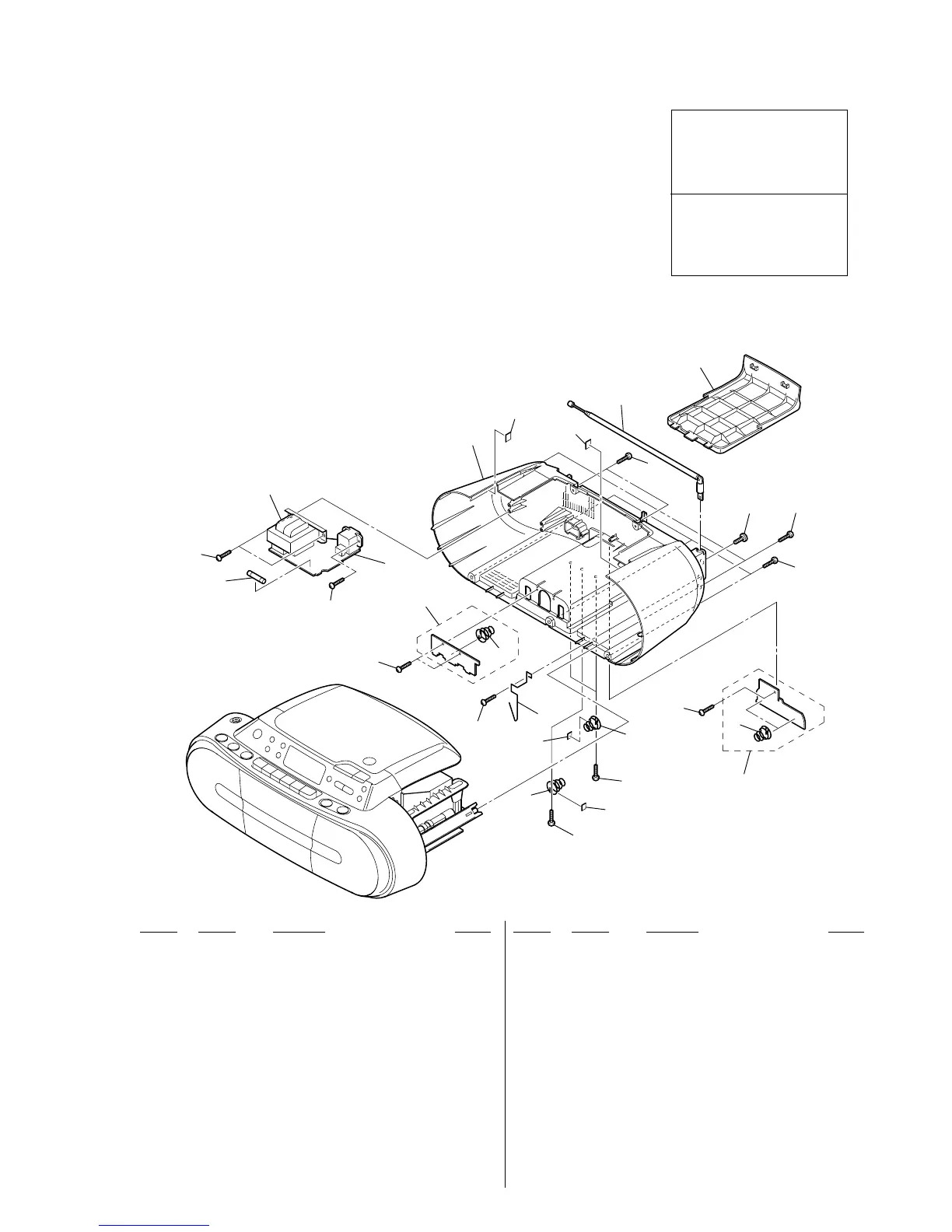

7-1. REAR CABINET SECTION
RR
ANT2
T901
F902
4
5
3
3
3
3
3
3
3
3
3
3
7
8
5
9
1
2
10
11
11
11
11
6
6
Ver. 1.3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
