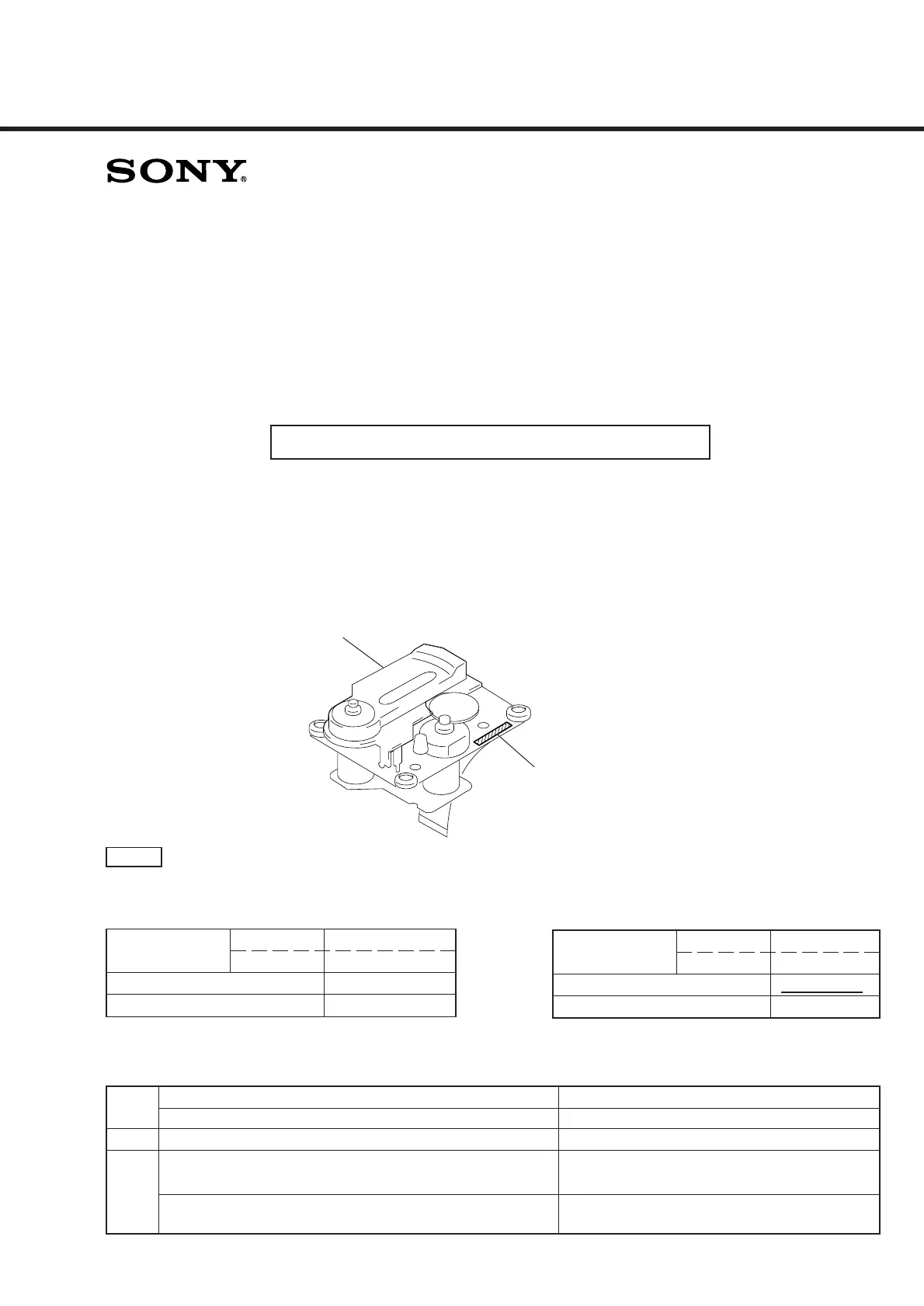

Ver 1.0 1998. 08
CFD-V10
SERVICE MANUAL
SUPPLEMENT - 2
File this Supplement with the Service Manual and Supplement-1.
Subject : CHANGE OF OPTICAL PICK-UP BLOCK
(ECN-RC800385)
Australian Model
E Model
Tourist Model
Model Name Using CD Section NEW
Similar Mechanism Tape Section NEW
Optical Pick-up Type KSM-213CAM/C1NP
Tape Transport Mechanism Type MF-V10-117
Model Name Using CD Section NEW
Similar Mechanism Tape Section NEW
Optical Pick-up Type KSM-213CDM
Tape Transport Mechanism Type MF-V10-117
New TypeFormer Type
÷
!
: changed portion
r
Optical pick-up block change
Since the new chassis assy (MB) (RP), motor (including M702) and chucking plate are not compatible with the former ones, when
replacing either of these parts, replace them with the same version.
How to distinguish the sets
You can distinguish the sets by the type name printed on the optical pick-up block.
Former Type : KSM-213CAM
New Type : KSM-213CD
Optical pick-up
Page 1
$
DIFFERENCE PARTS LIST
Ref. No. Part No. Description Remark Part No. Description Remark
Page
Former Type New Type
18 55 3-923-498-01 PLATE, CHUCK
8-6. OPTICAL PICK-UP SECTION
(KSM-213CAM)
22, 27
255 X-2625-770-1 CHASSIS ASSY (MB) (RP), MOTOR
(INCLUDING M702) (SPINDLE)
3-019-395-01 PLATE, CHUCKING
8-6. OPTICAL PICK-UP SECTION
(KSM-213CDM)
X-2626-202-1 CHASSIS ASSY (MB) (RP), MOTOR
(INCLUDING M702) (SPINDLE)
(Supplement-1 See page 18, 22, 27 )
