Sony CFM-20

CFM-20
17
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

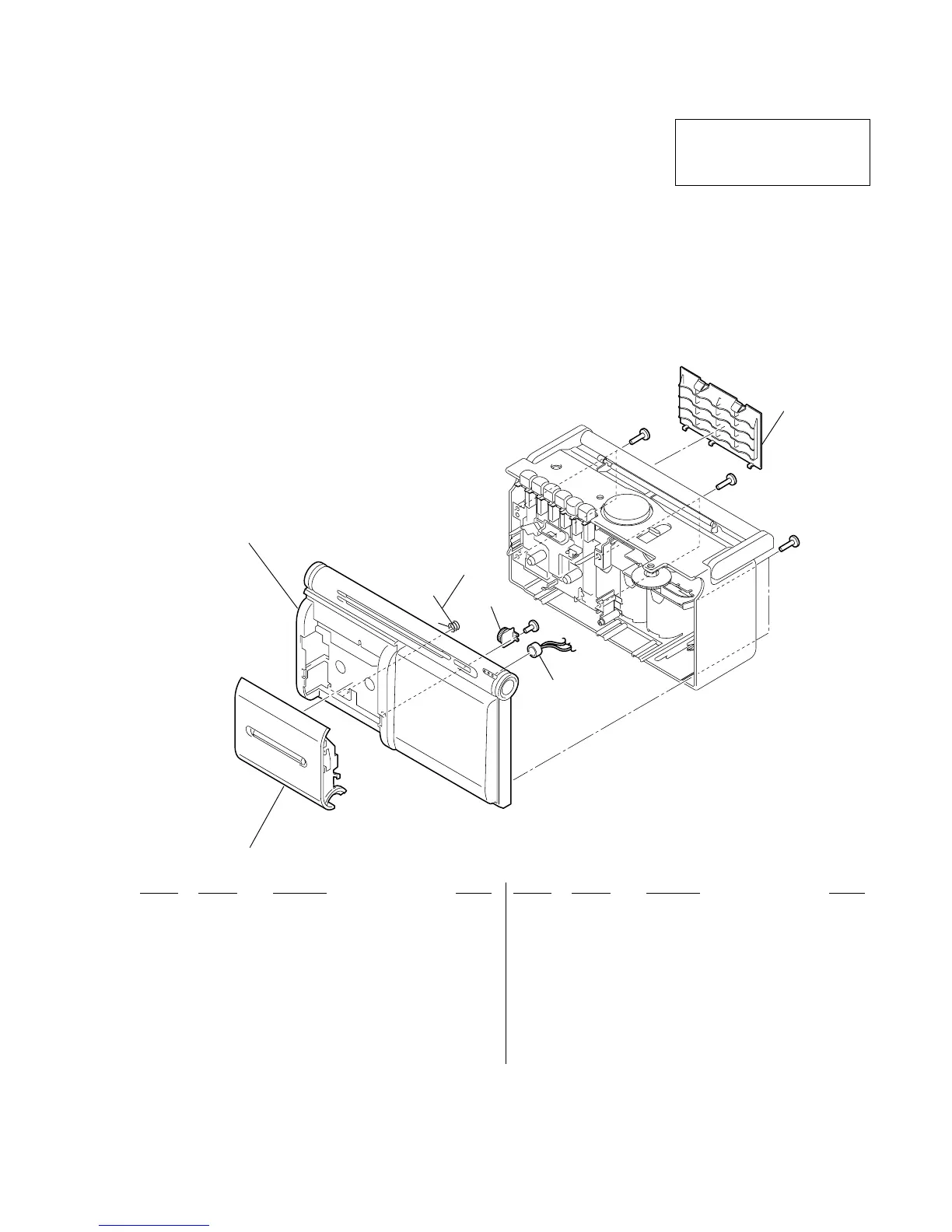

5-1. FRONT CABINET SECTION
• Abbreviation
SP :Singapore
HK :Hong Kong
AR :Argentina
MX :Mexican
IT :Italian
TW :Taiwan
C&SA :Central and South America
CET :East European & Russian
#2
#1
#1
#1
2
ECM101
3
5
4
1
1 X-3380-636-1 LID, CSSETTE SUB ASSY...(BLACK)
(C&SA,SP,MX,AR,TW)
1 X-3380-637-1 LID, CSSETTE SUB ASSY...(SILVER)
(AEP,UK,IT,CET,HK)
2 X-3380-915-1 CABINET (FRONT) SUB ASSY
(INCLUDING SP101)...(BLACK)(C&SA,MX,TW)
2 X-3380-916-1 CABINET (FRONT) SUB ASSY
(INCLUDING SP101)...(SILVER)(AEP,UK,CET)
2 X-3380-917-1 CABINET (FRONT) SUB ASSY
(INCLUDING SP101)...(BLACK)(AR,SP)
2 X-3380-918-1 CABINET (FRONT) SUB ASSY
(INCLUDING SP101)...(SILVER)(IT)
2 X-3380-919-1 CABINET (FRONT) SUB ASSY
(INCLUDING SP101)...(SILVER)(HK)
3 3-226-062-01 SPRING (CAS)
4 3-922-112-21 DAMPER
5 3-226-026-01 LID, BATT...(BLACK)(C&SA,MX,TW)
5 3-226-026-11 LID, BATT...(BLACK)(AR,SP)
5 3-226-026-31 LID, BATT...(SILVER)(AEP,UK,IT,CET,HK)
ECM101 1-542-118-11 MICROPHONE, ELECTRET CONDENSER
