Sony CFM-20

6
CFM-20

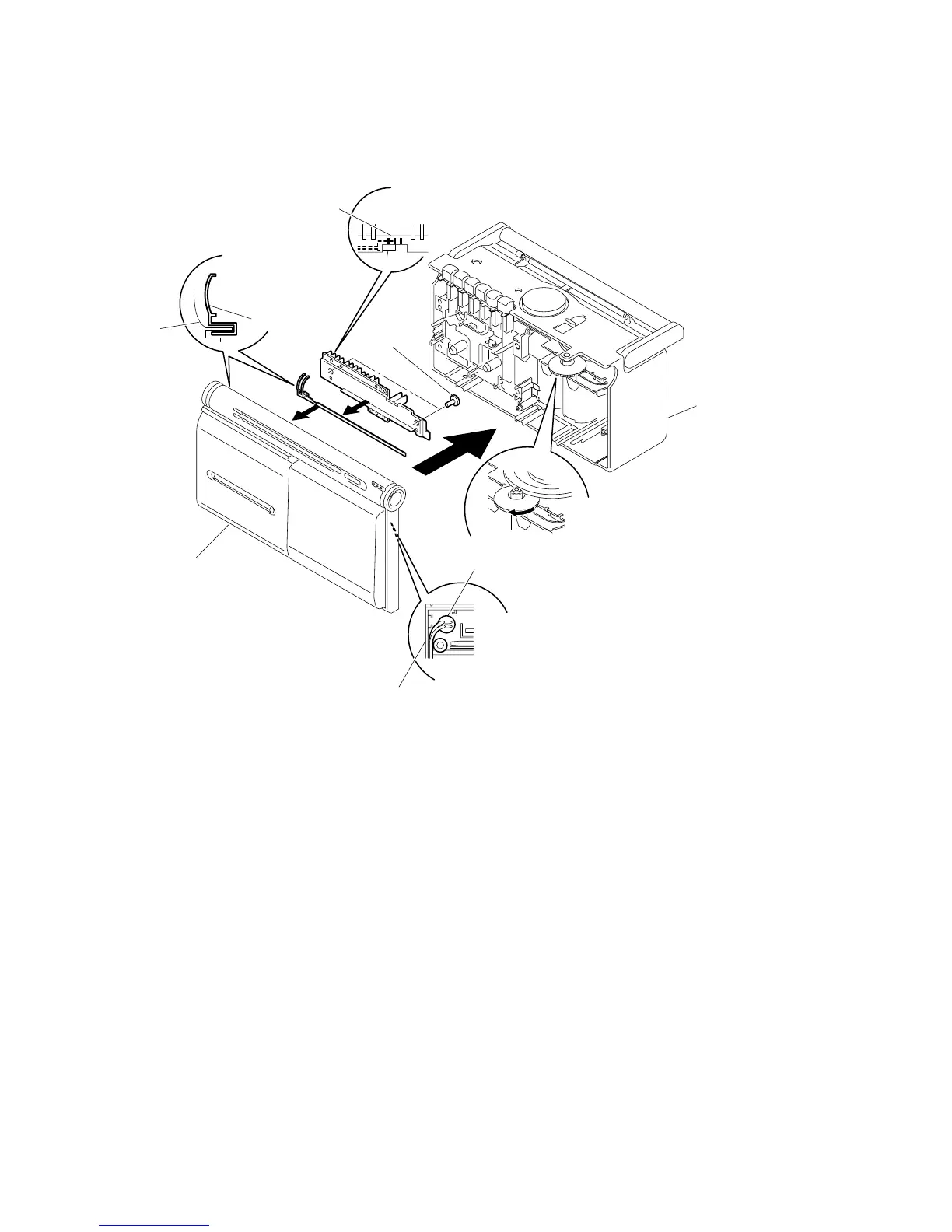

• DIAL POINTER SETTING
1
2
5
7
Cabinet (front)
Pointer
Cabinet (front)
ECM101
Set the leads from microphone(ECM101)
as shown in the figure.
Set Pointer to "Cabinet
(front)" as shown in the
figure.
4 Set the right side edge
of Pointer to the center
of three scratched lines
on Back plate.
3
Screws
6
Turn knob (tuner) fully in the
direction of the arrow as shown
in the figure.
Cabinet (rear) ASS
Y
Cabinet (front)
(+BVTP 3X10)
Pointer
Back plate
Note : Follow the installation procedure in the numerical order given.
