8
CFM-20
FM Section
Function switch (S101) : FM
Volume : MIN

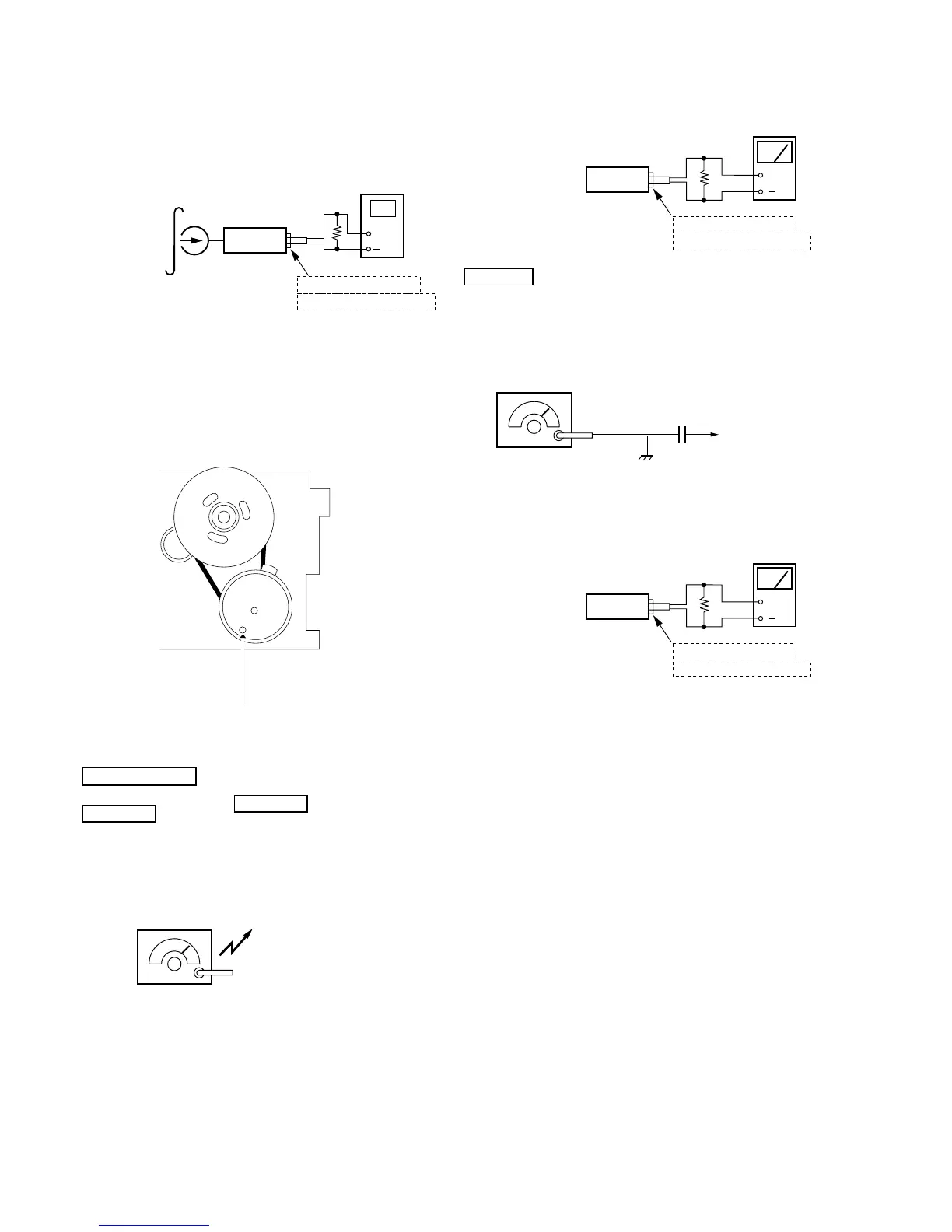

Tape Speed Adjustment
Procedure :
Mode : Playback
Adjustment Value :3,000Hz
Standard Value :2,960 to 3,040Hz
Frequency difference between the beginning and the end of the tape
should be within 1.0% (30Hz).
Adjustment Location :
TUNER SECTION
AM Section
Function switch (S101) : AM
Volume : MIN
0dB=1µV
set
test tape
WS-48B
(3kHz, 0dB)
digital frequency
counter
J101 (Earphone jack)AEP, UK, CET, IT, AR, HK, SP modelt
C&SA, MX, TW model t
KH102 (Speaker output)
Speaker output:12Ω
Earphone jack:8Ω
+
tape speed adjustment
control inside motor
AM RF signal
generator
30% amplitude modulation by 400Hz
signal.
Output level : as low as possible
Put the lead-wire
antenna close to
the set.
set
+
level meter
J101 (Earphone jack)AEP, UK, CET, IT, AR, HK, SP modelt
C&SA, MX, TW model t
KH102 (Speaker output)
Speaker output:12Ω
Earphone jack:8Ω
set
+
level meter
J101 (Earphone jack)AEP, UK, CET, IT, AR, HK, SP modelt
C&SA, MX, TW model t
KH102 (Speaker output)
Speaker output:12Ω
Earphone jack:8Ω
FM RF signal
generator
75kHz frequency deviation by
1kHz signal.
Output level : as low as possible
telescopi
