5-14

5-15 5-16

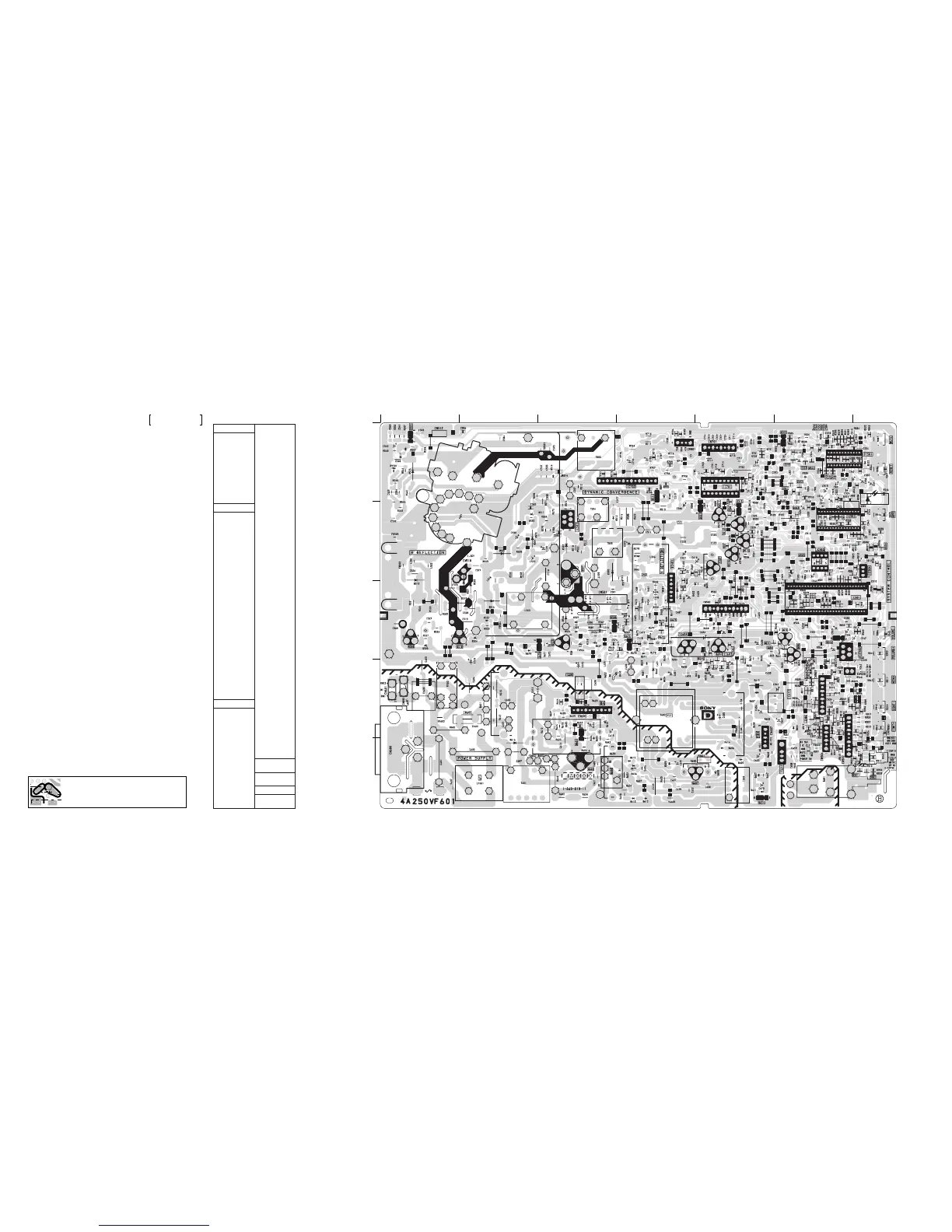

• D BOARD

SEMICONDUCTOR LOCATION

IC401 B-4

IC501 A-6

IC502 C-6

IC503 B-3

IC602 B-5

IC603 C-5

IC604 C-4

IC605 D-3

IC611 E-6

IC612 D-6

IC900 D-6

IC901 C-6

IC904 B-7

IC905 B-6

TRANSISTOR

Q501 A-6 1

Q502 A-6 1

Q503 C-1 –

Q504 A-1 –

Q505 A-6 –

Q506 C-6 –

Q507 B-3 –

Q508 C-3 –

Q509 A-6 1

Q510 C-1 –

Q511 A-4 –

Q512 B-5 –

Q515 B-5 –

Q516 B-5 –

Q517 B-5 –

Q518 B-5 –

Q520 C-3 –

Q521 B-5 –

Q522 A-6 1

Q523 A-6 1

Q601 E-3 –

Q602 E-3 –

Q603 D-5 1

Q604 D-5 1

Q605 D-5 1

Q606 C-6 –

Q607 E-4 –

Q608 E-3 –

Q609 C-6 1

Q610 C-6 –

Q611 C-5 1

Q670 C-3 –

Q671 C-4 –

Q672 C-4 1

Q673 C-4 1

Q901 E-7 1

Q902 E-7 1

Q903 B-6 1

Q904 B-7 1

Q905 B-6 1

DIODE

D401 C-4 –

D402 C-4 –

D403 B-5 3

D404 C-4 3

D405 C-5 –

D501 A-4 –

D502 B-3 –

D503 B-5 –

D504 C-2 –

D506 C-3 –

D507 C-4 –

D508 A-6 –

D509 C-1 –

D510 C-2 –

D511 B-2 –

D512 B-3 –

D513 C-1 –

D514 A-3 –

D515 A-1 –

D516 C-2 –

D517 A-1 –

D518 C-3 –

D520 C-2 –

D521 C-2 –

D522 A-7 –

D523 A-7 –

D524 C-3 –

D525 C-3 –

D527 C-3 –

D550 B-2 –

D551 B-2 –

D601 D-2 –

D602 E-3 –

D603 E-3 –

D604 D-6 –

D605 E-5 3

D606 E-5 –

D607 E-5 –

D608 E-5 –

D609 E-4 –

D611 E-5 –

D612 E-4 –

D613 E-4 –

D614 E-4 –

D615 E-4 –

D618 B-5 3

D619 E-6 3

D621 E-6 3

D622 D-5 3

D623 D-5 3

D624 D-6 3

D650 D-4 –

D651 D-4 –

D652 D-3 –

D653 D-4 –

D654 D-4 –

D655 D-5 –

D656 D-5 –

D657 D-5 –

D658 D-5 –

D662 D-4 –

D670 C-2 –

D671 C-4 –

D901 E-7 3

D902 C-6 3

D903 D-6 3

D904 D-6 3

D905 D-7 3

D906 D-7 3

D907 E-6 3

D908 D-6 3

D909 D-6 3

D910 D-6 3

D911 D-6 3

D912 E-7 –

D914 D-6 3

D915 D-6 3

D916 D-6 3

D917 D-6 3

D918 D-6 3

D919 C-6 3

D920 B-7 –

D922 D-6 3

D924 C-6 3

D925 C-6 3

D928 C-6 3

D929 C-6 3

D932 C-6 3

D933 C-6 3

D934 B-6 3

D935 D-6 3

D936 E-7 3

D937 E-7 3

D938 A-7 –

D939 A-6 –

VARIABLE

RESISTOR

RV501 A-1

CRYSTAL

X901 B-6

X902 B-7

: Refer to Terminal name of semiconductors

in silk screen printed circuit (see page 5-7

)

NOTE:

The circuit indicated as left contains high voltage of over

600 Vp-p. Care must be paid to prevent an electric shock in

inspection or repairing.

— D BOARD —

(d)

POWER, DEFLECTION

MICRO-CONTROLLER

1234567
