CPD-E200
SECTION 6
EXPLODED VIEWS
Note:
The components identified by shading
and mark
¡¡
¡¡
¡
are critical for safety.
Replace only with part number specified.
• Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
• The component parts of an assembly are
indicated by the reference numbers in the
remarks column.
• Items marked " * " are not stocked
since they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
REF.NO. PART NO. DESCRIPTION REMARK
1 X-4036-851-1 BEZEL ASSY 2-5
2 3-653-339-21 SPRING, COMPRESSION
3 4-071-152-01 BUTTON, POWER
4 * 4-071-154-01 BUTTON, RESET
5 4-071-153-01 GUIDE, LIGHT
6 4-071-155-01 BUTTON, MENU
7 * A-1372-633-A H BOARD, MOUNTED
8 * 4-071-145-01 BRACKET, H
9
!
8-738-550-61 ITC ASSY, 17TKB-R1
10
!
1-452-923-41 NECK ASSY (NA-2915)
11 4-040-897-01 SPACER, DY
12 3-704-372-31 HOLDER, HV CABLE
13 * A-1346-853-A D BOARD, COMPLETE
14
!
1-453-311-11 TRANSFORMER ASSY, FLYBACK (NX-4404//X4L4)
15 4-071-146-01 CAP, POWER
16 7-685-648-79 SCREW +BVTP 3x12 TYPE IT-3
17 * 4-045-131-01 STOPPER, CABLE
18 * 1-790-038-21 CABLE ASSY (15P D-SUB)
REF.NO. PART NO. DESCRIPTION REMARK
19 * A-1294-733-A A BOARD, COMPLETE
20 * 4-061-573-01 SPRING, TENSION
21
!
1-419-092-11 COIL, DEGAUSSING
22 4-371-521-01 BAND (L), DEGAUSSING COIL
23 4-045-123-01 HOLDER, DEGAUSSING COIL
24 4-365-808-01 SCREW (5), TAPPING
25 * 4-071-147-01 CABINET
26 * 4-071-143-01 LABEL, INFORMATION
27 * 4-071-156-01 COVER, CABLE
28 * 4-071-057-01 HOLDER, CABLE
29 4-071-150-01 STOPPER, A
30 4-071-149-01 SLIDER
31 X-4036-850-1 BASE ASSY, STAND 29, 30, 32
32 4-060-533-01 CUSHION
33 1-452-032-00 MAGNET, DISC

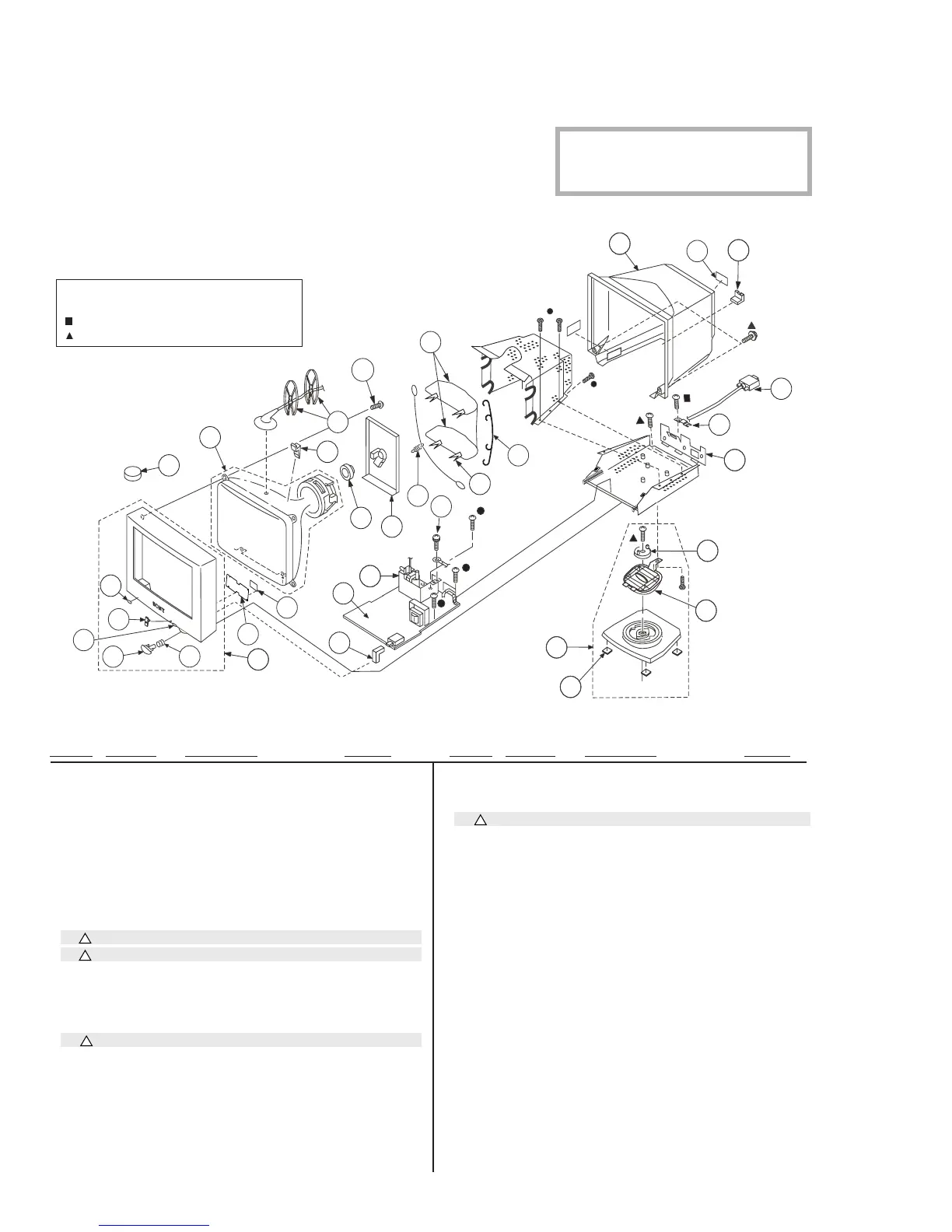

6-1. CHASSIS
7-685-646-79 SCREW +BVTP 3x8
7-685-881-09 SCREW +BVTP 4x8
7-685-872-09 SCREW +BVTAP 3x8
7-685-663-71 SCREW +BVTP 4x16
r
¢
20
17
18
28
30
22
23
33
31
11
10
19
16
14
1
2
3
4
9
6
5
20
13
15
29
7
8
21
12
26
27
32
25
24
