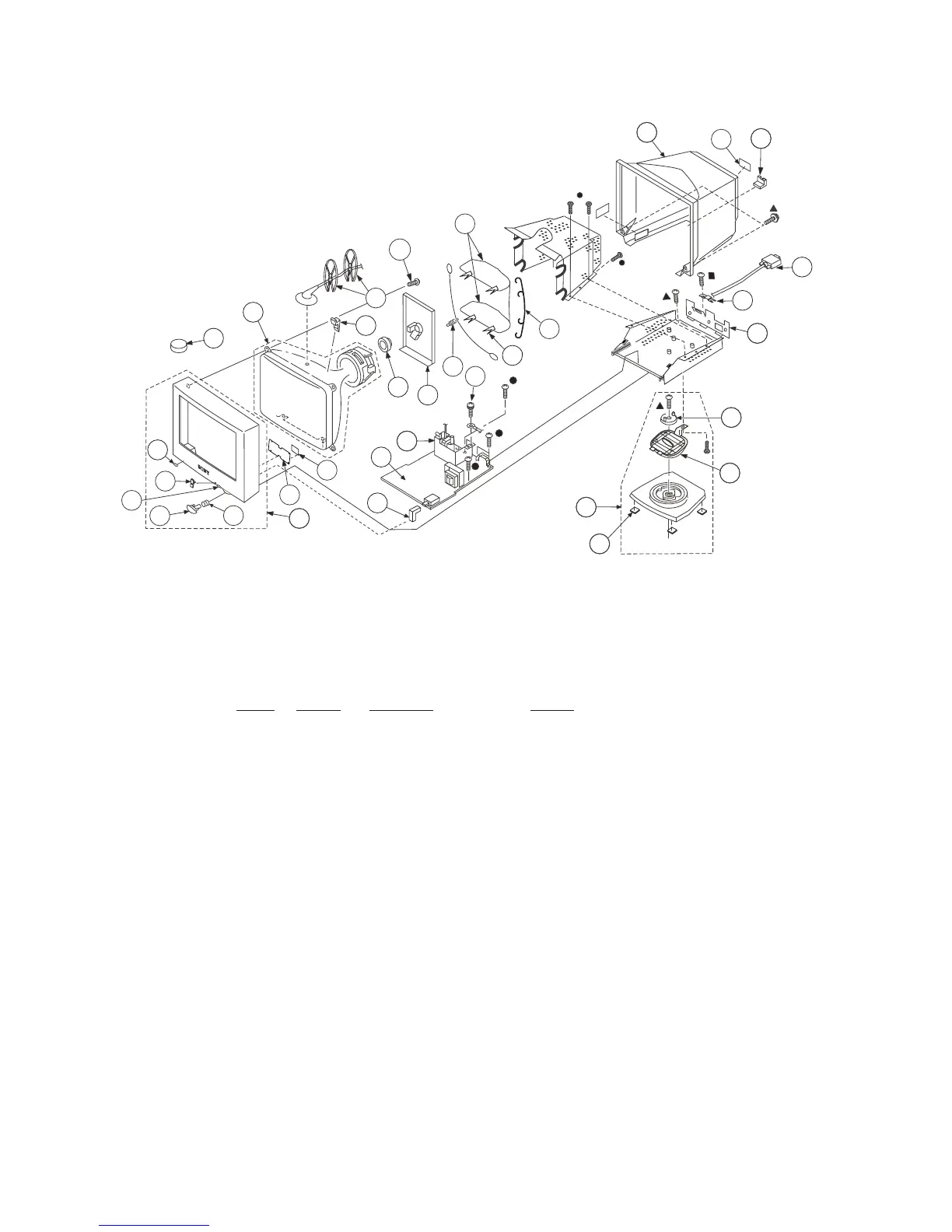

SECTION 6: EXPLODED VIEWS (PAGE 34)
REF.NO. PART NO. DESCRIPTION REMARK
6-1. CHASSIS
1 X-4037-240-3 BEZEL ASSY (for VAIO) 2-5
3 4-071-152-23 BUTTON, POWER (for VAIO)
4 * 4-071-154-23 BUTTON, RESET (for VAIO)
6 4-071-155-22 BUTTON, MENU (for VAIO)
25 * 4-071-147-24 CABINET (for VAIO)
26 * 4-071-728-11 LABEL, INFORMATION (for VAIO)
27 * 4-071-156-21 COVER, CABLE (for VAIO)
30 4-071-149-21 SLIDER (for VAIO)
31 X-4037-239-1 BASE ASSY, STAND (for VAIO) 29, 30, 32
20
17
18
28
30
22
23
33
31
11
10
19
16
14
1
2
3
4
9
6
5
20
13
15
29
7
8
21
12
26
27
32
25
24
The following parts are unique to the VAIO CPD-E200 model and differ in color only. All
other mechanical parts are the same as in the original CPD-E200 manual, p/n 9-978-850-01.
9-978-850-81
Sony Corporation
Sony Technology Center
Product Quality Division
Service Promotion Department
English
2000BJ74182-1
Printed in the USA
2000.02
CPD-E200
