34
CX-LEM550
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
E51 : Chilean and peruvian models
KR : Korea model
SP : Singapore model
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
Ref. No. Part No. Description Remark
1 A-1059-097-A POWER BOARD, COMPLETE (KR)
1 A-4752-018-A POWER BOARD, COMPLETE (SP, E51)
2 A-4750-621-A AMP BOARD, COMPLETE
3 A-4752-045-A MAIN BOARD, COMPLETE
4 not supplied
0 5 1-769-079-23 CORD, POWER (KR)
0 5 1-769-744-52 CORD, POWER (EXCEPT KR)
6 1-693-626-11 TUNER (FM/AM) (AEP, UK)
6 1-693-628-11 TUNER (FM/AM) (SP, E51)
6 1-693-629-11 TUNER (FM/AM) (KR)
7 4-247-752-01 RUBBER, FOOT
8 4-253-221-51 CABINET, REAR (BLACK)

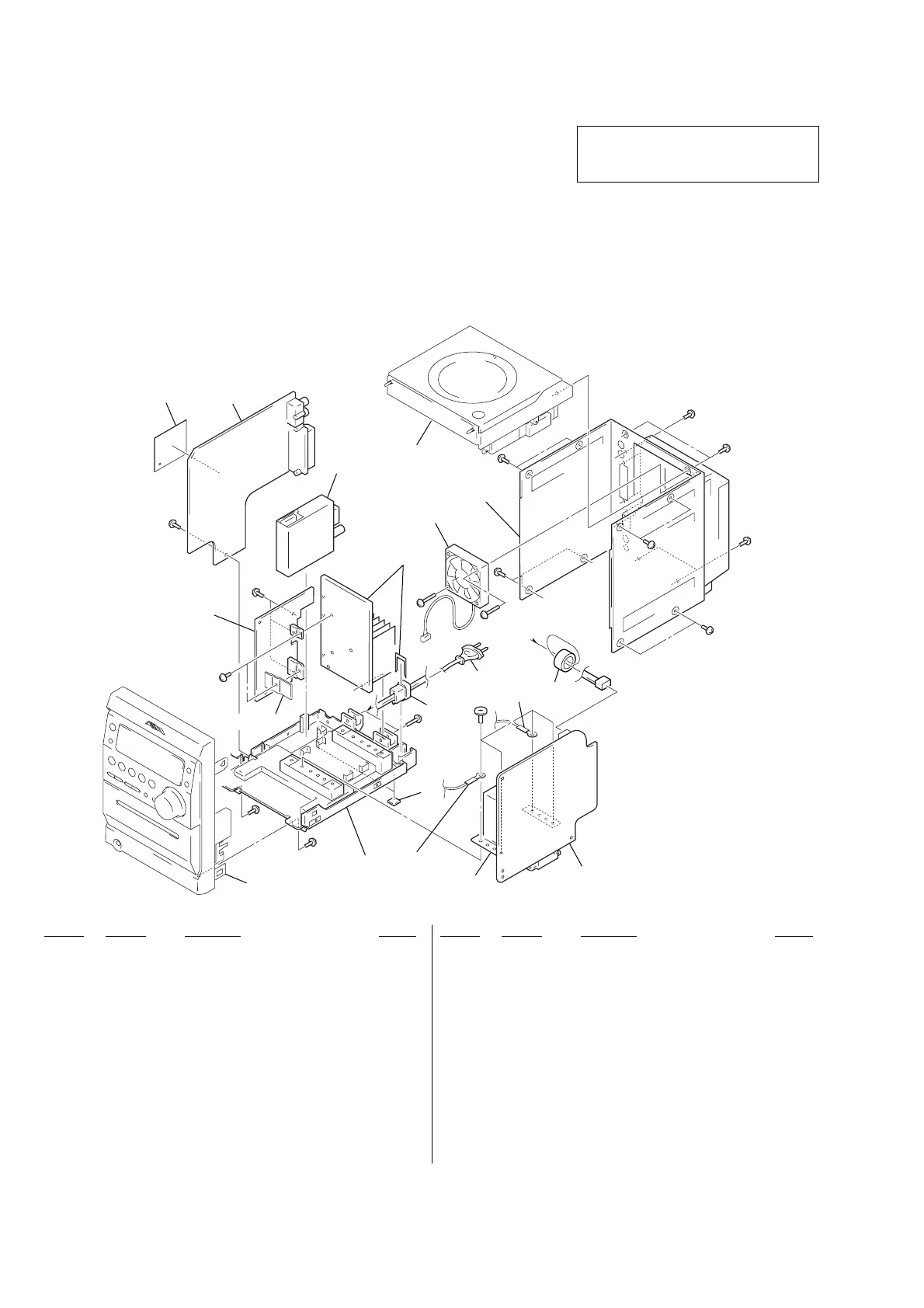

8-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
8 4-253-221-61 CABINET, REAR (EXCEPT BLACK)
9 1-469-636-11 CORE, FERRITE (ESD-R-25SD) (AEP, UK, KR)
M301 1-787-103-11 FAN, DC
0 T902 1-443-274-11 TRANSFORMER, POWER (AEP, UK)
0 T902 1-443-308-11 TRANSFORMER, POWER (E51, SP)
0 T902 1-443-365-11 TRANSFORMER, POWER (KR)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#2 7-685-548-14 SCREW +BTP 3X12 TYPE2 N-S
#3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#4 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S
#5 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3
#8 not supplied
Ref. No. Part No. Description Remark
1
2
4
7
8
not supplied
T902
not supplied
not supplied
not supplied
not supplied
M301
top panel assy
front panel assy-1
#1
#1
#1
#5
#2
#2
#2
#8
a
a
#8
#3
#3
#
#2
#4
#1
#1
3
6
5
9
To Next Page
