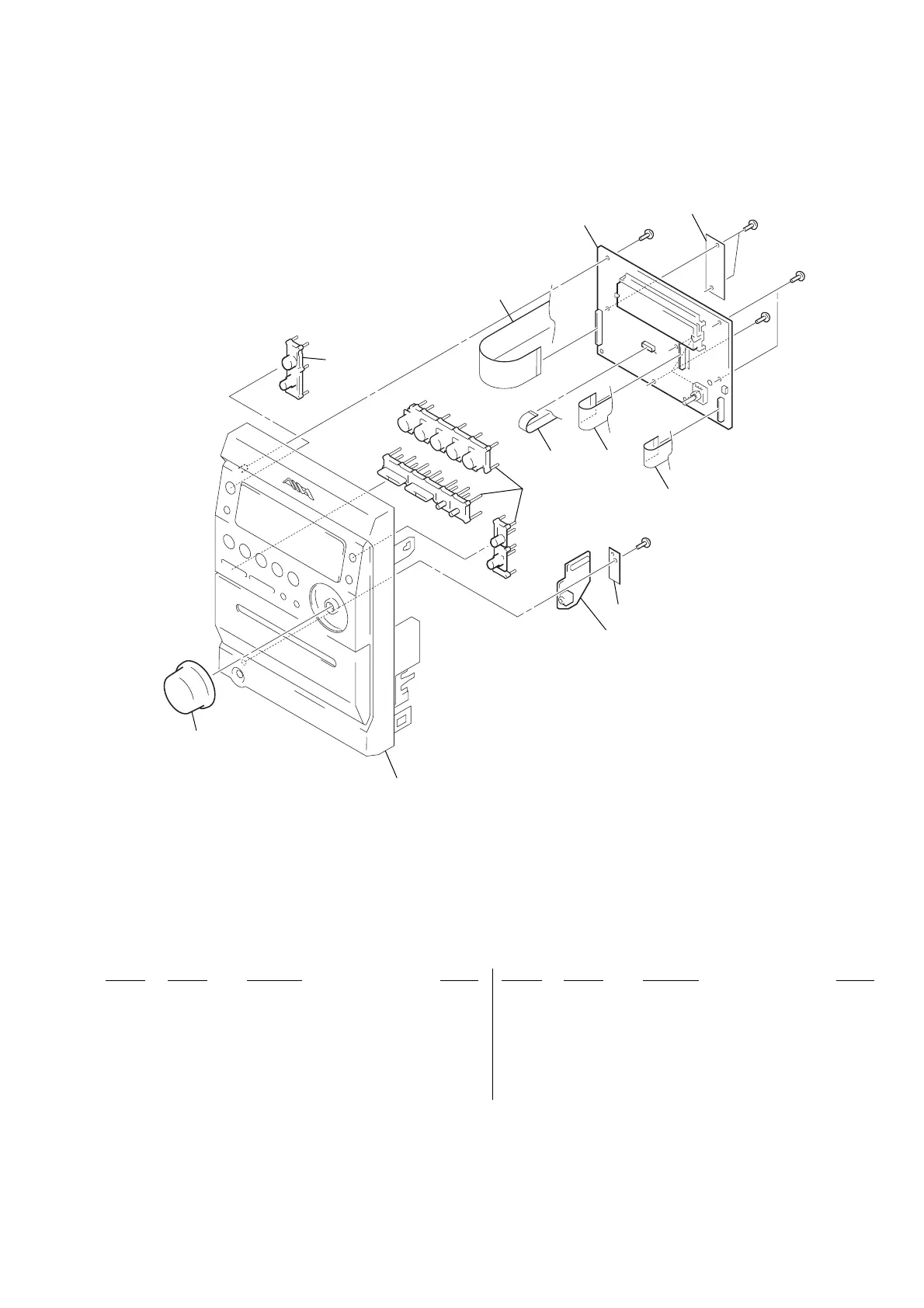

Sony CX-LEM550 - Front Panel Assembly 1 Exploded View

35
CX-LEM550
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-242-079-01 KNOB (RTRY VOL)
52 1-757-791-11 WIRE (FLAT TYPE) (16 CORE)(SILVER)
52 1-773-019-11 WIRE (FLAT TYPE) (15 CORE)(BLACK)
53 1-828-965-11 WIRE (FLAT TYPE) (11 CORE)(SP, E51, KR)
53 1-828-985-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
54 A-4752-047-A CONTROL BOARD, COMPLETE (AEP, UK)
54 A-4752-932-A CONTROL BOARD, COMPLETE (E51)
54 A-4753-425-A CONTROL BOARD, COMPLETE (SP, KR)
55 1-773-220-11 WIRE (FLAT TYPE) (25 CORE)
56 1-790-378-11 WIRE (FLAT TYPE) (8 CORE) (SILVER)
56 1-828-007-11 WIRE (FLAT TYPE) (8 CORE) (BLACK)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
8-2. FRONT PANEL ASSY-1
not supplied
(HP board)
51
front panel assy-2
not supplied
not supplied
not supplied
54
55
53
#1
#1
#1
#1
#1
not supplied
56
52
