Sony CX-LEM550 - Top Panel Assembly Exploded View

37
CX-LEM550
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

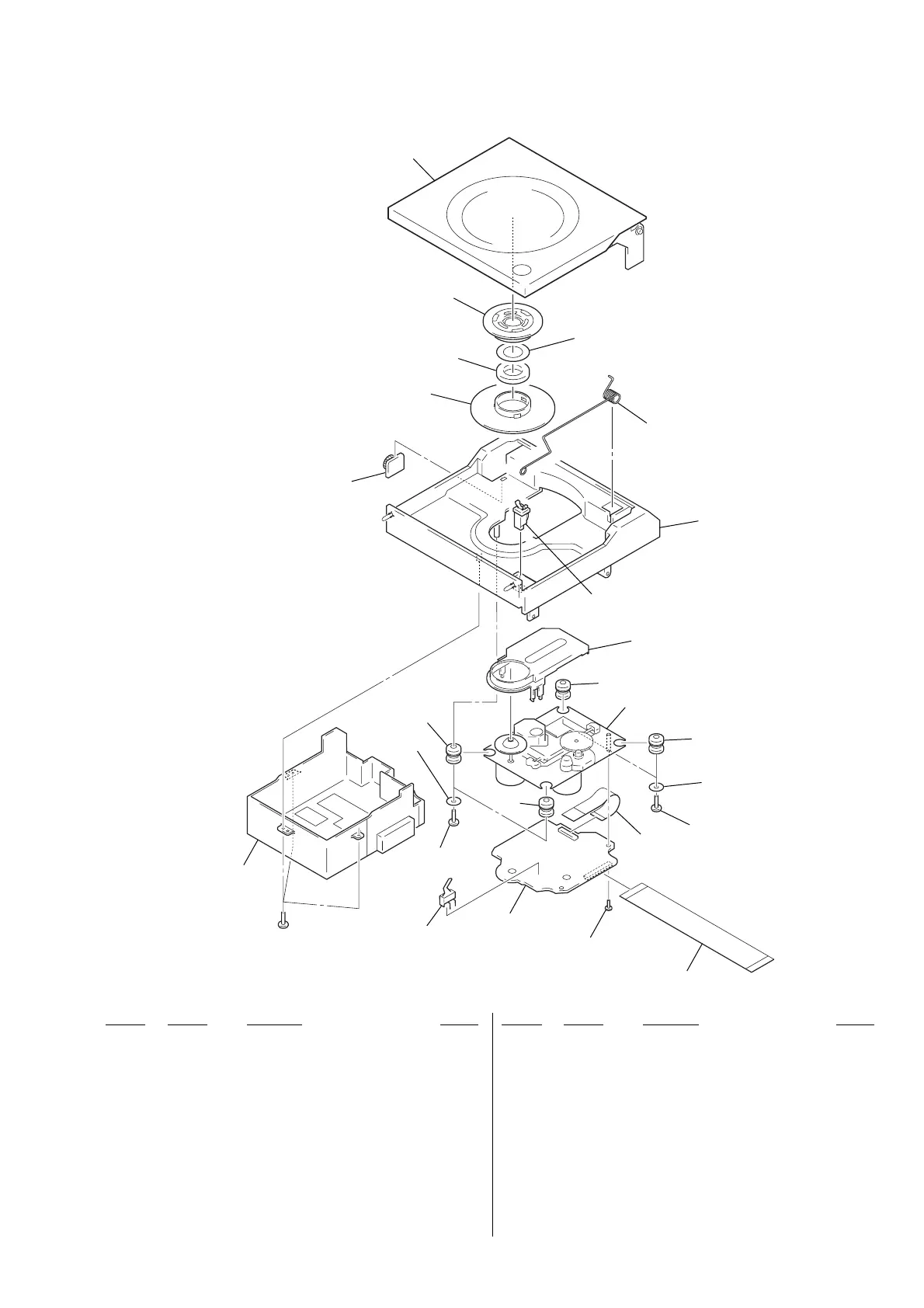

8-4. TOP PANEL ASSY
151 not supplied
152 4-247-493-01 COVER, CD
153 3-931-379-31 RUBBER, VIBRATION PROOF (GREEN)
154 3-931-379-21 RUBBER, VIBRATION PROOF (RED)
155 4-242-171-01 DAMPER 150 N
156 4-246-193-01 HOLDER, CHUCK A
157 4-249-238-01 MAGNET (18-30-5)
158 4-246-192-01 BASE, CHUCK N
159 4-246-195-21 LID, CD (EXCEPT BLACK)
159 4-246-195-31 LID, CD (BLACK)
160 4-246-191-11 PLATE, MAGNET
161 4-246-194-21 CHASSIS, CD (EXCEPT BLACK)
161 4-246-194-41 CHASSIS, CD (BLACK)
162 4-248-711-01 SPRING (CD)
163 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
164 1-824-048-12 WIRE (FLAT TYPE) (27 CORE)
166 A-4751-434-A CD BOARD, COMPLETE
167 8-820-221-01 DEVICE, OPTICAL PICK-UP
(KSM-213EDP/C2NP)
S101 1-771-853-11 SWITCH, DETECTION
#7 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
not supplied
not supplied
not supplied
S820
S101
#7
#8
152
153
153
161
154
167
154
155
156
157
160
162
158
159
163
164
151
151
166
