Sony CX-LEM550 - Front Panel Assembly 2 Exploded View

36
CX-LEM550
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

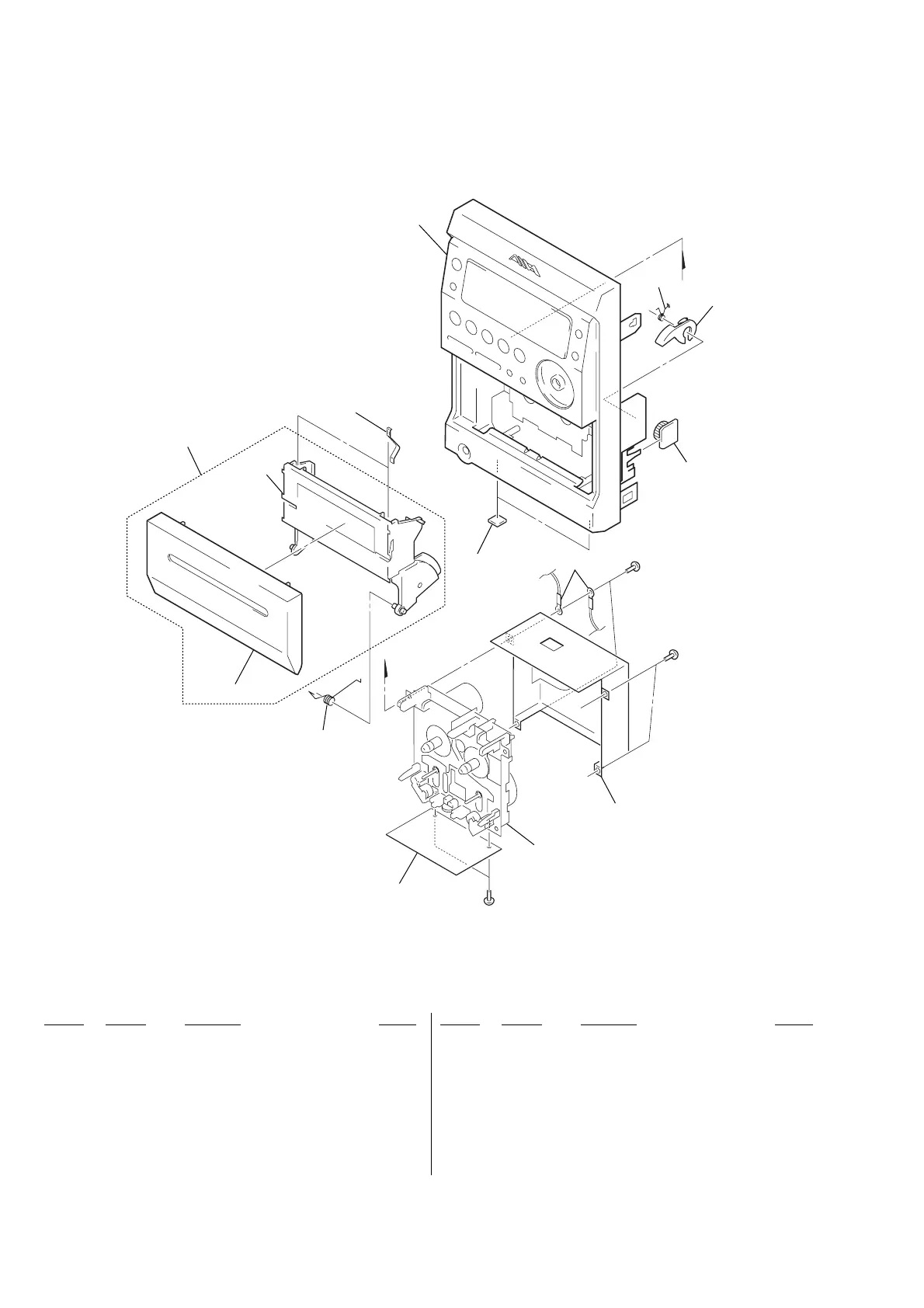

8-3. FRONT PANEL ASSY-2
101 X-2021-358-1 LID CASS ASSY (X) (BLACK)
101 X-4956-362-1 LID, CASS ASSY (X) (SILVER)
102 4-254-959-01 SPRING, CASSETTE
103 4-245-018-01 HOLDER (CASSETTE)
104 4-238-631-01 TAPE SPRING
105 4-247-752-01 RUBBER, FOOT
106 X-2021-357-1 FRONT PANEL ASSY (X) (BLACK)
106 X-4956-361-1 FRONT PANEL ASSY (X) (SILVER)(AEP, UK)
106 X-4956-461-1 FRONT PANEL ASSY (X) (SILVER)(SP, E51, KR)
107 4-231-841-01 SPRING (HEART CAM-B)
108 4-231-825-01 CAM (B), HEART
109 4-242-318-01 OIL-DMPR, 70
110 1-796-351-51 MECHANISM, SIGNAL CASSETTE
(CMAL1Z240A)
#3 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#3
b
b
#3
#6
not supplied
not supplied
not supplied
not supplied
101
102
103
104
105
110
107
108
109
106
