Sony CX-LEM550 - Disassembly Procedures; Rear Cabinet Disassembly

8
CX-LEM550
SECTION 3
DISASSEMBLY

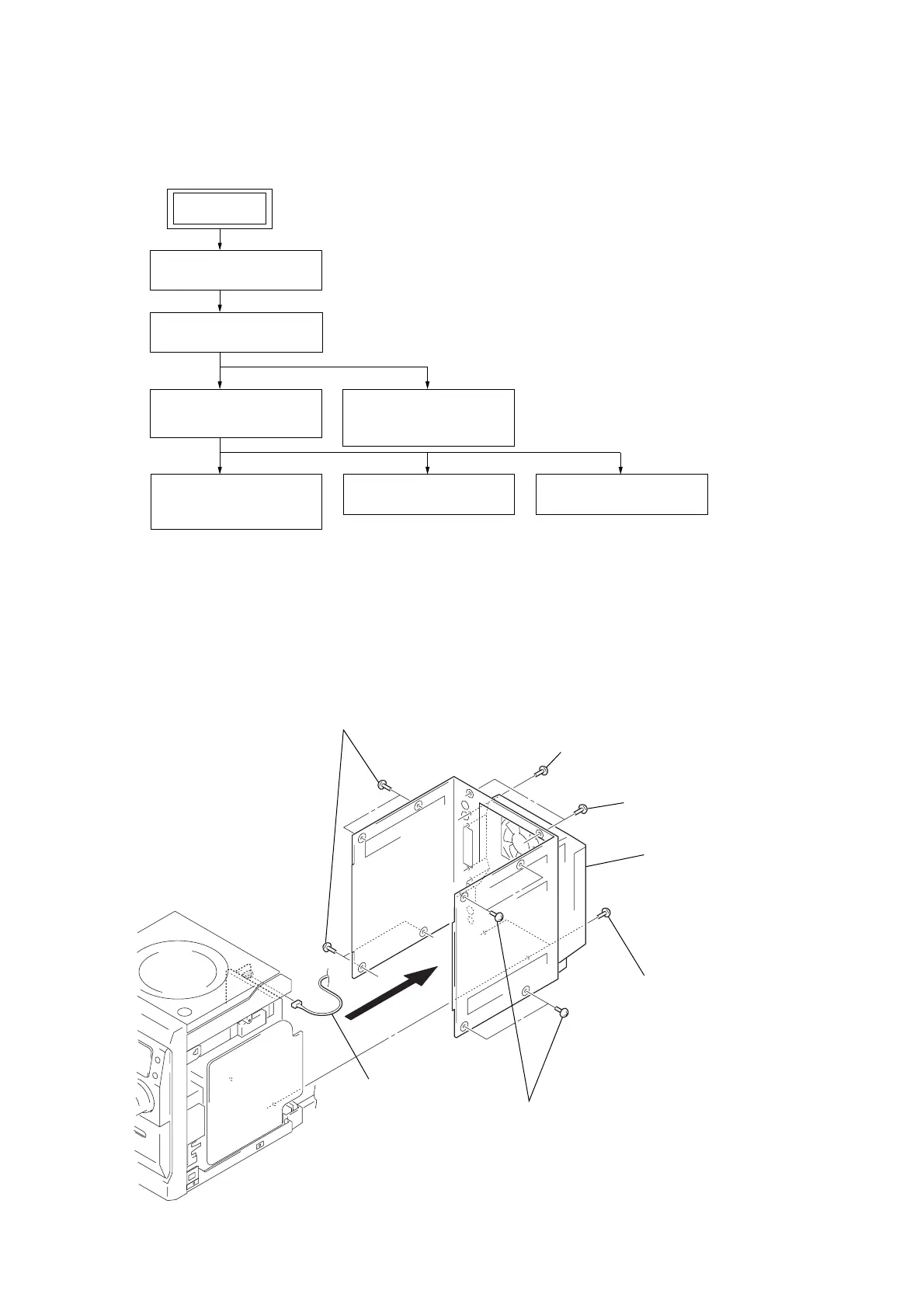

•This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.
3-1. REAR CABINET
3-1. REAR CABINET
(Page 8)
3-5. TAPE CASSETTE
MECHANISM DECK
(Page 10)
3-6. MAIN BOARD
(Page 11)
3-3. FRONT PANEL ASSY
(Page 9)
3-4. BASE UNIT
(BU-K7BD81B)
(Page 10)
3-2. TOP PANEL ASSY
(Page 9)
SET
3-7. AMP BOARD
(Page 11)
2 four screws
(BTP3 × 12)
7 connector
(CN310)
6
8 rear cabinet
5 two screws
(BVTP3
× 10)
1 four screws
(BTP3
× 12)
3 two screws
(BVTP3 × 10)
4 five screws
(BVTP3 × 10)
