Sony CX-LMN5 - PANEL AND EXTERIOR DISASSEMBLY; INTERNAL MECHANISM AND BOARD DISASSEMBLY

7
CX-LMN5
Note: Follow the disassembly procedure in the numerical order given.

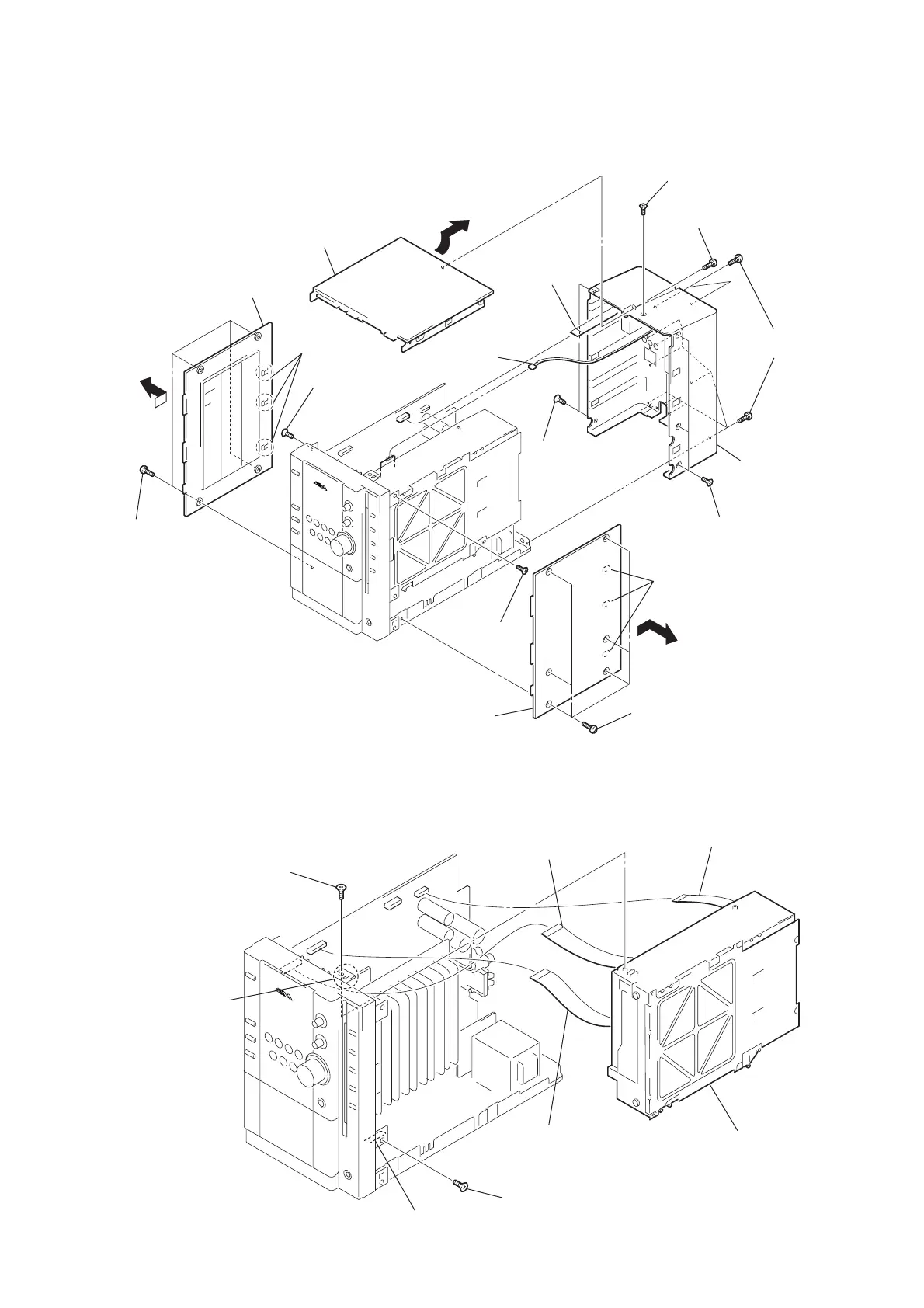

3-1. Side Panel (L)(R), Top Panel, Back Panel
3-2. CD Mechanism Section
qa connector
(CN293)
1 four screws
(+BVTP3
× 10)
4 six screws
(+BVTP3
× 10)
qg ten screws
(+BVTP3
× 10)
qh w ire (flat type)
15p /11P
(CN602)
7 screw (+BVTP3 × 10)
3 side panel (L)
q; top panel
qj back panel
qd three screws
(QT2+3
× 10)
8 screw
(QT2+3
× 10)
9 screw
(QT2+3
× 10)
qs two screws
(QT2+3
× 10)
qf screw
(+BVTP3
× 10)
5 three claws
2 three claws
6 side panel (R)
8 CD mechanism sectio
n
3 w ire (flat type)
11p (CN601)
2 w ire (flat type)
27p (CN901)
1 w ire (flat type)
23p (CN902)
4 screw
(QT2+3
× 10)
5 screw
(QT2+3
× 10)
6 claw
7 claw
