2-3. EXCHANGE METHOD OF BARRIER ASSEMBLY

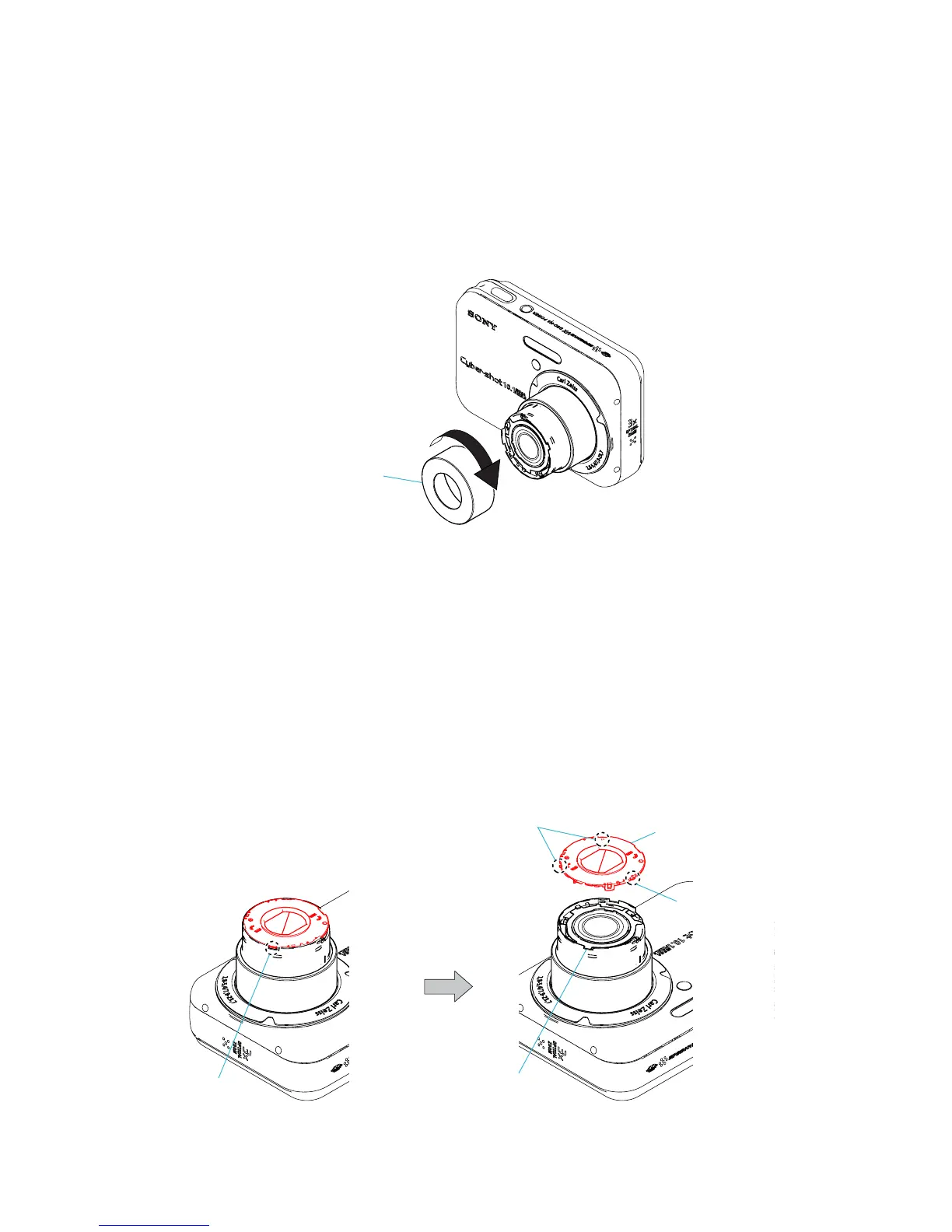

2-3-1. PEEL OFF OLD ORNAMENTAL RING (A)
Turn on the power, and set the zoom to the TELE end. Remove the battery forcibly.
Turn the ornamental ring (A) clockwise to remove.
* Discard the removed ornamental ring (A).
Ornamental ring (A)
2-3-2. REMOVE OLD BARRIER BLOCK ASSEMBLY
Inert tweezers, etc. into a slit in the lens, and pry the barrier block assembly with the fulcrum at a hole in the 1 group frame.
* Discard the removed barrier block assembly.
Slit
1 group frame
Claw
Claw
Barrier block
assembly
