Sony Cyber-shot DSC-N2 Service Manual

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-N2_L2

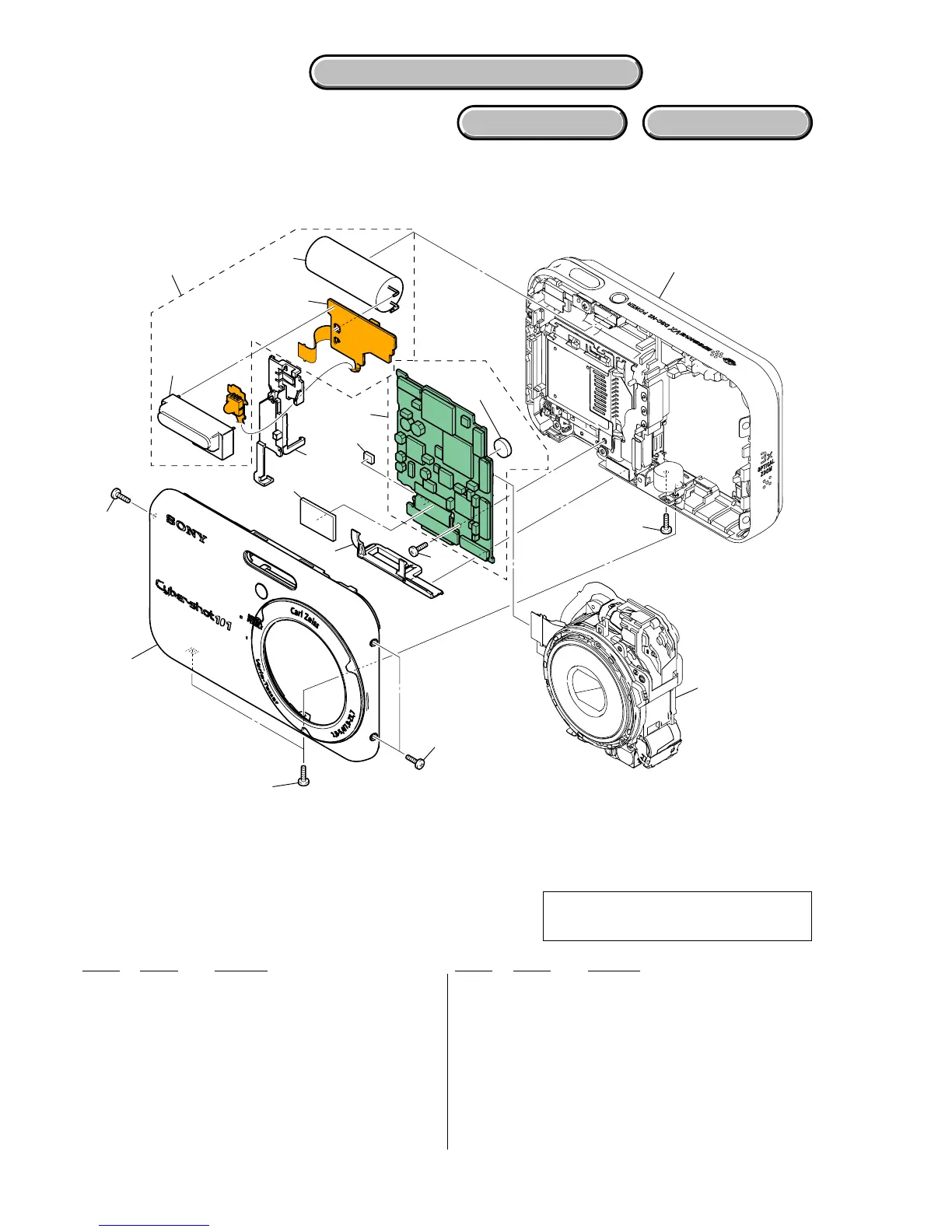

5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
5-1. EXPLODED VIEWS
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Refer to page 5-1 for mark 0.
ns: not supplied
BT001
ns
C901
1
#45
#45
#45
#45
#46
2
3
4
5
6
7
!
! BT001 (BATTERY, LITHIUM SECONDARY)
Board on the mount position (See page 4-17).
Lens block section
(See page 5-3.)
Cabinet (main) section
(See page 5-4.)
8
* Refer to the table of page 5-1 about language of SY-165 board.
1 A-1206-316-A CABINET (FRONT) BLOCK ASSY
02 1-479-601-11 FLASH UNIT
03 A-1151-928-A ST-129 FLEXIBLE BOARD, COMPLETE
* 4 2-657-990-01 HOLDER (AF)
5 2-657-991-11 CAP, MULTI
6 A-1216-614-A SY165-MC173 BOARD, COMPLETE (SERVICE)
(GP1)
6 A-1216-615-A SY165-MC173 BOARD, COMPLETE (SERVICE)
(GP2)
6 A-1216-616-A SY165-MC173 BOARD, COMPLETE (SERVICE)
(GP3)
6 A-1216-617-A SY165-MC173 BOARD, COMPLETE (SERVICE)
(GP4)
* 7 2-658-008-11 CUSHION (CD)
* 8 2-897-563-01 SHEET (SGA)
#45 2-587-151-01 SCREW (M1.4), NEW TRUSTAR.P2 (Silver)
#46 2-660-401-11 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
0*BT001 1-756-566-11 BATTERY, LITHIUM SECONDARY
0*C901 1-112-809-11 ELECT 105uF 99% 315V
DISASSEMBLY
DISASSEMBLY
HARDWARE LIST
HARDWARE LIST
