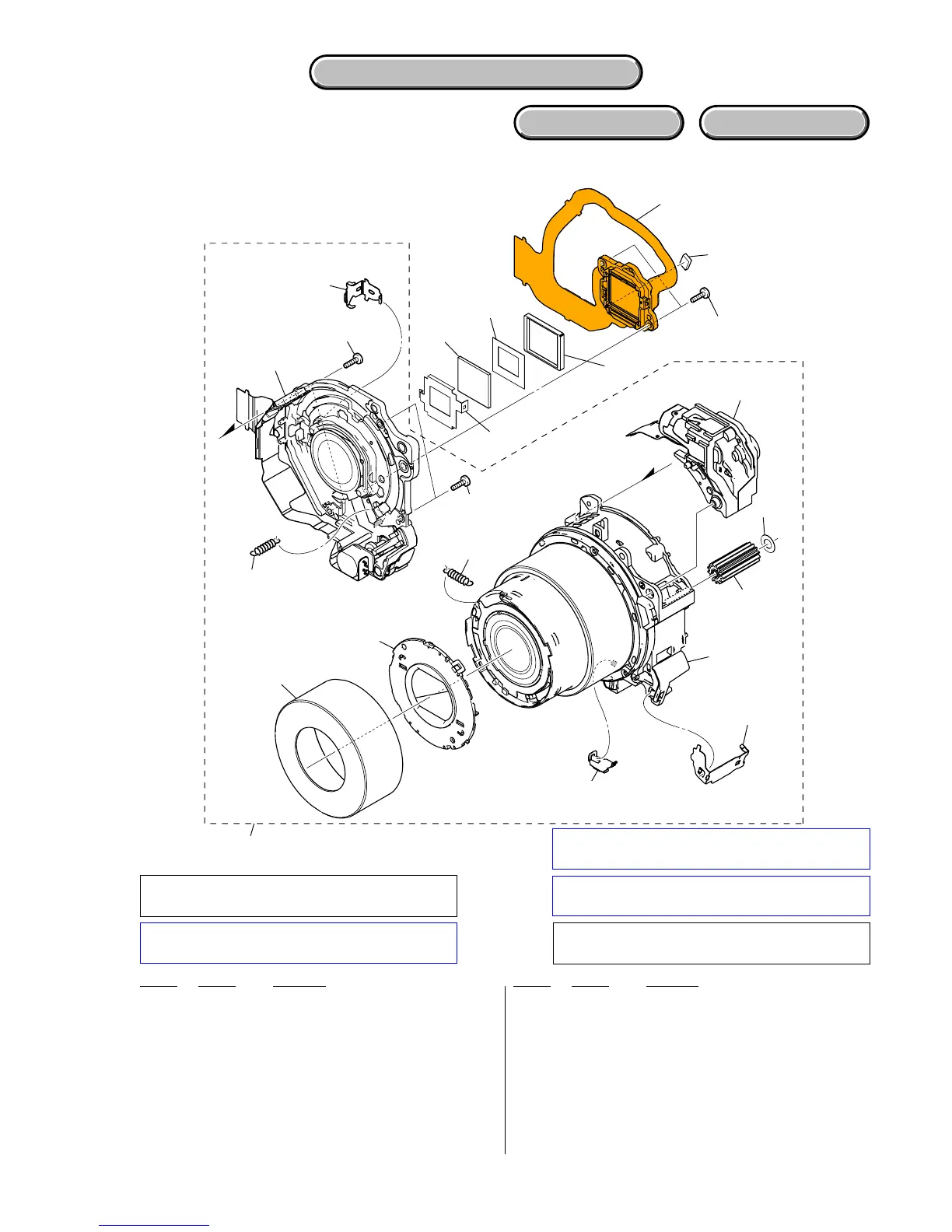

5-1-2. LENS BLOCK SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns: not supplied
Note 1: CCD adaptor mount block assembly is includ-
ing CD-661 flexible completed board.
Note 2: Be sure to read “Precuations for Replacement of
Imager” on page 4-2.
Note 3: Be sure to read “Exchange method of barrier as-
sembly” on page 2-4.
Note 4: Be sure to read “Exchange method of LSV-1100A”
on page 2-7.
51
(Note 3, 4)
58
(Note 3)
59
(Note 3)
60
ns
(Note 4, 5)
ns
(Note 4, 5)
#19
(Note 4)
#19
(Note 4)
62
(Note 4)
63
64
65
(Note 4)
66
(Note 4)
52
53
54
55
#19
56
57
(including CD-661
flexible board and
CCD imager (IC002))
(Note 1, 2)
ns
61
(Note 4)
Note 5: Non-replaceable part.
If it is damaged, replace the whole lens.
51 8-848-799-01 LSV-1100A (Note 3, 4)
52 2-596-758-01 RETAINER, LPF
53 2-596-756-01 MASK, LPF
54 1-788-291-11 OPTICAL FILTER BLOCK
55 2-596-755-01 RUBBER (1100), SEAL
* 56 2-658-008-11 CUSHION (CD)
57 X-2149-728-1 MOUNT BLOCK ASSY, CCD ADAPTOR
(including CD-661 flexible board and IC002) (Note 1, 2)
58 2-591-013-01 RING (A), ORNAMENTAL (Note 3)
59 A-1153-444-A BARRIER BLOCK ASSY (Note 3)
60 2-591-008-01 SPRING (A), BARRIER
61 1-479-387-11 GEAR BLOCK, ZOOM (1100) (Note 4)
62 2-593-175-01 PLATE SPRING, Z (Note 4)
63 2-659-328-02 WASHER, NARUTO
64 X-2108-530-1 GEAR, NARUTO (S)
65 2-591-031-01 PLATE SPRING, F (Note 4)
66 2-593-176-01 PLATE SPRING, S (Note 4)
#19 3-086-156-21 SCREW B1.2 (Red)
To Next Page
