5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-N2_L2
Ref. No. Part No. Description Ref. No. Part No. Description

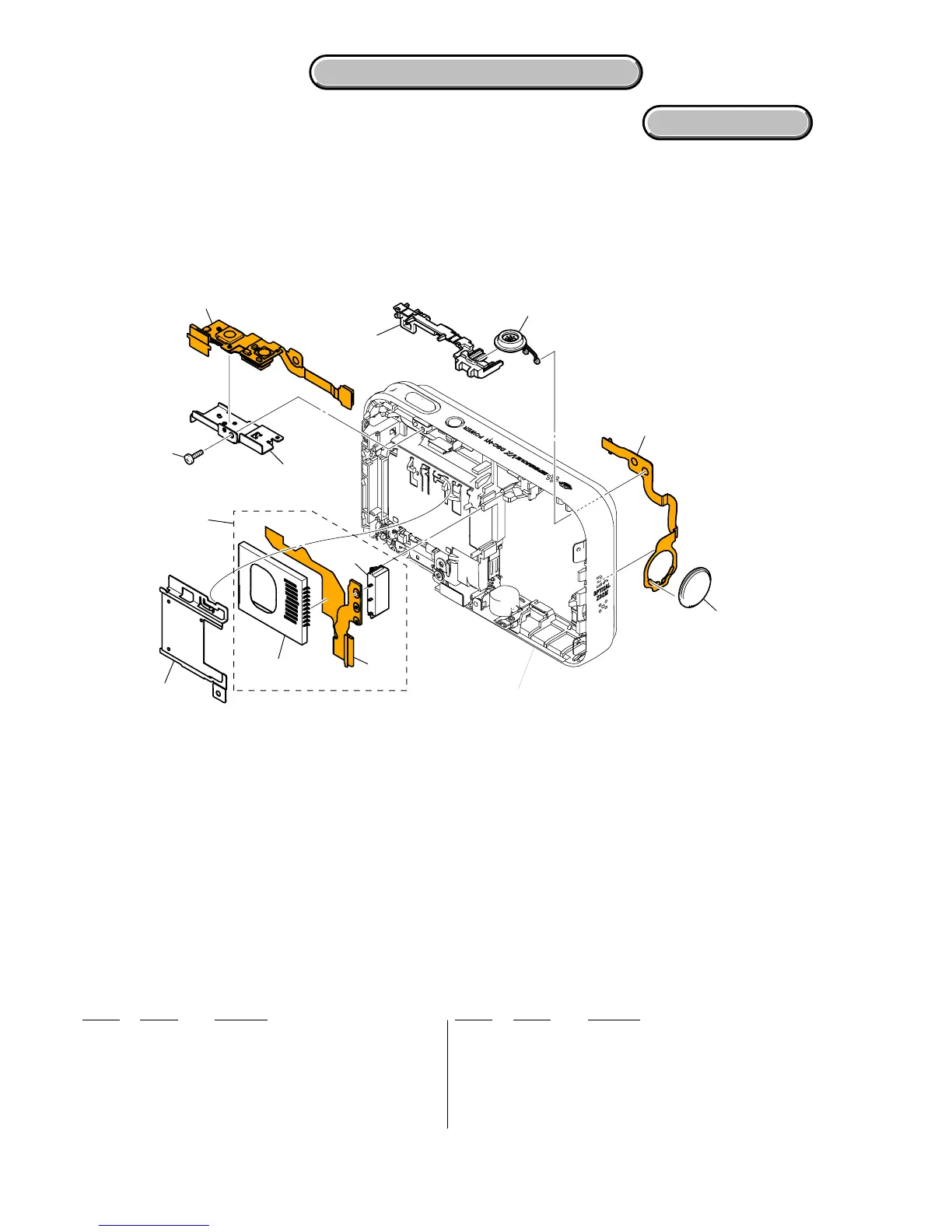

5-1-3. CABINET (MAIN) SECTION
ns: not supplied
ns
MIC901
SP901
BT901
CN001
101
102
#8
106
103
104
105
Cabinet (center) section
(See page 5-5.)
• Refer to page 5-1 for mark 0.
* 101 2-657-989-01 PLATE, MS GROUND
0102 A-1151-968-A MS-292 FLEXIBLE BOARD, COMPLETE
103 A-1151-930-A RL-062 FLEXIBLE BOARD, COMPLETE
* 104 2-657-988-01 HOLDER, MICROPHONE
105 1-868-859-11 SP-046 FLEXIBLE BOARD
* 106 2-657-901-01 FRAME (RELEASE)
#8 3-078-890-01 SCREW, TAPPING (Silver)
0 BT901 1-780-061-21 BATTERY TERMINAL BOARD
CN001 1-817-827-11 MEMORY STICK DUO CONNECTOR
MIC901 1-542-666-01 MICROPHONE
SP901 1-825-945-11 LOUDSPEAKER (1.3CM)
HARDWARE LIST
HARDWARE LIST
