2-4. EXCHANGE METHOD OF LSV-1100A

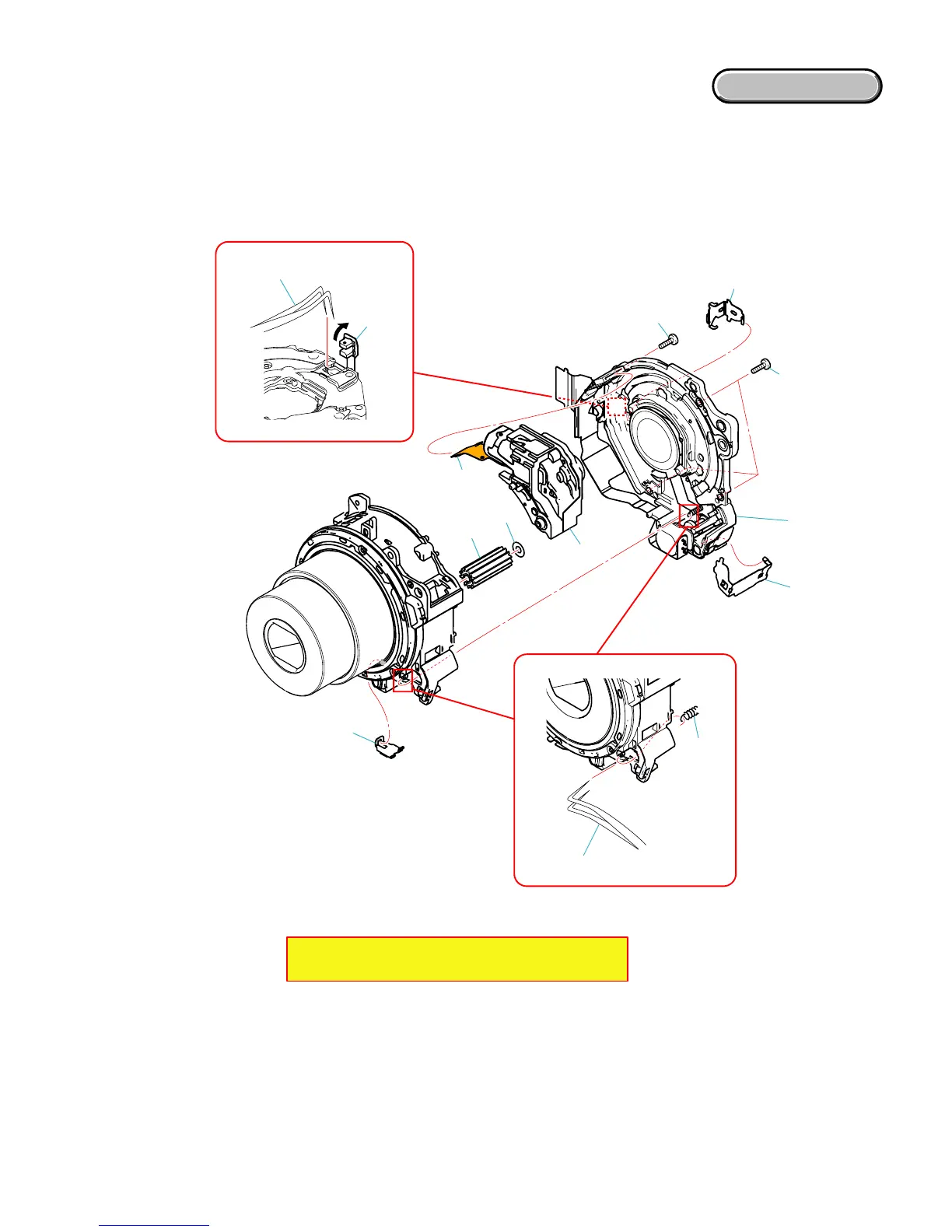

2-4-1. REMOVE THE ZOOM GEAR BLOCK
Preparation: Detach the lens after turning on the set power supply, and moving the position of the zoom to “x2.0”. (Detach under such a
condition it when the zoom does not move.)
Tweezers etc.
Tweezers etc.
1 S plate spring
x1
*
2 F plate spring
x1
*
3 3 group spring
x1
4 Z plate spring
x1
*
5 Remove the reset sensor.
6 Flexxible board
x1
7 #19
x4
8 Back body block
9 Naruto washer
*
0 Naruto gear
*
qa Zoom gear block
1
2
3
4
7
7
8
qa
9
0
5
6
* Discard the removed parts.
Note: Be careful to the focus motor flexible board.
Do not make the lens dirty by touching.
