2-9
DSC-N2_L2

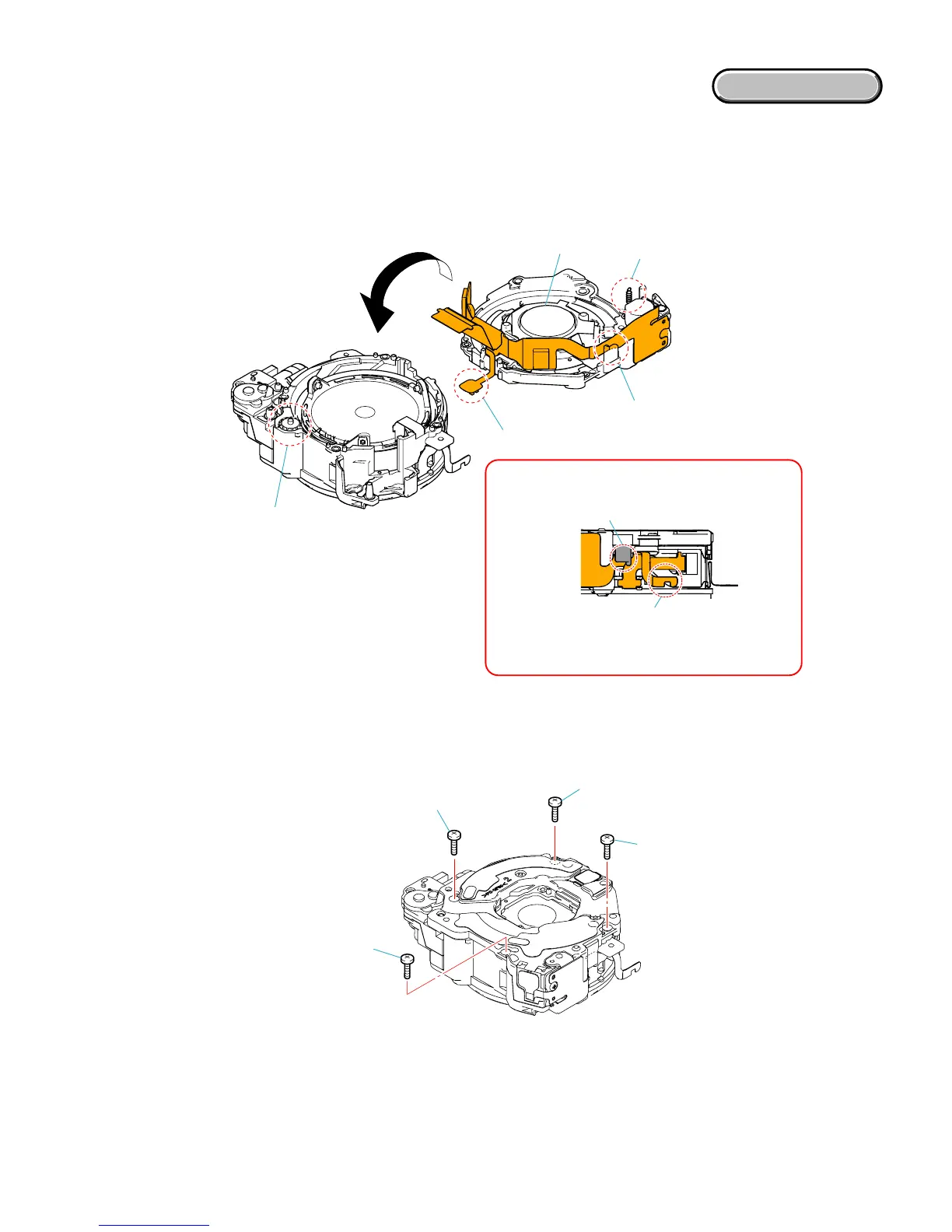

4 Tighten four screws (#19) in the order of A to D.
* Tightening torque = 0.5 kgf • cm (4.9 N)
3 Put the back body block on the front lens block, taking care of the following points:
Note: 1 Do not pinch the 3 group spring and Z reset sensor by the set.
2 Do not allow the naruto washer and naruto gear to drop off.
3 The flexible cable must be engaged with the ribs of the
back body block.
4 Do not touch the flexible board etc. to G6 lens.
3 group spring
Flexible cable
Z reset sensor
Confirm whether flexible board hangs in
the rib of the back body block.
Confirm the flexible board has gone out up.
Confirm abnormality is not found in the state
of the flexible board.
Naruto gear,
Naruto washer
Check the state of the flexible board
G6 lens
A
B
C
D
(#19)
(#19)
(#19)
(#19)
HARDWARE LIST
HARDWARE LIST
To Next Page
