– 29 –
SECTION 7
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

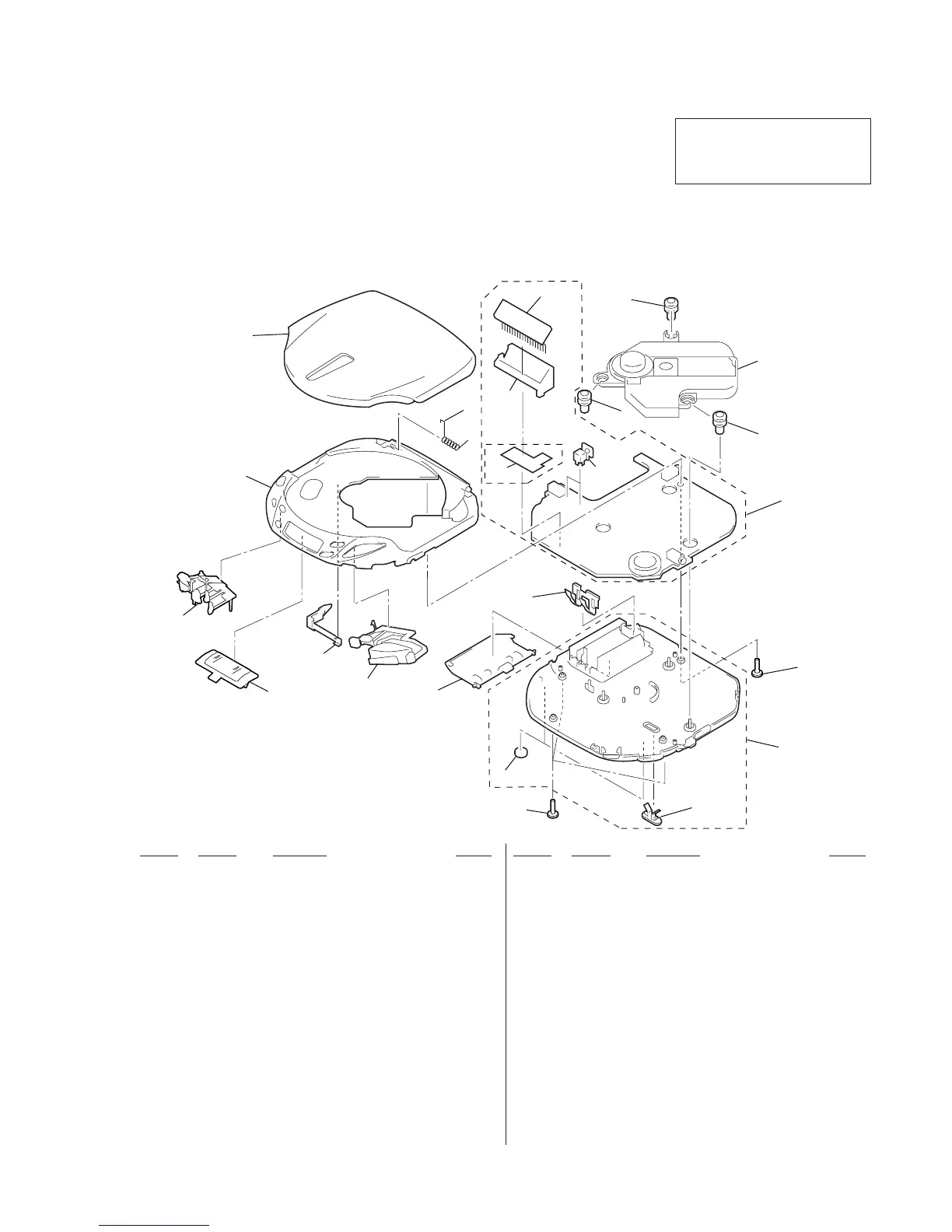

7-1. CABINET SECTION
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number specified.
1 X-4950-224-1 DETECTOR ASSY
2 4-213-874-01 BUTTON (OPEN)
3 4-213-871-11 CABINET (UPPER) (BLUE) (E451)
3 4-213-871-41 CABINET (UPPER) (SILVER)
4 4-994-981-01 SPRING, TORSION
5 X-4952-003-1 LID ASSY, UPPER (BLUE) (E451)
5 X-4952-004-1 LID ASSY, UPPER (SILVER) (E451)
5 X-4952-016-1 LID ASSY, UPPER (SILVER) (E455)
5 X-4952-017-1 LID ASSY, UPPER (SILVER) (E459CK)
5 X-4952-018-1 LID ASSY, UPPER (SILVER) (E456CK)
6 4-213-876-01 HOLDER (LCD) (E451,E455)
6 4-222-877-01 HOLDER (LCD) (E456CK, E459CK)
7 4-978-695-01 PLATE, TERMINAL, BATTERY
8 4-990-219-01 INSULATOR
9 A-3323-270-A MAIN BOARD, COMPLETE (E451)
9 A-3323-281-A MAIN BOARD, COMPLETE (E455)
9 A-3323-282-A MAIN BOARD, COMPLETE (E456CK,E459CK)
10 4-997-109-01 TERMINAL BOARD (RELAY),BATTERY
11 4-213-873-01 LID, BATTERY CASE
12 X-4950-730-1 CABINET (LOWER) SUB ASSY
13 3-336-395-01 SCREW (B2X10) (G), TAPPING
14 4-213-879-01 KNOB (AVLS)
15 4-966-278-01 FOOT, RUBBER
16 4-213-875-01 BUTTON (CONTROL)
17 4-213-877-01 WINDOW (LCD)
* 18 1-675-316-11 LED SUB BOARD (E456CK,E459CK)
LCD801 1-803-017-11 DISPLAY PANEL, LIQUID CRYSTAL (E451,
E455)
LCD801 1-803-776-11 DISPLAY PANEL, LIQUID CRYSTAL (E456CK,
E459CK)
LCD801
E456CK/
E459CK
CDM-2811EA
To Next Page
