Sony D-E451 - Optical Pick-Up Section

– 30 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-3303-970-A SCREW ASSY, FEED
52 3-318-203-11 SCREW (B1.7), TAPPING
53 1-690-530-81 LEAD (WITH CONNECTOR)
54 4-972-163-04 SPRING, SLED
55 4-974-003-01 GEAR (B)
56 3-719-401-11 SCREW (B1.7), TAPPING
* 57 4-984-320-01 CHASSIS
58 1-660-965-11 PC BOARD, SLIDE FLEXIBLE
! 59 X-4950-476-1 OPTICAL PICK-UP (DAX-11E)
60 4-972-165-01 RACK
61 4-973-631-01 SCREW
62 7-627-850-17 SCREW,PRECISION +P 1.4X2.5
M901 A-3303-403-A MOTOR ASSY (SLED) (INCLUDING GEAR)
M902 A-3303-971-A MOTOR ASSY, TURNTABLE (SPINDLE)
S901 1-571-099-21 SWITCH (1 KEY) (LIMIT)

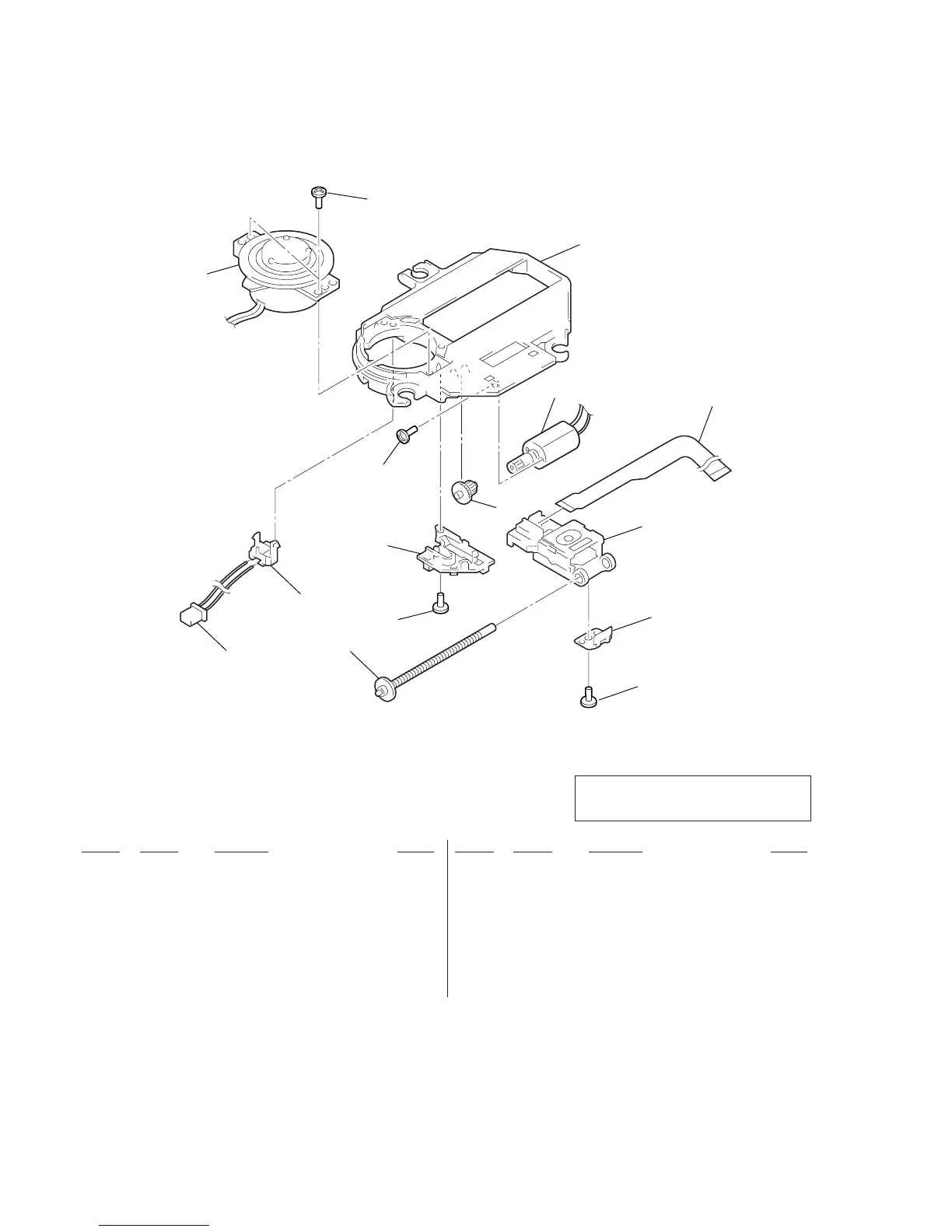

7-2. OPTICAL PICK-UP SECTION
(CDM-2811EAA)
M901
S901
M902
51
52
62
53
54
55
56
57
58
59
60
61
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
