Sony D-E451 - Main Board, LED Sub Board (E456 CK, E459 CK); Turn Table Motor ASSY (Spindle) (M902), Optical Pick-Up (DAX-11 E), Sled Motor ASSY (M901)

– 6 –

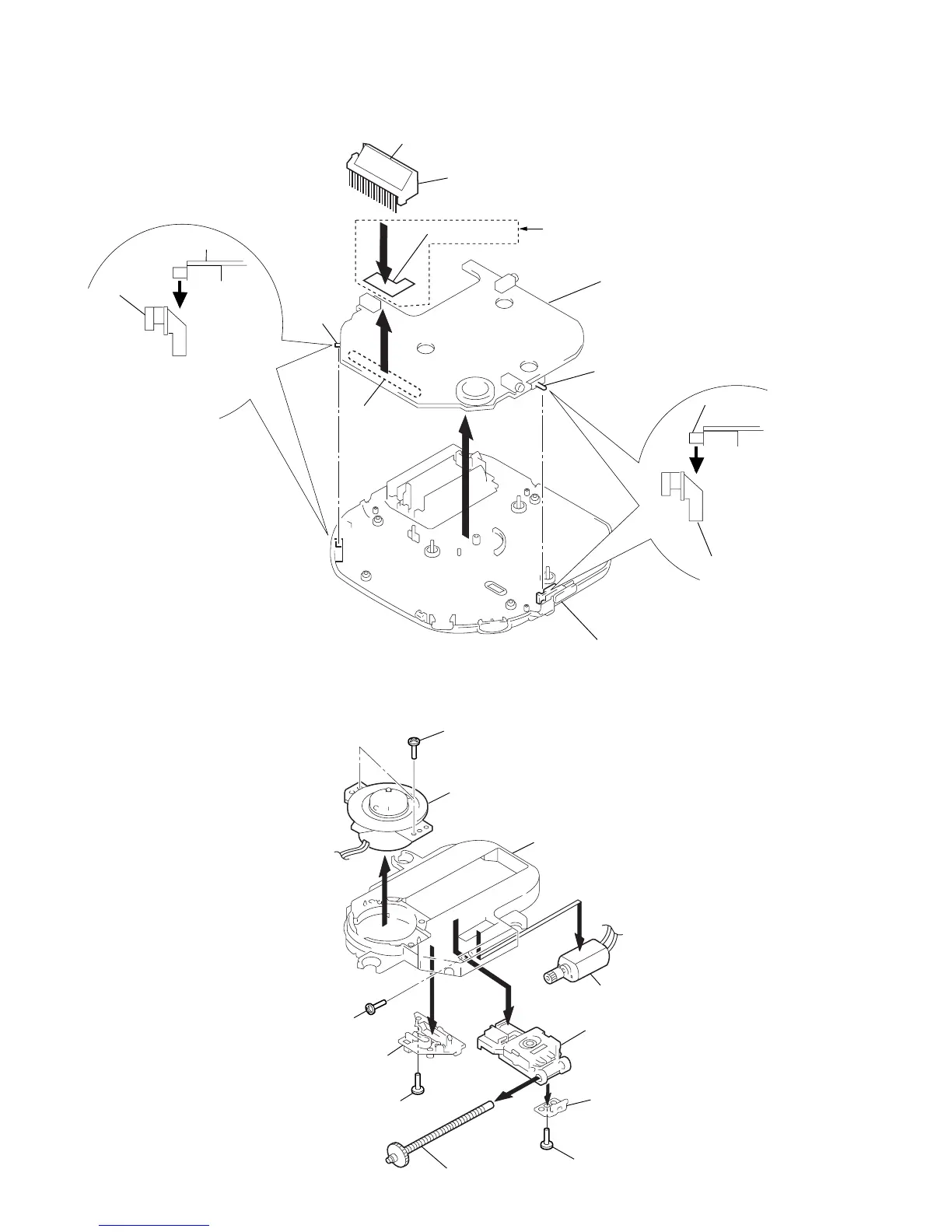

3-3. MAIN BOARD, LED SUB BOARD (E456CK, E459CK)
1
3
4
Main board
E456CK, E459CK
S804
2 Remove solder
S804
Knob (HOLD)
Knob (RESUME
)
Cabinet (Lower) sub ASSY
LED sud board
Holder (LCD)
LCD801
S803
S803
To install, position the knob
and the switch respectively.
Sometime the HOLD switch
(S804) and RESUME switch
(S803) will be broken.
!º
4
5
7
8
2
1
Screws (B1.7)
9 Screws
(+P1.4x2.5)
3 Screw (B1.7x6)
6 Screw
Screw ASSY, Feed
Spring, sled
Optical pick-up
(DAX-11E)
Turn table motor ASSY (Spindle) (M902)
Chassis
Sled motor ASSY
(M901)
Rack
3-4. TURN TABLE MOTOR ASSY (SPINDLE) (M902),
OPTICAL PICK UP (DAX-11E), SLED MOTOR ASSY (M901)
