Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
33
D-NF430/NF431
A-1152-105-A SWITCH BOARD, COMPLETE
***********************
1-831-830-11 FLEXIBLE FLAT CABLE (10 CORE )
< CAPACITOR >
C1001 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1002 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1003 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1004 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1005 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1006 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1007 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1008 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1009 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1010 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1011 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C1014 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C1110 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V
< CONNECTOR >
CN1001 1-778-171-51 CONNECTOR, FFC/FPC (ZIF) 23P
CN1002 1-778-158-51 CONNECTOR, FFC/FPC (ZIF) 10P
< JUMPER RESISTOR >
JC1001 1-216-296-11 SHORT CHIP 0
< LIQUID CRYSTAL DISPLAY >
LCD1001 1-805-689-21 DISPLAY PANEL, LIQUID CRYSTAL
< RESISTOR >
R1001 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1002 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1003 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1004 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1005 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1006 1-218-990-11 SHORT CHIP 0
R1007 1-216-864-11 SHORT CHIP 0
R1008 1-216-295-00 SHORT CHIP 0
R1009 1-218-990-11 SHORT CHIP 0
R1101 1-216-295-00 SHORT CHIP 0
R1102 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1103 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1104 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R1105 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R1106 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R1107 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R1108 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R1109 1-218-965-11 RES-CHIP 10K 5% 1/16W
R1110 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R1111 1-218-965-11 RES-CHIP 10K 5% 1/16W
R1112 1-218-969-11 RES-CHIP 22K 5% 1/16W
R1113 1-218-985-11 RES-CHIP 470K 5% 1/16W
R1114 1-218-977-11 RES-CHIP 100K 5% 1/16W
R1118 1-218-953-11 RES-CHIP 1K 5% 1/16W
R1120 1-218-990-11 SHORT CHIP 0
< SWITCH >
S1101 1-786-650-21 SWITCH, TACTILE (u)
S1102 1-786-650-21 SWITCH, TACTILE(RADIO ON/BAND, MEMORY)
S1103 1-786-650-21 SWITCH, TACTILE (DISPLAY, MENU)
S1104 1-786-650-21 SWITCH, TACTILE (>)
S1105 1-786-650-21 SWITCH, TACTILE (.)
S1106 1-786-650-21 SWITCH, TACTILE (TUNE+, GROUP+)
S1107 1-786-650-21 SWITCH, TACTILE (TUNE−, GROUP−)
S1108 1-786-650-21 SWITCH, TACTILE (x, RADIO OFF)
S1109 1-786-650-21 SWITCH, TACTILE (U, VOL+)
S1110 1-786-650-21 SWITCH, TACTILE (u, VOL−)
S1111 1-786-650-21 SWITCH, TACTILE (SERACH)
< VARISTOR >
VDR1002 1-803-742-21 VARISTOR, CHIP
************************************************************
MISCELLANEOUS
**************
0102 X-3383-995-1 OPTICAL PICK-UP (DAX-25EV)
M601 A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE)
M602 A-3174-850-A MOTOR ASSY, SLED
************************************************************
ACCESSORIES
************
2-663-956-11 MANUAL, INSTRUCTION (ENGLISH)
2-663-956-71 MANUAL, INSTRUCTION
(SIMPLIFIED CHINESE) (NF431)
0501 1-477-732-12 ADAPTOR, AC (AC-ET305K) (NF430: UK)
0501 1-477-738-22 ADAPTOR, AC (AC-ET305K2) (NF431)
502 1-478-401-11 REMOTE CONTROL UNIT (RM-MC23F) (NF431)
503 1-478-405-11 REMOTE COMMANDER (RM-MC29F)
(NF430: US/NF431)
504 8-912-743-90 EARPHONES MDR-E808SPB19 SET (NF431)
505 8-912-744-90 EARPHONES MDR-E808LPB19 SET (NF430)

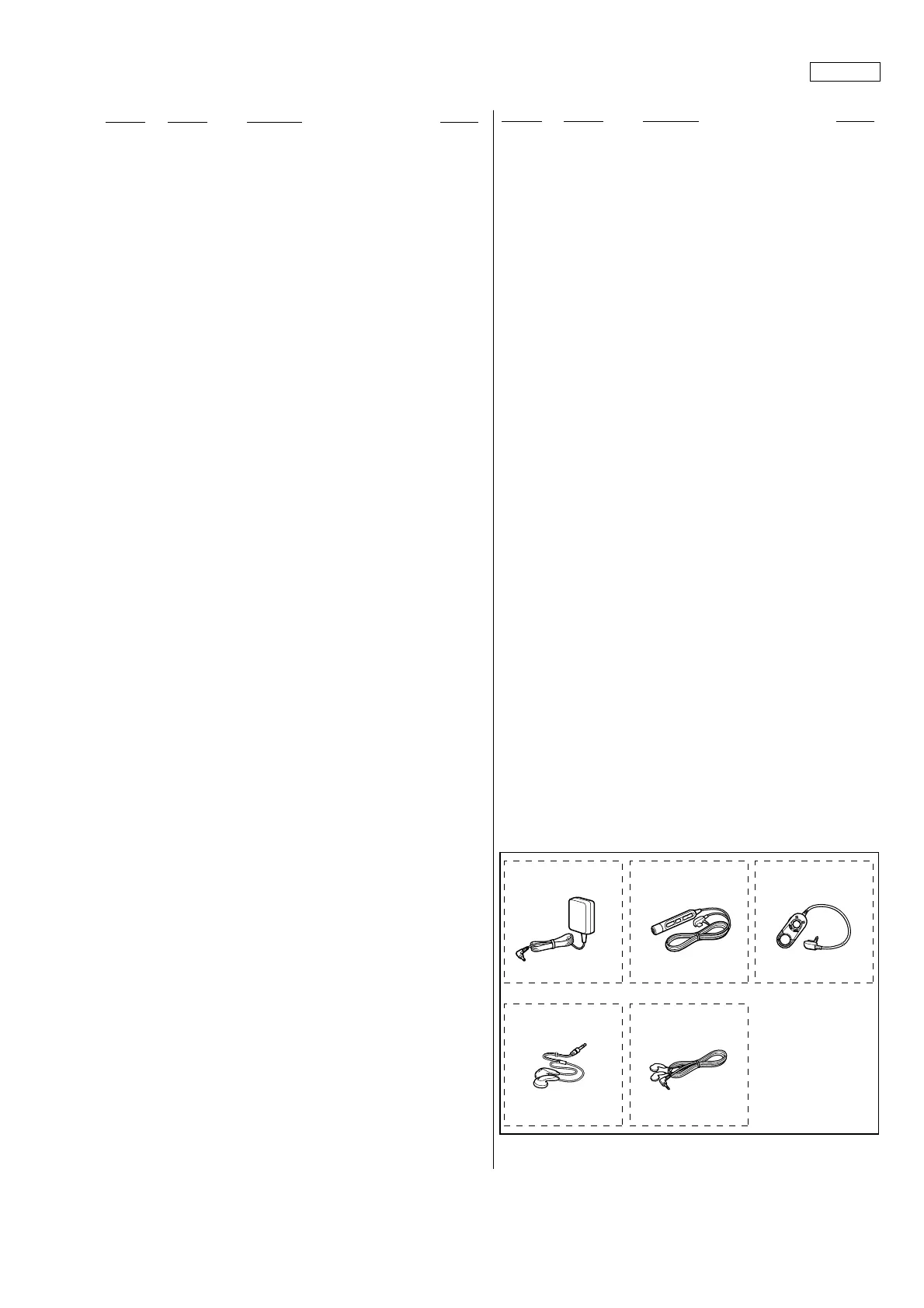

SWITCH
Remote (RM-MC23F)AC power adaptor
Earphones
(MDR-E808SPB19)
Earphones
(MDR-E808LPB19)
Remote (RM-MC29F)
501 502 503
504 505
(Except NF430: US)
(Except NF431)
(NF431)
(NF431)
(NF430: US/NF431)
