106
107
108
#1
109
110
111
105
101
102
103
104
not supplied
M901
M902
S901

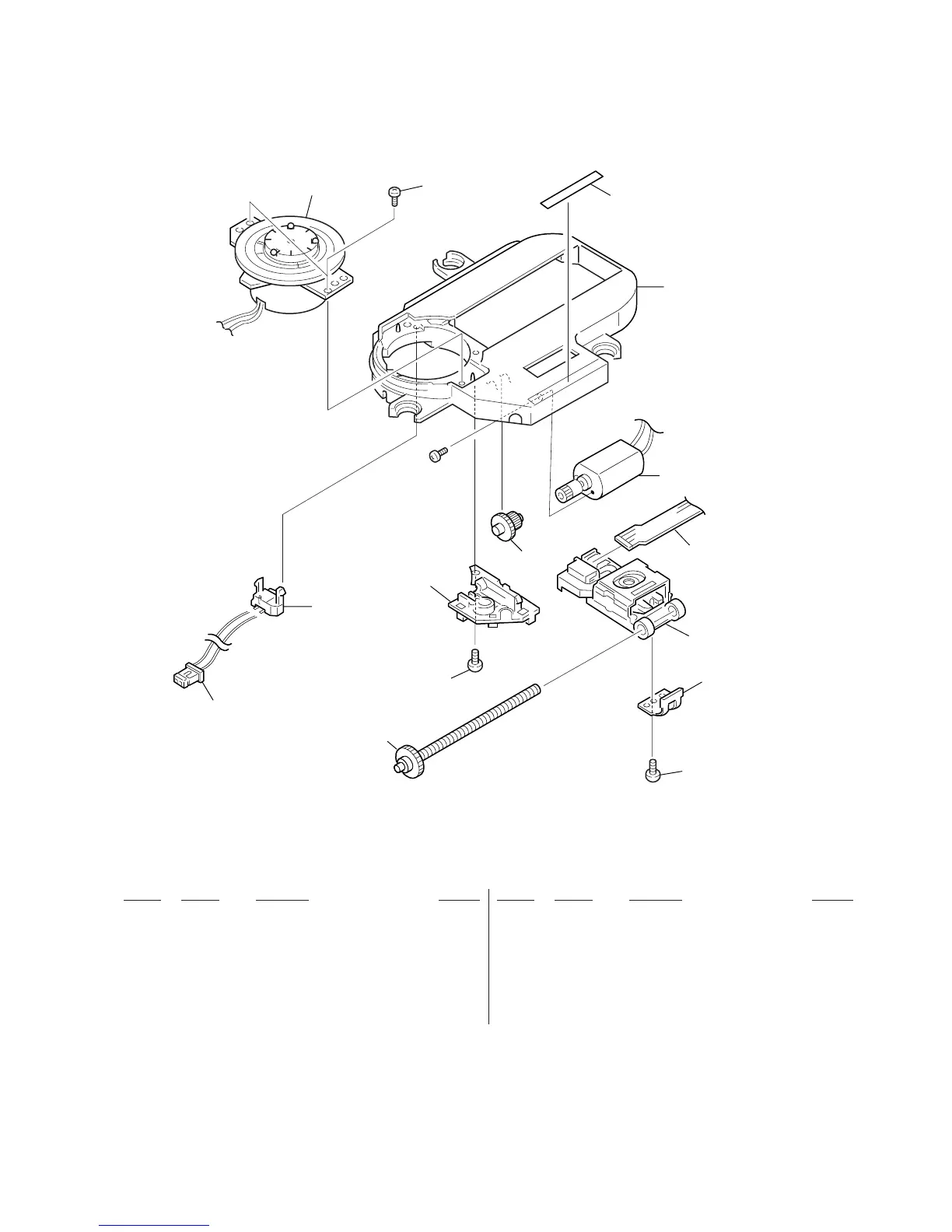

OPTICAL PICK-UP SECTION
(CDM-2811CAA)
— 5 —
101 A-3303-970-A SCREW ASSY, FEED
102 3-318-203-11 SCREW (B1.7), TAPPING
103 4-972-163-04 SPRING, SLED
104 1-690-530-81 LEAD (WITH CONNECTOR)
105 4-973-631-01 SCREW
106 3-719-401-11 SCREW (B1.7), TAPPING
* 107 4-984-320-01 CHASSIS
108 4-974-003-01 GEAR (B)
109 1-660-965-11 PC BOARD, SLIDE FLEXIBLE
! 110 X-4947-828-1 OPTICAL PICK-UP (DAX-01C)
111 4-972-165-01 RACK
M901 A-3304-989-A MOTOR ASSY, TURN TABLE
M902 A-3303-403-A MOTOR ASSY, SLED
S901 1-571-099-21 SWITCH (1 KEY)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
To Next Page
