Getting Started
21
GB

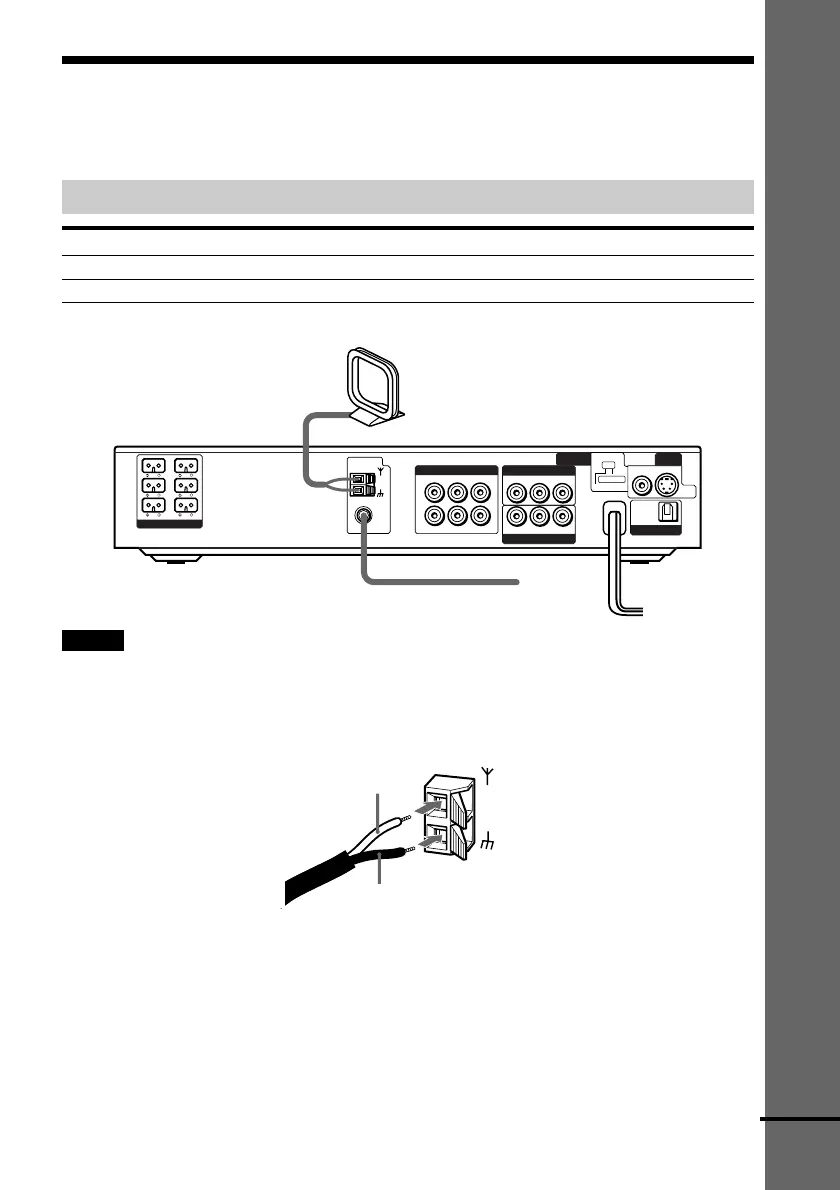

Step 2: Antenna Hookups
Connect the supplied AM/FM antennas for listening to the radio.
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75Ω COAXIAL terminal
Notes
• To prevent noise pickup, keep the AM loop antenna away from the system and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• When you connect the supplied AM loop antenna, connect the black cord (B) to the U terminal, and the white
cord (A) to the other terminal.
WOOFER 3Ω
IMPEDANCE
USE
EXCEPT
WOOFER 3Ω
VIDEO 1
COMPONENT VIDEO OUT
VIDEO 2
VIDEO 2
MONITOR
OUT
FRONT
R
FRONT
L
REAR
R
REAR
L
CENTER WOOFER
COAXIAL
AUDIO OUT
AUDIO IN
LR
LR
LR
VIDEO OUT
VIDEO IN
VIDEO INAUDIO IN
YP
B
/C
B
P
R
/C
R
AM
FM
75Ω
OPTICAL
DIGITAL
IN
S VIDEOVIDEO
DVD
ONLY
SPEAKER
INTERLACE
SELECTABLE
SCAN SELECT
COMPONENT
VIDEO OUT
AM loop antenna
FM wire antenna
A
B
AM
continued
