Sony DAV-X1V User Manual

11
US
Getting Started – BASIC –
B
This hookup is the basic connection of the system to the speakers and TV. For other TV connections,
see page 23. For other component connection, see page 28.
To accept progressive signals, see page 26.
To obtain the best possible front surround sound, install the speakers in the proper position (page 17),
and use the supplied Setup Disc to determine the ideal speaker positions (page 21).
Refer to the connection diagram below, and read the additional information from 1 to 4 on the
following pages.

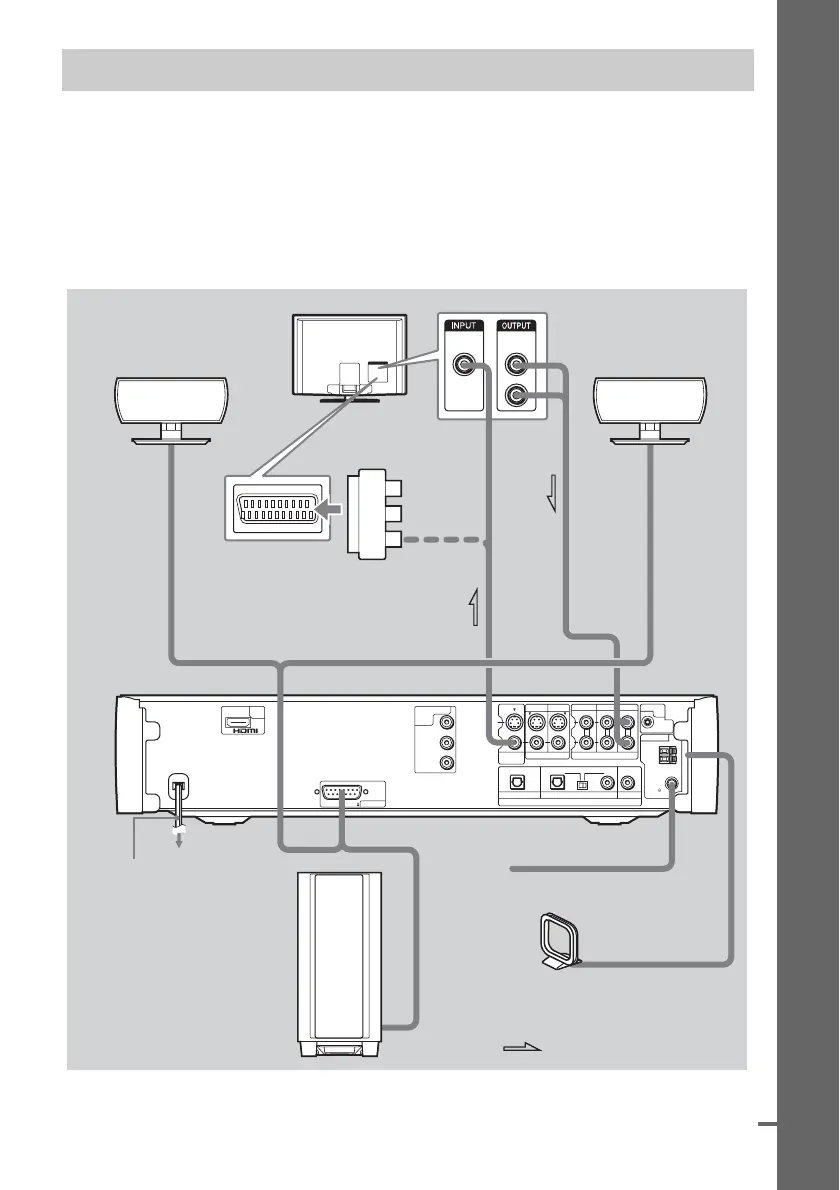

Step 1: Connecting the System and TV
R
AUDIO
OUT
L
VIDEO
IN
VIDEO L/MONO - AUDIO - R
VIDEO1
VIDEO1
COAXIAL COAXIAL
ECM-AC1
75
COAXIAL
OPTICALOPTICAL
VIDEO1
S VIDEOY
P
B/CB
PR/CR
L
R
VIDEO
AUDIO IN
A.CAL
MIC
DIGITAL IN
ANTENNA
HDMI
OUT
VIDEO INMONITOR
OUT
COMPONENT
VIDEO
OUT
VIDEO2
VIDEO2
AM
FM
VIDEO2
TV
TV
IMPEDANCE USE 4
SPEAKER
AM loop antenna (aerial)
Subwoofer
AC power cord
(mains lead)
FM wire antenna (aerial)
TV
Front speaker (R)
Front speaker (L)
A
B
For European models (for the TV that
has the SCART (EURO AV) jack)
For details, see page 14.
Conversion connector
: Signal flow
continued

Sony DAV-X1V Specifications

Power

power requirements	AC230V, 50Hz
power consumption (operation)	165W
power consumption (standby)	Less than 0.3W

Inputs and Outputs

coaxial audio digital inputs	2 (Rear)
component video outputs	1 (Rear)
composite video inputs	2 (Rear)
composite video outputs	1 (Rear)
hdmi connection outputs	1 (Rear)
optical audio inputs	2 (Rear)
s-video inputs	2 (Rear)
s-video outputs	1 (Rear)
composite audio inputs	3 (Rear)

Tuner

tuner frequency range AM	531 - 1, 602 kHz
tuner frequency range FM	87.5-108.0 MHz
station presets	10 AM, 20 FM
tuner type	AM/FM

Weight and Dimensions

subwoofer dimensions	205 x 440 x 400 mm
subwoofer weight	9.3 kg
