Sony DAV-X1V User Manual

Additional Information
95
US

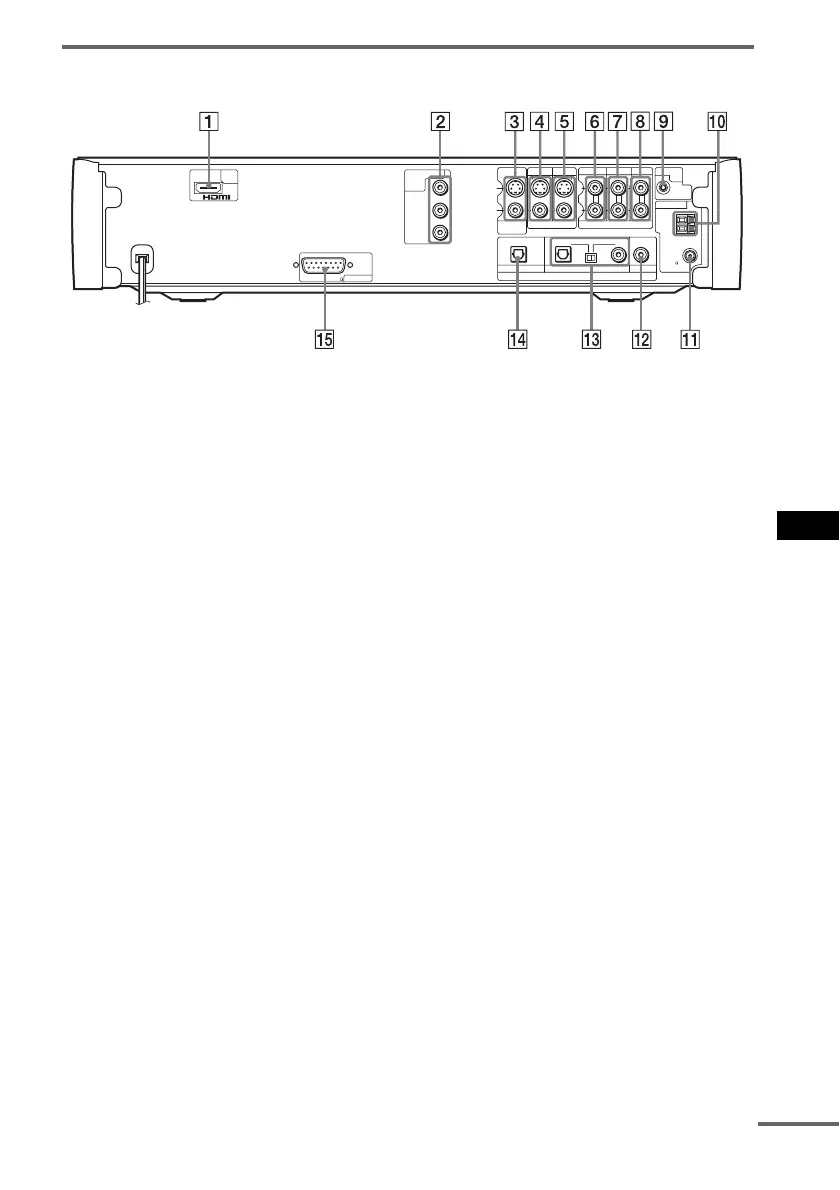

Rear panel
A HDMI OUT jack (23)
B COMPONENT VIDEO OUT jacks (23)
C MONITOR OUT (S VIDEO/VIDEO) jacks
(23)
D VIDEO1 (VIDEO IN, S VIDEO/VIDEO)
jacks (28)
E VIDEO2 (VIDEO IN, S VIDEO/VIDEO)
jacks (28)
F VIDEO1 (AUDIO IN L/R) jacks (28)
G VIDEO2 (AUDIO IN L/R) jacks (28)
H TV (AUDIO IN L/R) jacks (11)
I A.CAL MIC jack (19, 73)
J AM terminal (11)
K FM 75Ω COAXIAL jack (11)
L VIDEO2 (DIGITAL IN COAXIAL) jack
(28)
M VIDEO1 (DIGITAL IN COAXIAL/
OPTICAL) jacks (28)
N TV (DIGITAL IN OPTICAL) jack (23)
O SPEAKER jacks (11)
VIDEO1
VIDEO1
COAXIAL COAXIAL
ECM-AC1
75
COAXIAL
OPTICALOPTICAL
VIDEO1
S VIDEOY
P
B/CB
PR/CR
L
R
VIDEO
AUDIO IN
A.CAL
MIC
DIGITAL IN
ANTENNA
HDMI
OUT
VIDEO INMONITOR
OUT
COMPONENT
VIDEO
OUT
VIDEO2
VIDEO2
AM
FM
VIDEO2
TV
TV
IMPEDANCE USE 4
SPEAKER
continued

Sony DAV-X1V Specifications

Power

power requirements	AC230V, 50Hz
power consumption (operation)	165W
power consumption (standby)	Less than 0.3W

Inputs and Outputs

coaxial audio digital inputs	2 (Rear)
component video outputs	1 (Rear)
composite video inputs	2 (Rear)
composite video outputs	1 (Rear)
hdmi connection outputs	1 (Rear)
optical audio inputs	2 (Rear)
s-video inputs	2 (Rear)
s-video outputs	1 (Rear)
composite audio inputs	3 (Rear)

Tuner

tuner frequency range AM	531 - 1, 602 kHz
tuner frequency range FM	87.5-108.0 MHz
station presets	10 AM, 20 FM
tuner type	AM/FM

Weight and Dimensions

subwoofer dimensions	205 x 440 x 400 mm
subwoofer weight	9.3 kg
