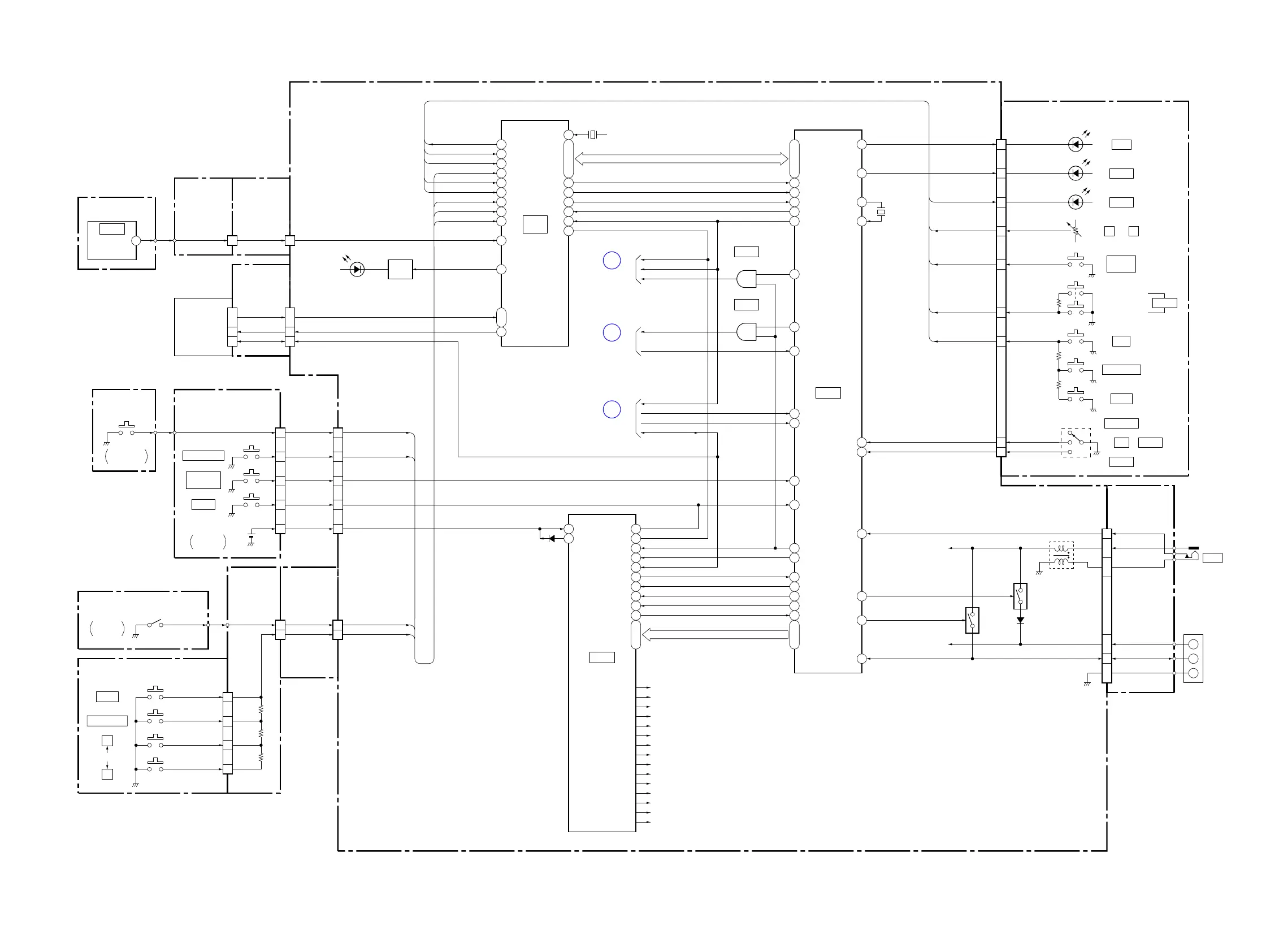

3-5. OVERALL BLOCK DIAGRAM (5/5)
( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
CN6001
(2/2)
CN1010
(2/2)
FP-575
FLEXIBLE
BOARD
(2/2)
IR_LED_ON
XSYS_RST
CAM_DD_ON
16
FR-262 BOARD
MS-346
BOARD
(2/2)
CONTROL SWITCH BLOCK
(PS22100)
FP-570
FLEXIBLE
BOARD
VC-484 BOARD (5/5)
SIRCS_SIG
OVERALL (1/5)
(PAGE 3-1)
1
OVERALL (2/5)
(PAGE 3-2)
2
OVERALL (4/5)
(PAGE 3-4)
4
D003
STILL
XPHOTO_LED
4
CN1002
10
S6003
WIDE SELECT
W T
y
RV002
(ZOOM)
S001
S002
(PHOTO FREEZE)
START/
STOP
1
CN7402
(2/2)
S/S
S003
(PHOTO REC)
5
2
15
D002
MOVIE
XCAM_LED
14
D001
CHG
J001
DC IN
ON POWER
MODE
OFF (CHG)
r
r
XCHARGE_LED
ACV_UNREG
ACV_GND
BATT/XEXT
13
KEY_AD1
7
XPOWER_SW
8
CN1009
12
19
7 - 11
13 - 1720 - 24 1 - 5
XMODE_SW
ZOOM_VR_AD
XPHOTO_LED
START/STOP
XCAM_LED
XCHARGE_LED
KEY_AD1
KEY_AD2
XPOWER_SW
XMODE_SW
ZOOM_VR_AD
Q1003
LED
DRIVE
1
REMOTE
COMMANDER
RECEIVER
IC6501
HI CONTROL
(14/17)
IC5101
DC CONTROL,
RESET,
LANC DRIVE
(16/17)
IC4901
D1012
(NIGHTSHOT)
S7601
PANEL
OPEN/CLOSE
+
−
BH001
BATTERY
TERMINAL
C
BATT_UNREG
BATT_SIG
BATT_GND
BATT_SIG
BATT/XEXT
INIT_CHARGE_ON
SHOE_UNREG,
DRV_UNREG,
MT_BL_UNREG,
VTR2_UNREG,
VTR_UNREG
EP_4.6V, AU_4.6V, A_4.6V
MT_5.0V, DRV_MT_5.0V
EP_2.8V, D_2.8V, AU_2.8V, A_2.8V
DRV_MT_4.3V
D_2.5V, A_2.5V
D_1.2V, A_1.2V
DRV_A_3.9V
D_1.8V, D_1.8V (SD_1.8V)
D_3.3V
CAM_-7.5V
CAM_15V
EP_8.5V
VOUT
LANC_DC
EVER_3.0V
BATT_UNREG
LANC_SIG
LANC_SIG
LANC_SIG
LANC_SIG
HOT SHOE
(2/2)
HOTSHOE_ID1, HOTSHOE_ID2
FP-572
FLEXIBLE
BOARD
(2/2)
CN1006
(2/2)
11
7, 10
7, 10
12
11
12
CONTROL KEY BLOCK
(SB22200)
RV-002 BOARD
PD-315
BOARD
(2/2)
FP-573
FLEXIBLE
BOARD
(2/2)
OC-002
BOARD
CK-171 BOARD
(2/2)
2
5
4
3
CN6302
CN6301
(2/2)
CN3702
(2/2)
2ND_ZOOM (T)
2ND_ZOOM (W)
2ND_S/S_SW
Home
13
18
5
9
6
NOR_REV
KEY_AD0
PANEL_NOR/REV
BATT_LI_3V
AH35
AM34, AM33
A22, B22, C22, D22
K5, J4, L5, H3G1, D1, D2
D4, B3, C3
A8
KEY_AD3
START/STOP
S001
11
RESET
S6001
10
FR_XRESET
PANEL_O/C
XBATT_VIEW XBATT_VIEW
BATT_LI_3V
FR_XRESET
DISP/
BATT INFO
S6002
HOME
S004
S002
S003
(ZOOM)
W
T
18
13
BT901
LITHIUM
BATTERY
4
7
XFLASH_RST
B8
F2
B11
E10
E9
C7
F10
FAST_CHARGE
E11
A4
F8
J5
C8
B4
F11
B6
B2
C5
H9
G11
A2
XEJECT_SW
B3
HOTSHOE_ID1,
HOTSHOE_ID2
KEY_AD0
AH34
KEY_AD1
AJ35
KEY_AD2
AH33
KEY_AD3
H25
PANEL_NOR/REV
AJ33
ZOOM_VR_AD
N3
AA1
G2
AM7
EXT_STROBEEXT_STROBE
Y3
SIRCS_SIGSIRCS_SIG
D30
AK3
XPHOTO_LED
H26
START/STOP
G24
STABLE_RUN
V2 E9
WD_DIS
G23
D9
XHOT_STBY
VTR_DD_ON
CAM_DD_ON
K2
D9
FR_XRESET
B10D10
LANC_IN
C10D11
LANC_OUT
H2G9
XLANC_ON
C1
C10
XLANC_PWR_ON
A7E8
BATT_IN
C11
K5
1.8/3VCTRL
C23 E10
8
2
3
XMS_IN
XLANC_JACK_IN
BOOT_MODE_PORT0
1
3
4
CAM_DD_ON
XSYS_RST
XSYS_RST
IC5104
(14/17)
IC5102
(14/17)
XFR_SCK, FR_SI, FR_SO, XCS_EX
FR_EVER_SO, FR_EVER_SCK, XCS_DD
XIC_4201_RESET
2
1
4
LF4601
Q4603,
Q4604
D4601
Q4608,
Q4610
D4902
PANEL_O/C
L2
L3
X5101
32.768kHz
IC2101
(5/5)
CPU
(3/17 - 5/17)
05
S7502
PANEL
REVERSE
S005
KEY_AD2
BACK LIGHT
N
S004
EASY
S006
CN1003
(2/2)
X2101
12MHz
A_2.8V
B3
