DCR-DVD306E/DVD308/DVD308E/DVD708/DVD708E_L2
FP-569 (1 layer), FP-570 (1 layer)
: Uses unleaded solder.
FP-569, FP-570
BH001
BATTERY
TERMINAL
J001
1 24
C
123
DC IN
1
24
Note: BH001 and J001 are not included in
FP-570 flexible board.

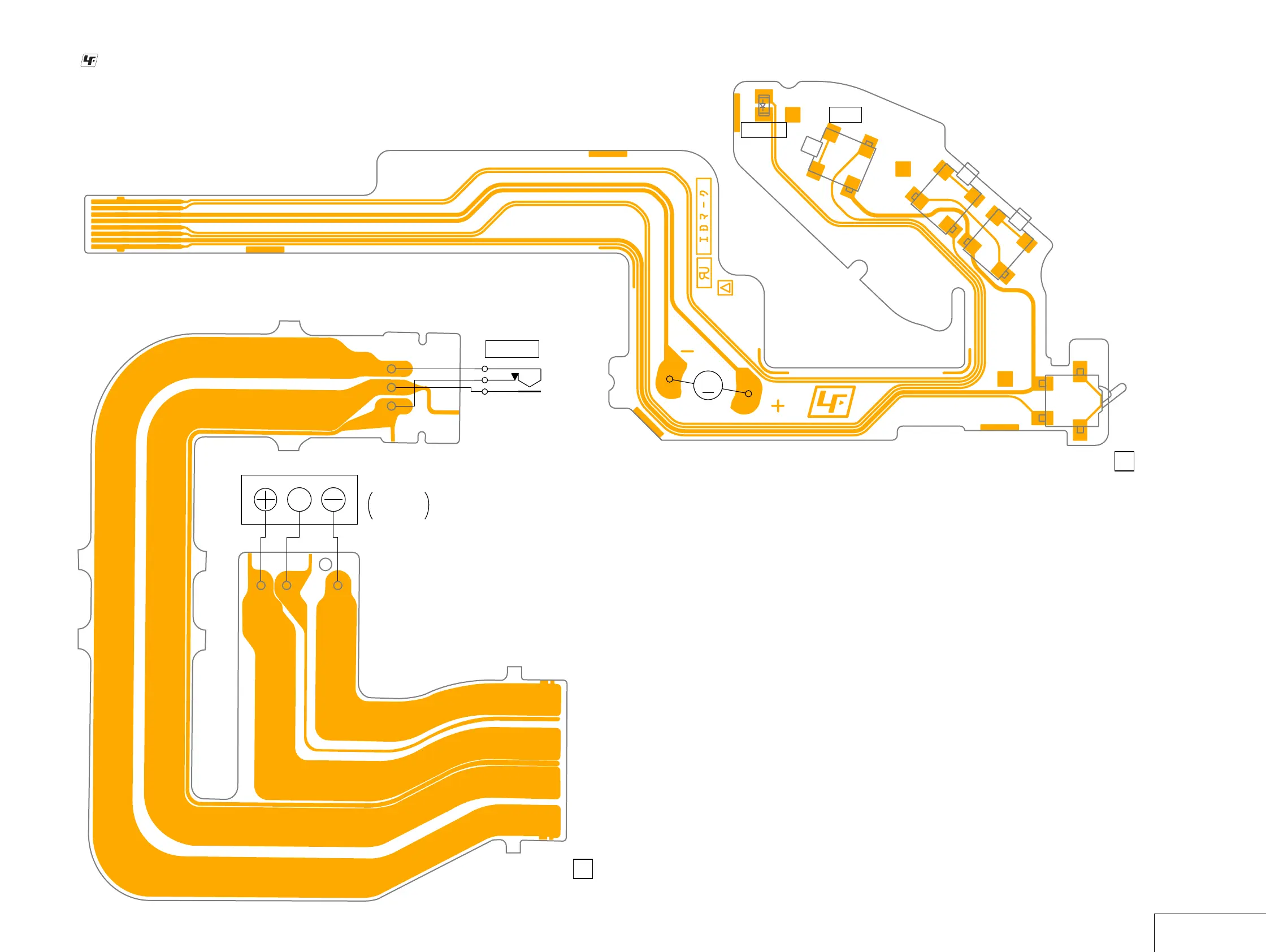

FP-570 FLEXIBLE BOARD
05
111-871-284-
>PI<
FP-569
D5691
S5691
S5692
S5693
S5694
ACCESS
OPEN
S5692, S5693
(LID OPEN DETECT)
S5694
(EJECT DETECT)
2
1
4
3
2
1
4
3
2
1
4
3
1
2
LND001
1
8
LND002
3
4
M
M903
MOTOR UNIT
(GEARD MOTOR)
FP-569 FLEXIBLE BOARD
05
111-871-283-
