DCR-PC53E/PC55/PC55E
HELP
HELP

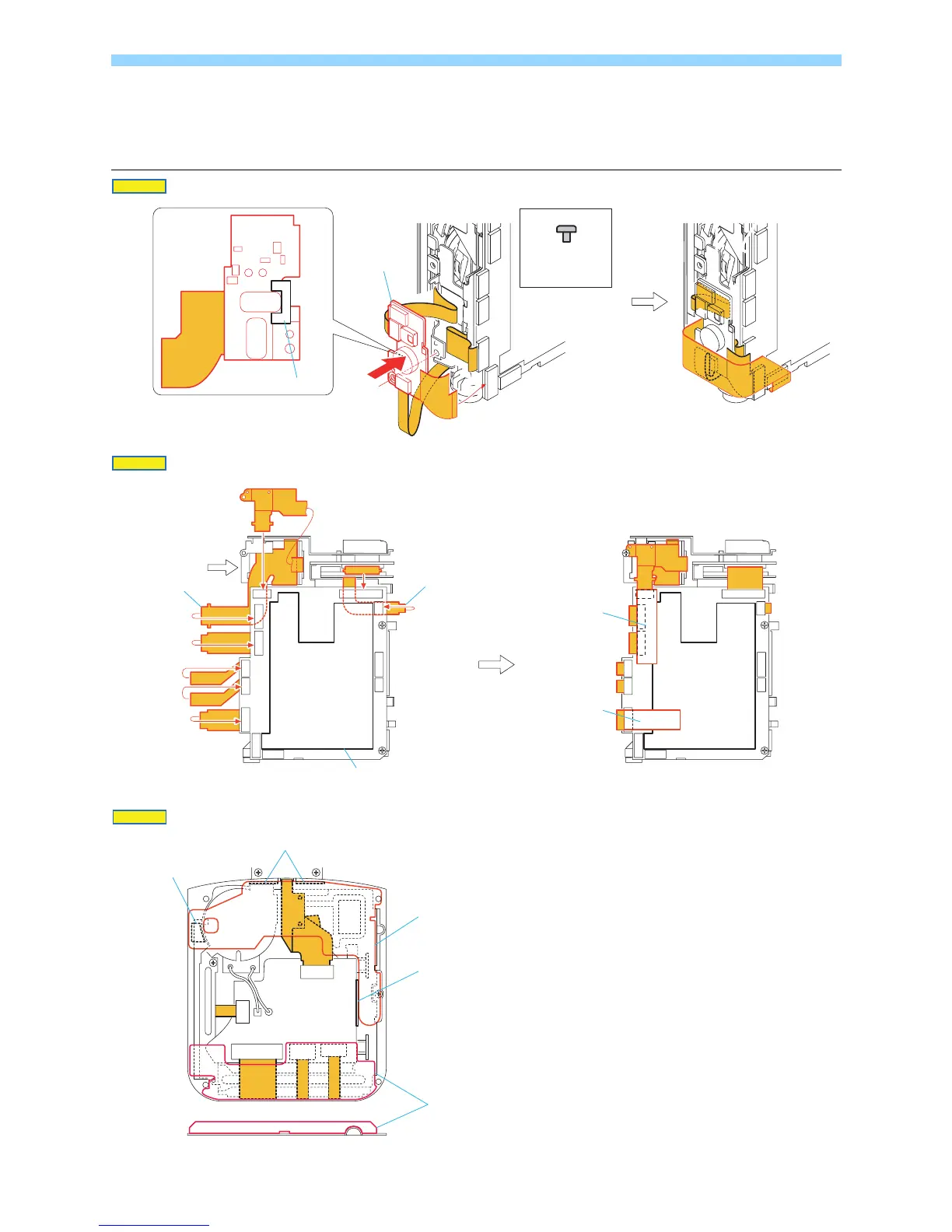

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
VC-379
Lens
FP-052 flexible
board
Lens flexible sheet
MS tape
Lens device
F
FB-223
Gyro cushion
Fuse replacement caution label
Interception sheet (upper)
LCD hinge assembly
Easy tally
Projection
VC-379
Interception sheet (lower)
HELP 01
HELP 02
HELP 03
Screw
M1.7x2.5
3-057-082-01
F
