DCR-PC53E/PC55/PC55E
For Printed Wiring Board
• Refer to page 4-55 for common note for printed wiring board.
• : Uses unleaded solder.
4-61 4-62

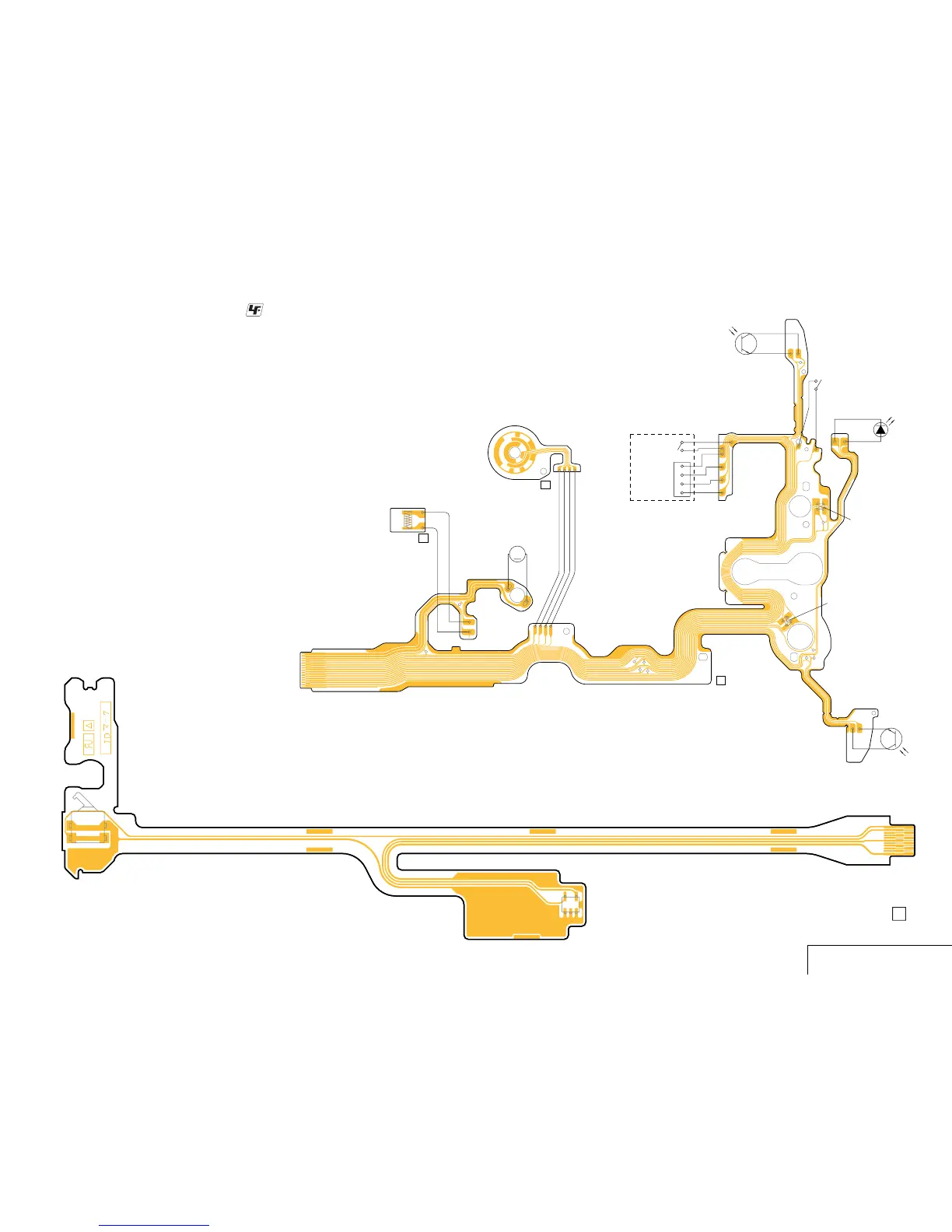

FP-222/FP-228/FP-031/FP-032
FP-222
>PI<
FP-222 BOARD
11
1-864-929-
(PANEL REVERS)
(PANEL O/C SENSOR)
13
45
1
23
4
1
11
S221
IC221
LND221
LND222
LND223
LND224
LND225
LND226
LND227
LND228
LND229
LND230
LND231
FLEXIBLE BOARD
FP-228
SENSOR
DEW
1-677-049- 12
(CC DOWN)
(TAPE LED)
LED9001
29
1
14
MOTOR
LOADING
Solder
Dilect
Dilect Solder
M9002
SWITCH
MODE
S9003
M
1-864-865-
FLEXIBLE BOARD
FP-032
FLEXIBLE BOARD
FP-031
SENSOR
TAPE TOP
SENSOR
TAPE END
1-864-871-
PROOF
REC
4 PIN
CONNECTOR
MIC9002
SENSOR
H9001
H9002
GND
GND
VCC
VCC
-
-
+
+
S9001
Q9001
(
(
(
(
Q9002
S9002
(
(
(
(
(
(
S REEL
SENSOR
T REEL
12
12
