2-6
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

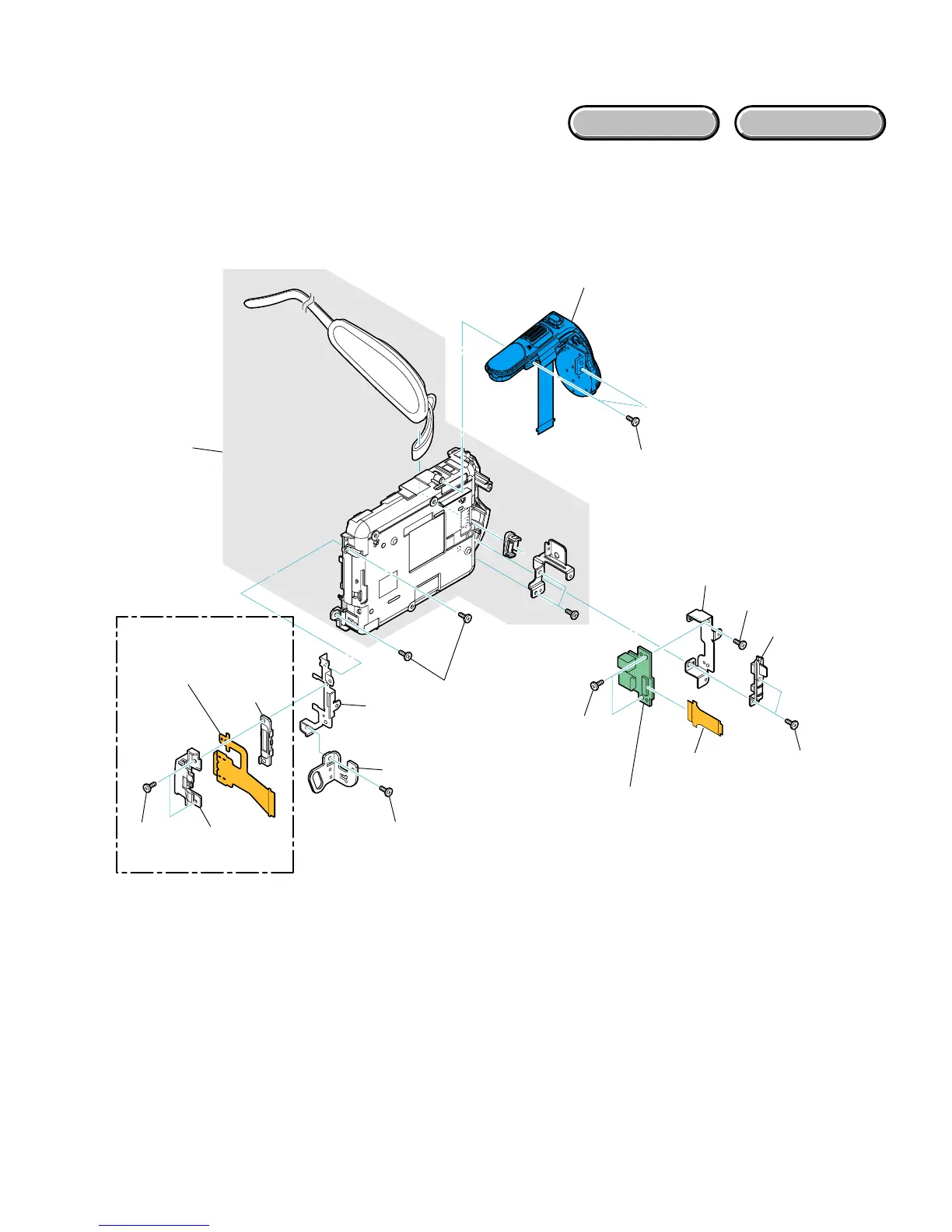

2-2-4. CABINET (L) SECTION
Follow the disassembly in the numerical order given.
1 JK-366 Board (1-1 to 1-6)
2 Control Switch Block (PS28100) (2-1)
3 FP-855 Flexible Board (3-1 to 3-8) (HDR-SR10/SR10D/SR10E)
EXPLODED VIEW
HARDWARE LIST
1-1(#11)
1-3(#11)
1-4(#3)
1-2
1 JK-366 Board
HDR-SR10/SR10D/SR10E
1-5
1-6
2-1
(#11)
2 Control Switch Block
(PS28100)
3 FP-855
Flexible Board
3-2(#14)
3-1(#14)
3-8
3-4
3-5 (#2)
3-3
3-6
3-7
