Sony DCR-SR210E - Overall Section

2-3
DCR-SR210E/SR220/SR220D/SR220E/
HDR-SR10/SR10D/SR10E_L2

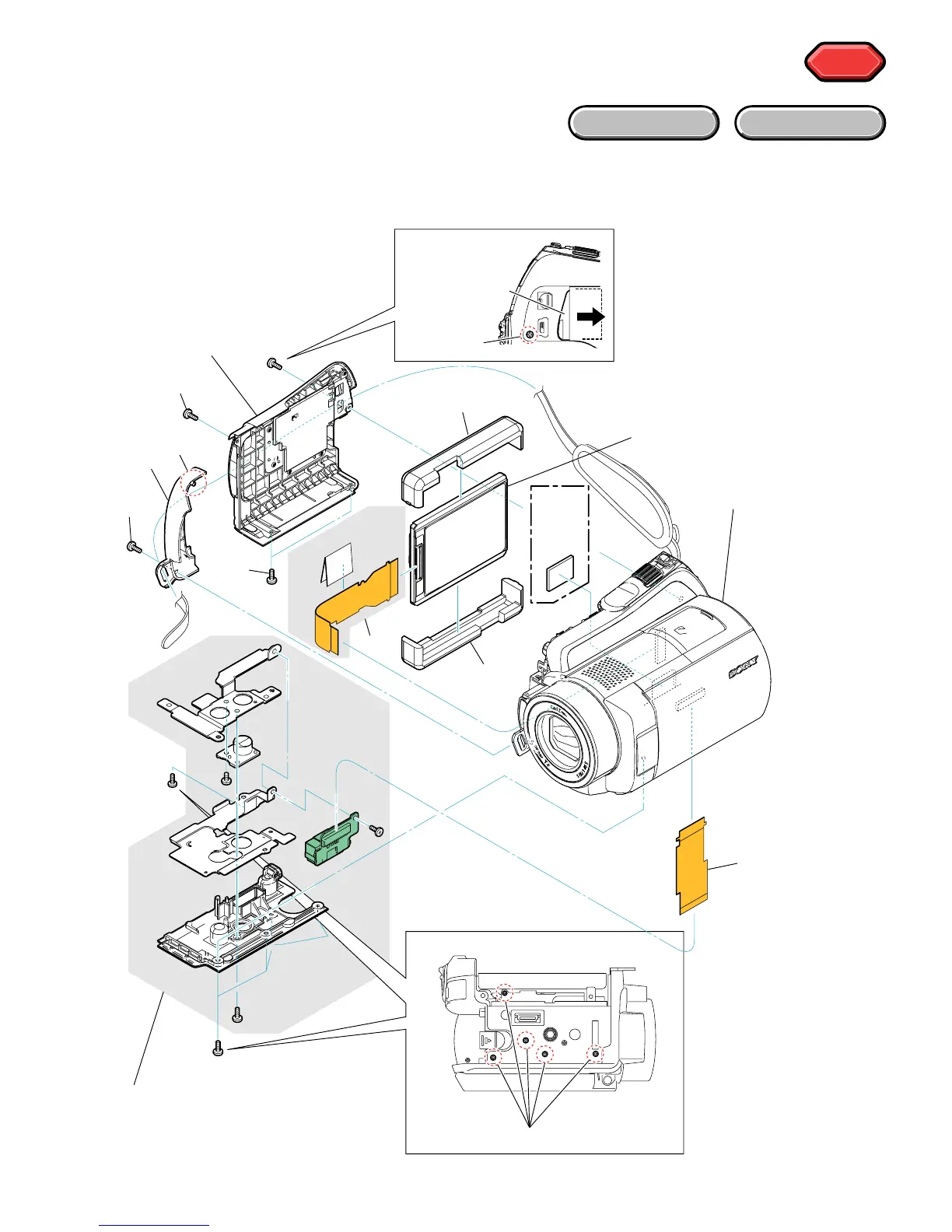

2-2. DISASSEMBLY
2-2-1. OVERALL SECTION-1
Follow the disassembly in the numerical order given.
1 Cabinet (G) Assy (1-1 to 1-7)
2 HDD (2-1 to 2-3)
3 Bottom Cabinet Block (3-1 to 3-2)
HELP
HELP
EXPLODED VIEW
HARDWARE LIST
1 Cabinet (G)
Assy
Overall Section-2
(See Page 2-4)
1-5 (#2)
1-4
(#2)
1-1
(#2)
1-2
(Claw)
1-7 (#2)
1-6
(Slide the
Jack Cover(G))
2 HDD
2-3
2-1
2-2
3 Bottom Cabinet Block
DCR-
SR210E/
SR220/
SR220D/
SR220E
1-3
3-1 (#2)
3-2
