2-2
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2
2-1. DISASSEMBLY
2-1-1. OVERALL SECTION
HELP
HELP

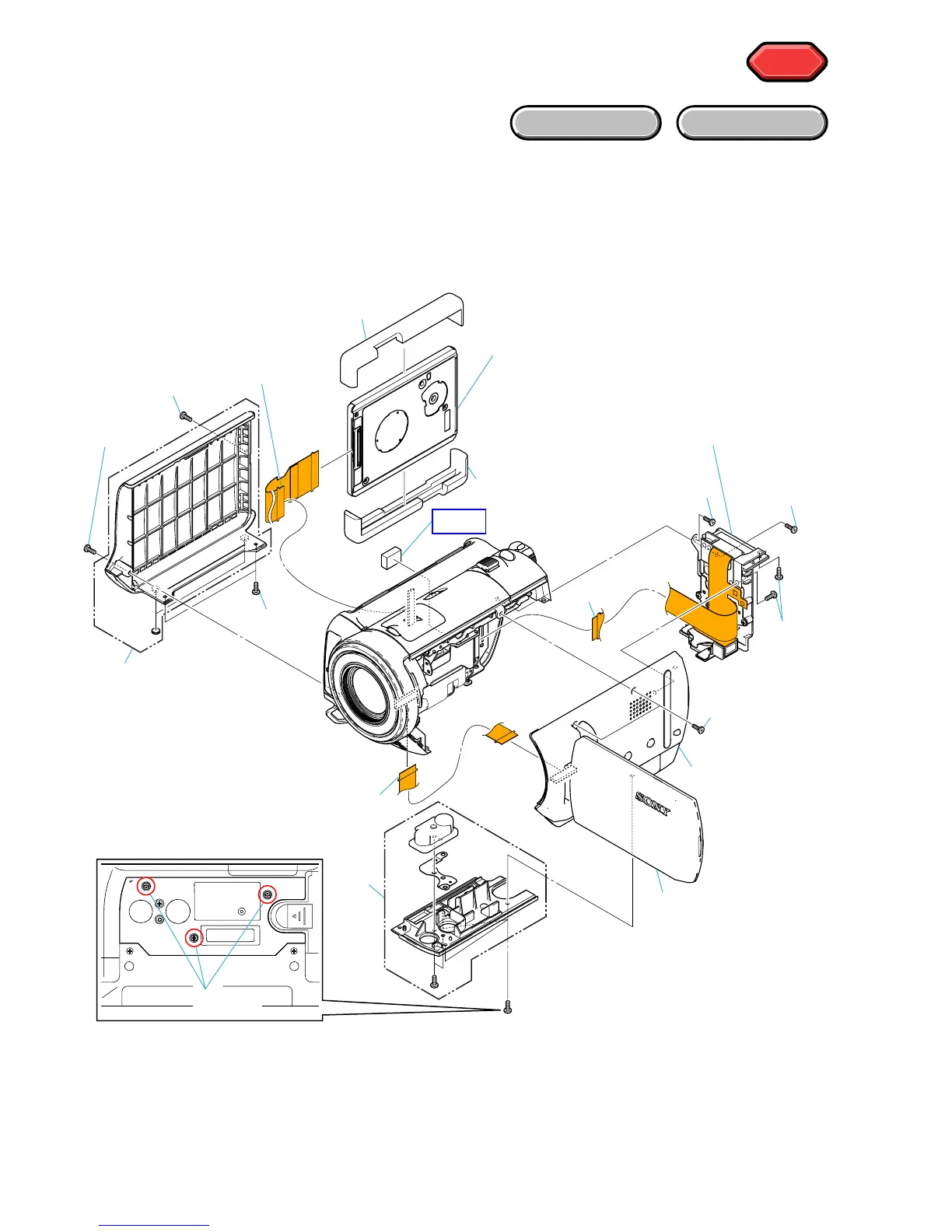

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 HDD (1-1 to 1-7)
2 Cabinet (R) Section (2-1 to 2-6)
3 BT Panel Block (3-1 to 3-3)
3-1
(#12)
3-3
1 HDD
1-4
1-1 (#2)
2-1 (#2)
2-3
(Open the LCD panel)
2 Cabinet
(R) Section
3 BT Panel Block
1-5
1-6
1-3 (#2)
1-7
1-2 (#2)
2-2
2-6
3-2 (#12)
2-4 (#2)
2-5
(#2)
