2-3
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2
2-1-2. CABINET (L) SECTION

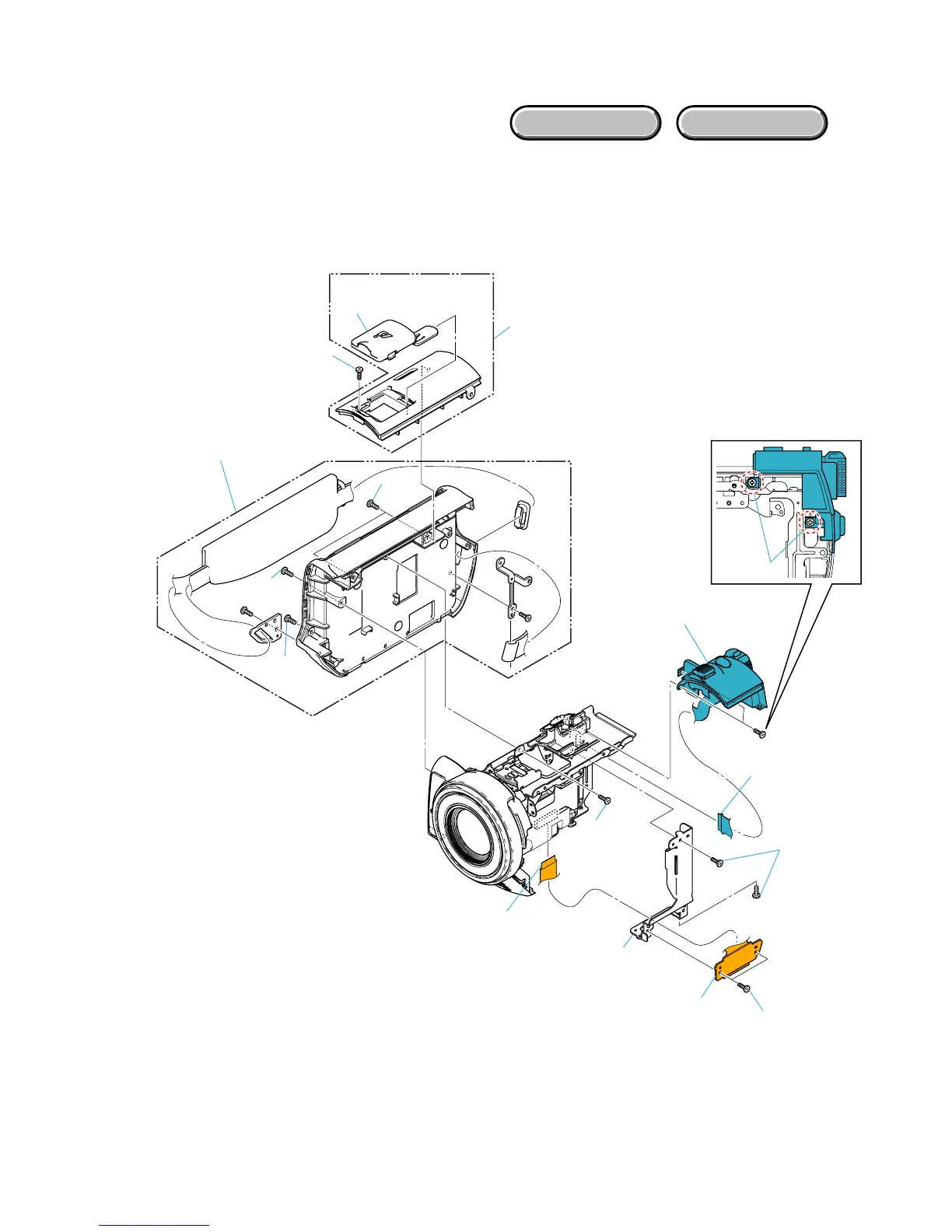

EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 FP-518 Flexible Board (1-1 to 1-4)
2 Control Switch Block (2-1 to 2-6)
3 Cabinet (L) Block (3-1 to 3-3)
3-2
(#2)
3-3
(#11)
1 FP-518 Flexible
Board
1-2
2 Control
Switch Block
3 Cabinet (L) Block
1-1 (#3)
1-3 (#3)
1-4
3-1
(#12)
2-2 (#2)
2-3
(#2)
2-6 (#12)
2-4
(Lift straight)
2-5
2-1
(Open the shoe cover)
