2-4
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2

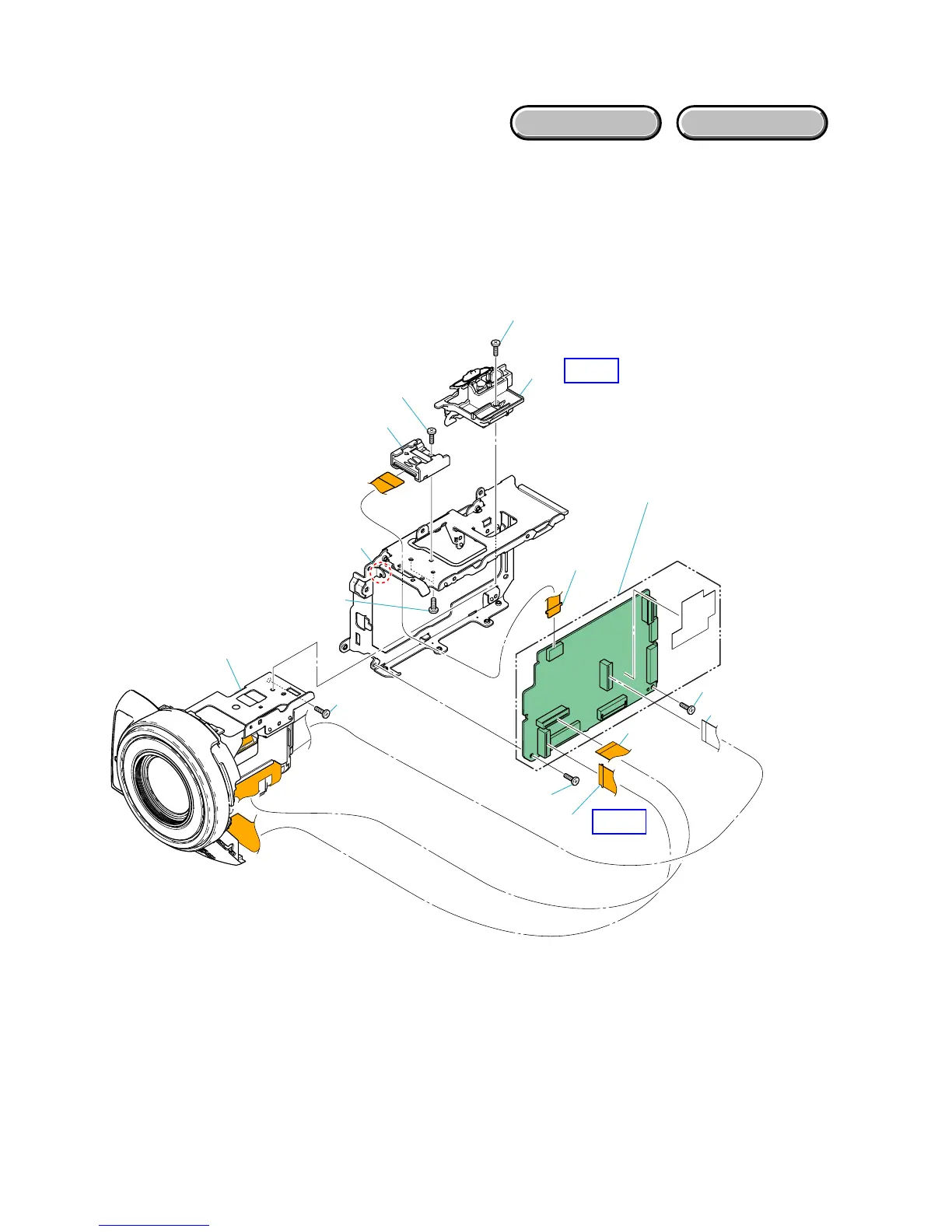

2-1-3. MAIN FRAME SECTION
EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 Front Cabinet Section (1-1 to 1-6)
2 VC-463 Board (2-1 to 2-7)
1 Front Cabinet
Section
1-2
2 VC-463 Board
1-1 (#1)
1-5
1-3
1-4
2-5 (#3)
2-4
(#3)
2-7
2-6 (Claw)
2-1 (#1)
2-3
2-2 (#3)
1-6 (#3)
