2-5
DCR-SR50E/SR60/SR60E/SR70E/SR80/SR80E_L2

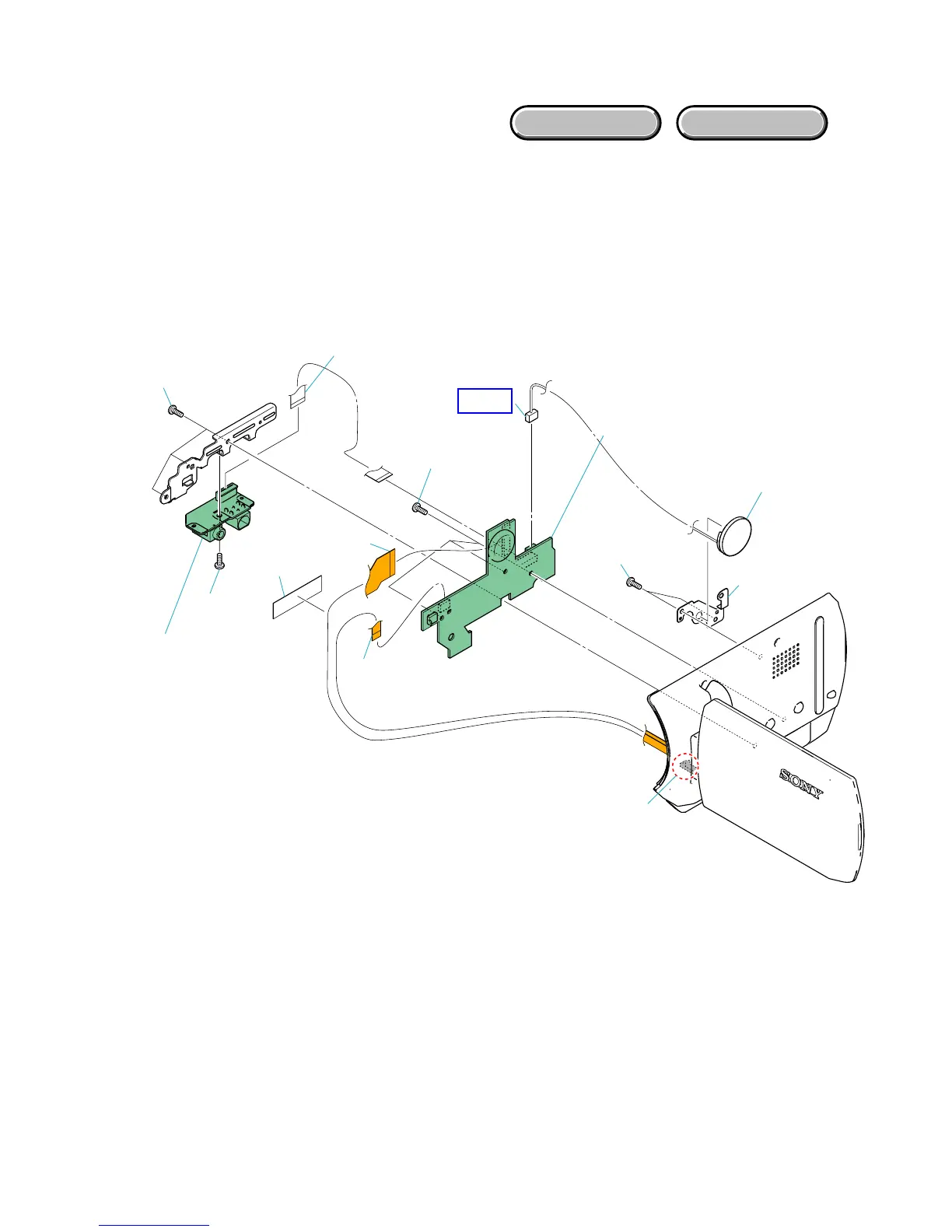

2-1-4. CABINET (R) SECTION-1
EXPLODED VIEW
HARDWARE LIST
Follow the disassembly in the numerical order given.
1 JK-317 Board (1-1 to 1-3)
2 CK-166 Board (2-1 to 2-6)
3 Loud Speaker (3-1 to 3-2)
3-2
1 JK-317 Board
1-1
2 CK-166 Board
3 Loud Speaker
1-2 (#5)
1-3 (#3)
3-1 (#5)
2-1
2-5 (#5)
2-6 (Claw)
2-2
2-3
2-4
