Sony DCR-SR58E - Page 10

DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2
2-5
Ref. No. Part No. Description Ref. No. Part No. Description
101 1-487-535-11 SWITCH BLOCK, CONTROL (PS32700)
102 A-1756-660-A PANEL ASSY (SERVICE ,S), BT (SERVICE)
(SR58E/SR68 (SILVER)/SR68E (SILVER)/SR78E/
SR88/SR88E)
102 A-1756-661-A PANEL ASSY (SERVICE ,R), BT
(SERVICE) (SR68 (RED)/SR68E (RED))
102 A-1756-662-A PANEL ASSY (SERVICE ,L), BT (SERVICE) (SR68
(BLUE)/SR68E (BLUE))
103 4-163-474-01 GASKET (MS (327))
104 A-1750-997-A MS-432 BOARD, COMPLETE
105 1-880-503-11 FP-1216 FLEXIBLE BOARD
106 A-1756-647-A CABINET ASSY (SERVICE ,S), MS (SERVICE)
(SR58E/SR68 (SILVER)/SR68E (SILVER)/SR78E/
SR88/SR88E)
106 A-1756-648-A CABINET ASSY (SERVICE ,R), MS (SERVICE)
(SR68 (RED)/SR68E (RED))
106 A-1756-649-A CABINET ASSY (SERVICE ,L), MS (SERVICE)
(SR68 (BLUE)/SR68E (BLUE))
* 107 4-173-810-01 PROTECTOR SHEET (327)
* 108 4-173-813-01 SHEET (327), (MS)
BH7301 1-756-615-61 HOLDER, BATTERY (Note 2)
 BT7301 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note 2)
#2 2-635-562-31 SCREW (M1.7) (Note 1)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#10 2-599-475-31 SCREW (M1.7) (Note 1)
#11 3-078-890-11 SCREW, TAPPING
#12 3-080-204-21 SCREW, TAPPING, P2

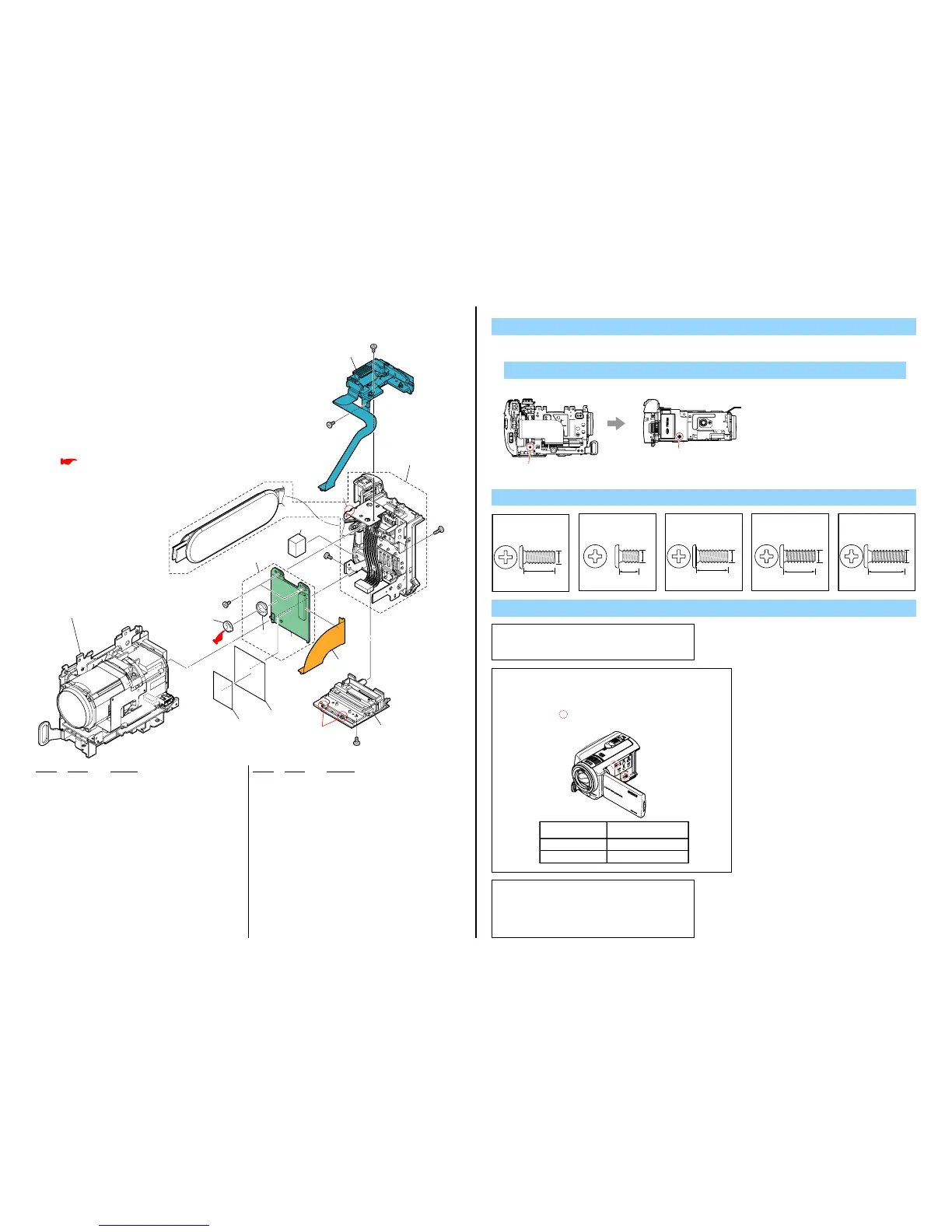

2-1-3. BT PANEL SECTION
ns: not supplied
MS-432
#2
#11
#1
2
#3
: BT7301 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-9)
8 102
103
104
101
BT7301
BH7301
ns
Lens/Chassis Section
(See page 2-6)
106
107
108
105
#2
#10
#2
#10
(Note 1)
(Claw)
(Boss)
(Note 1)
(Note 2)
(Note 2)
1. Remove to numerical order (8) in the left figure.
DISASSEMBLY
8 #2 / #10 X 2
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#2/#10
#2/#10
Left View Bottom View
Note
Note 2: Replace the battery holder (BH7301) together when
replacing the lithium storage battery (BT7301) on the
MS-432 board.
(The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder
first and attach new lithium storage battery next.
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
le 2-1
Note 1:
THE COMBINATION OF CABINET’S
COLOR AND SCREW
Screw's
Ref. No. (Parts Color.)
#10 (Silver) SILVER
#2 (Black) RED/BLUE
Cabinet's Color
Ta b
The screw pointed is different according to the cabinet's color.
For the combination of cabinet's color and screw, please refer to Table 2-1.
#10: M1.7 X 4.0
(Silver)
2-599-475-31
4.0
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
Caution :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
