5-4
DCR-TRV22/TRV22E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

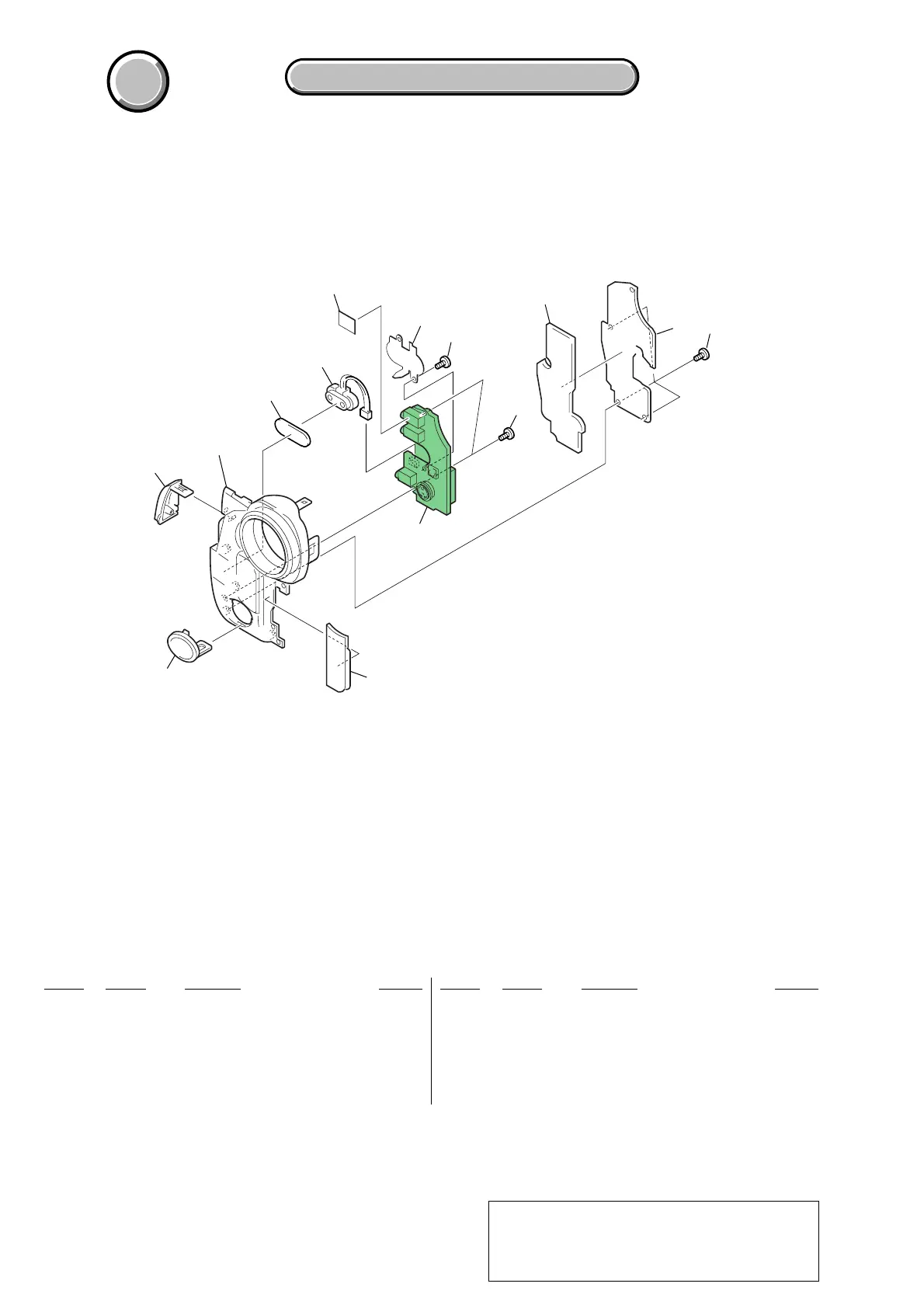

5-1-2. F PANEL SECTION
ns
51
52
53
54
56
55
57
57
57
58
59
MIC901
60
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-080-516-01 COVER, S TERMINAL
52 3-080-402-01 PLATE, NAME (TRV22)
52 3-080-402-41 PLATE, NAME (TRV22E)
53 3-080-573-01 COVER (F), JACK
54 X-3953-213-1 PANEL (395) ASSY, F
55 A-7013-530-A MA-421 (MSARI) BOARD, COMPLETE
56 3-080-517-01 RETAINER, MICROPHONE
57 3-713-791-11 SCREW (M1.7X5), TAPPING, P2
58 3-080-519-01 CUSHION, MA COVER
59 3-080-514-01 COVER, MA
60 CAUTION SHEET, HP
MIC901 1-542-513-11 MICROPHONE
ns : not supplied
CAUTION :
For the parts of 60 : SHEET, HP (3-083-974-01) cut
SHEET (MD), CN (3-075-957-02) into the desired
length and use it.
