Sony DCR-TRV22 - Page 77

5-5
DC-TRV22/TRV22E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

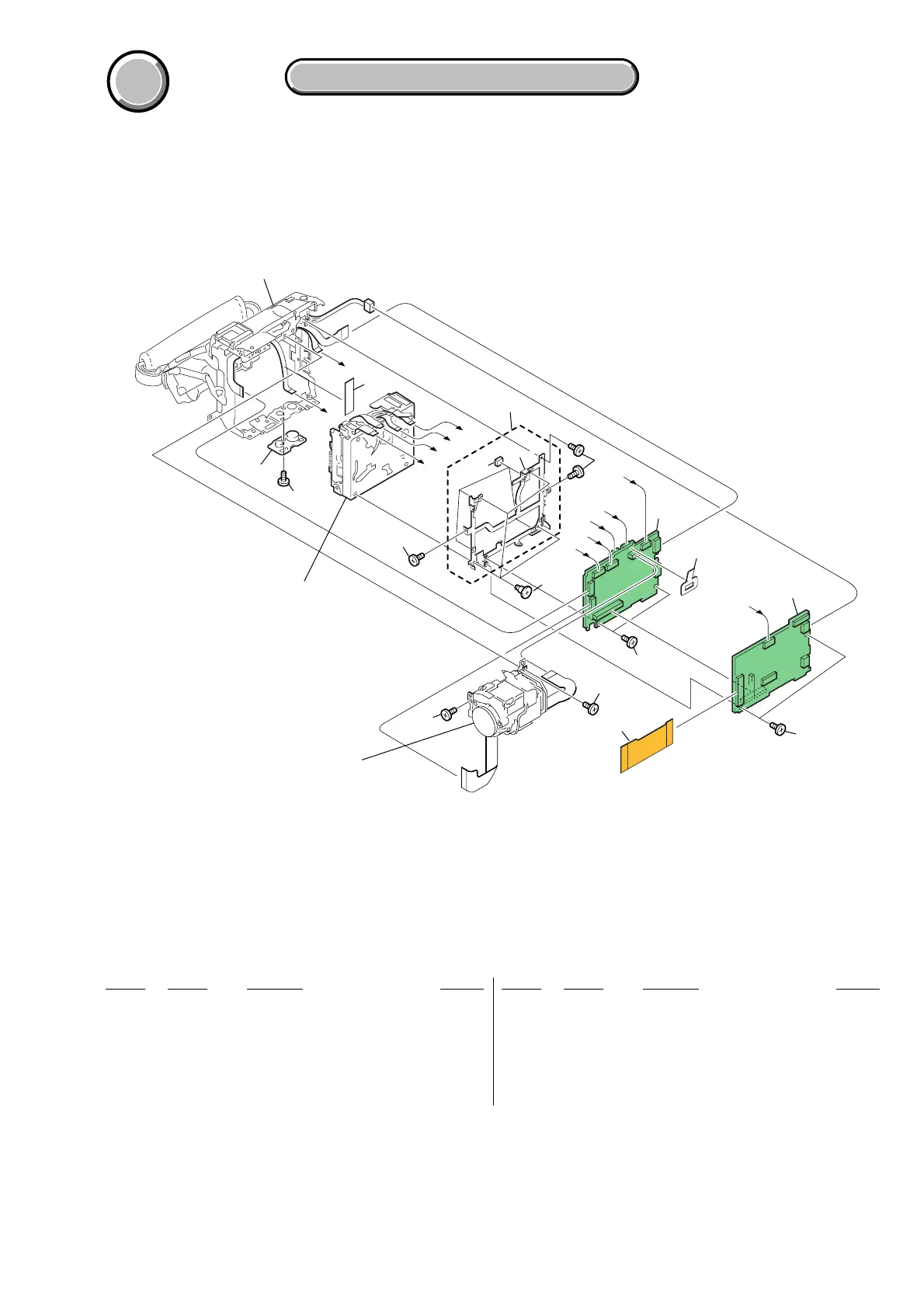

5-1-3. MAIN CHASSIS SECTION
D
C
B
E
A
D
C
B
A
F
E
F
101
102
103
110
104
ns
105
105
105
105
105
106
107
108
105
109
111
Cabinet (L) section
(See page 5-7)
Mechanism deck
(See page 5-11 to 5-13)
Lens section
(See page 5-6)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 3-080-569-01 SCREW
102 3-989-735-81 SCREW (M1.7), LOCK ACE, P2
103 X-3953-112-1 FRAME ASSY, MD
104 3-975-921-01 SHEET, VIBRATION PROOF
105 3-989-735-01 SCREW (M1.7), LOCK ACE, P2
106 3-062-214-01 SCREW (M1.4X1.5)
107 A-7078-607-A VC-312 BOARD, COMPLETE (SERVICE)
108 A-7013-554-A VA-118 (MDF) BOARD, COMPLETE
109 1-687-546-11 FP-621 FLEXIBLE BOARD
110 3-941-343-21 TAPE (A)
111 3-081-787-01 SHEET, RF
ns : not supplied
