Sony DCR-TRV820 - Note for Repair; LCD Type Check

– 8 –

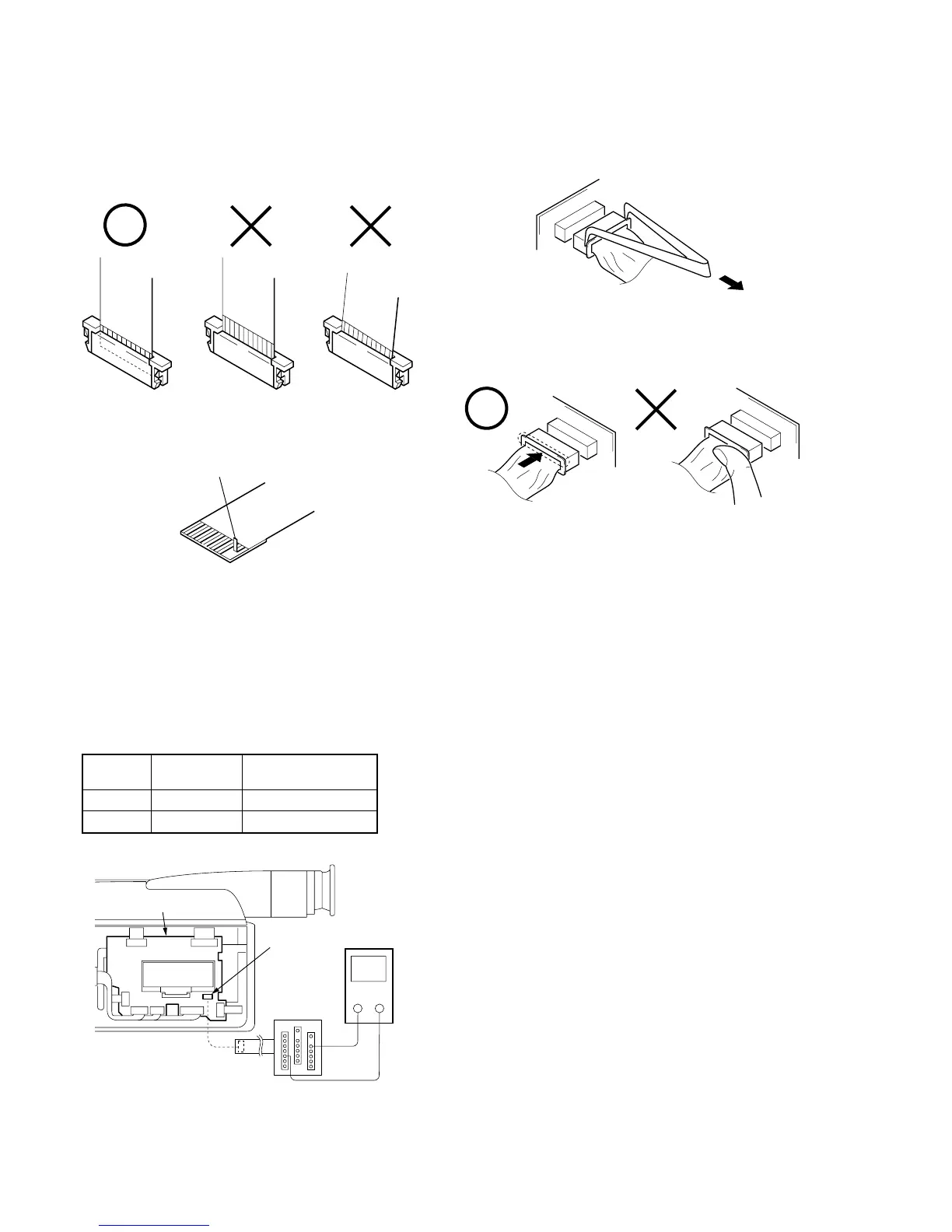

3. NOTE FOR REPAIR
Make sure that the flat cable and flexible board are not cracked of
bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
When remove a connector, don’t pull at wire of connector.
It is possible that a wire is snapped.
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some pieces of
gilt may be left inside)
When installing a connector, don’t press down at wire of connector.
It is possible that a wire is snapped.
4. LCD TYPE CHECK
By measuring the resistor value between Pin 6 of CN5502 and
Pin 0 of CN5502 on PD-118 board, the type of LCD can be dis-
criminated.
Note: About PD-118 board and LCD module, discriminate LCD
type on the machine, and replace the same type.
PD-118 board CN5502
Resistor
LCD type PD board
value
8.2 kΩ TYPE S PD-118 (TYPE S)
10 kΩ TYPE C PD-118 (TYPE C)
Multi CPC jig
(J-6082-311-A)
CN5502
Volt ohm meter
PD-118 board
6 pin
0 pin
